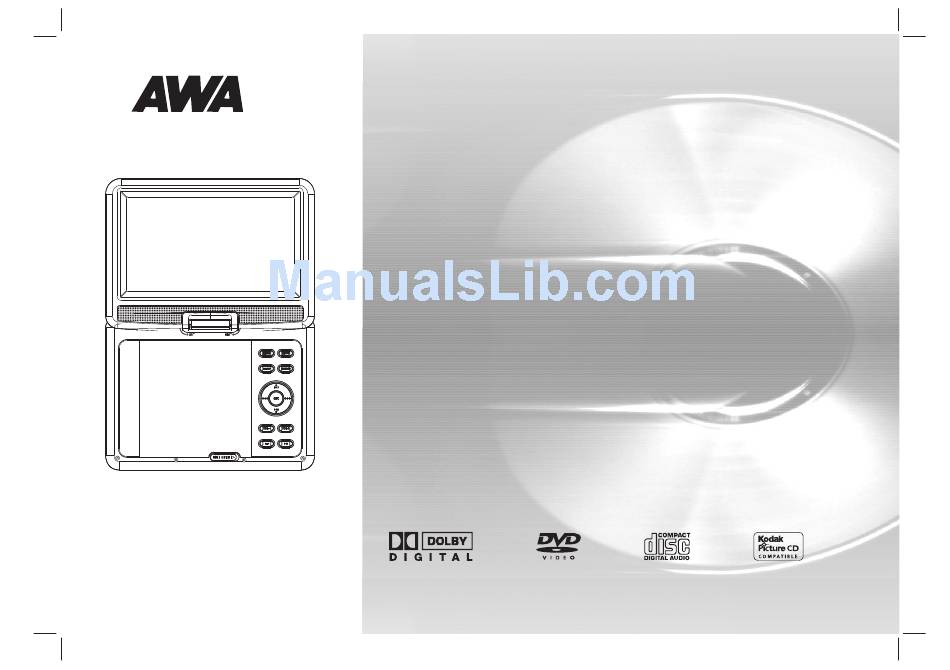

- Page 1 9" (22cm) portable DVD Player with USB and Card Slot USER'S MANUAL PDVD-13609LC Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.
-
Page 2: Table Of Contents
Table of Contents Contents SETUP Menu Setting Table of Contents P6-P8 General Setup Page Safety Precautions P6-P7 Audio Setup Page Video Setup Page Preference Page P7-P8 Identification of Controls P3-P5 Password Setup Page Main Unit Battery Parameters R emote control unit P4-P5 Parameters and specifications T ypes of Playable Discs... -
Page 3: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK Notes on Copyrights: DO NOT OPEN Warning:To reduce the risk of electric shock,do not remove It is forbidden by law to copy, broadcast, show,broadcast via the cover or back of this product.There are no user-serviceable cable, play in public, or rent copyrighted material without parts inside. -
Page 4: Identification Of Controls
Identification of Controls Main Unit 1.TFT screen 8.VOL+ 2.Speakers 9.VOL- 3.SETUP 10. PLAY/PAUSE 4.MODE 5.MENU 11. STOP 6.DVD/SD/USB 12.SD/MMC/MS Select input source,DVD/Card/USB 13.USB 7.UP/DOWN/LEFT/RIGHT select an item in the menu. 14.COAXIAL when playing CD,VCD,DVD,If available 15.Headphone out jacks UP:previous track 16.AV OUT Down:Next track Left:Fast reverse... -
Page 5: Remote Control Unit
Identification of Controls Remote control unit 4.Forward Skip Go to next chapter/ track. GOTO MUTE SD/USB 5.ZOOM : Use ZOOM to enlarge or shrink the video image. 1.Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture. -
Page 6: Types Of Playable Discs
Identification of Controls Remote control unit 21.STEP JPEG :You can press PROGRAM repeatly to select the slide show Press STEP once to pause playback, Form this station, press STEP mode, the are 16 types slide show. to advance one video frame. 9. - Page 7 SETUP Menu Setting General Setup Page Press SETUP button to get the setup menu. Use direction buttons Angle Mark Displays current angle setting information on the right hand corner to select the preferred item. After finishing settings, press of the TFT screen if available on the disc. SETUP again to normal display.
-
Page 8: Setup Menu Setting
SETUP Menu Setting Video Setup Page Audio Setup Page Video Setup Page Downmix This options allows you to set the stereo analog output of your DVD Player. - - VIDEO SETUP PAGE - - LT/RT :Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. -
Page 9: Password Setup Page
SETUP Menu Setting Preference Page Password Setup Page Password: select the menu password change page. PAL - Select this if the connected TV is PAL system.It change will video signal of a NTSC disc and output in PAL format. NTSC-Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format. -
Page 10: Parameters And Specifications
Parameters and specifications Battery Parameters Electronical parameters Battery Parameters Battery Specifications： Item Standard requirement Output：DC 7.4V Power requirements : 9-12V 1.5A Dimensions (Approx.) : 260(L)X182(W)X37.5(H)MM Charge / Discharge Time： Standard charge time：3h ~ 4h Power consumption : <10W Weight (Approx.) : 0.9KG Storage and work circumstances：...
