AWA W491TM Owner's Manual

Portable dvd player with dual 17cm lcd screens

Advertisement

Quick Links

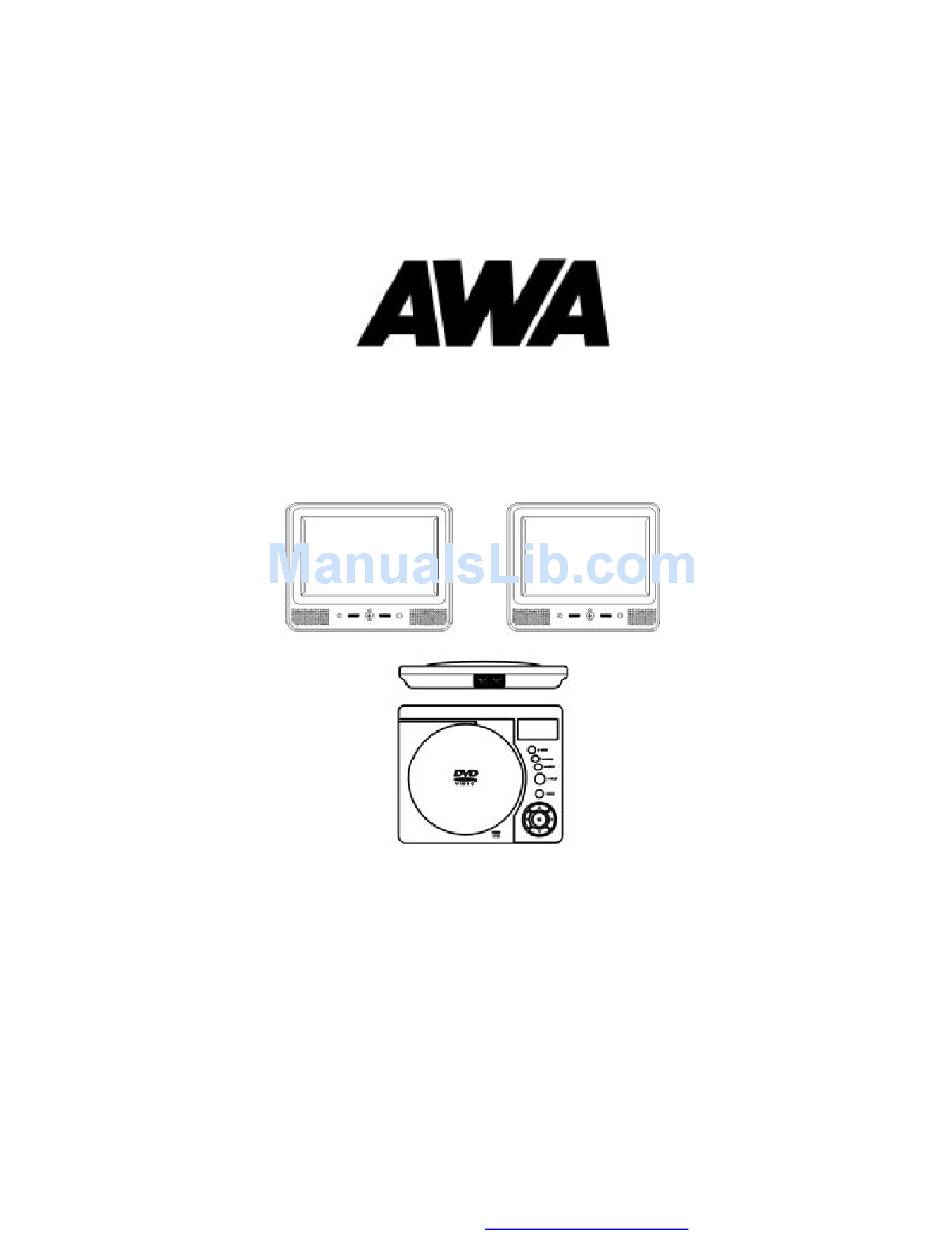

W491TM
Portable DVD player with dual 17cm LCD screens
Owner's Manual
PDF created with FinePrint pdfFactory Pro trial version
http://www.fineprint.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W491TM and is the answer not in the manual?

Questions and answers

Summary of Contents for AWA W491TM

  • Page 1 W491TM Portable DVD player with dual 17cm LCD screens Owner’s Manual PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com...
  • Page 2: Table Of Contents

    Content A. Introduction B. Cautions and Warnings C. Contents D. Powering and Installation E. Controls, Indicators, and Connectors F. Loading and Playing a Disc G. Setup H. Basic Operation I. Menu J. Display K. Playing MP3 Discs L. Connecting to a TV or another monitor M.
  • Page 3: Introduction

    A. Introduction Thank you for choosing the portable DVD player with twin 17cm LCD screen. The main features include two 17cm Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitors and a single DVD player. Please read the entire instruction manual supplied with this product prior to using.
  • Page 4 environment,please dispose the battery properly. Do not use the unit in temperatures higher than 95 degrees Fahrenheit or 35 de- grees Celsius. 4. Disassemble Do not attempt to disassemble the cabinet. There is a risk of elec- tric shock and/or exposure to Laser Radiation. Contact qualified service personnel if your system needs repair.
  • Page 5: Contents

    C. Contents 1. 1 x DVD Player 2. 2 x 17cm Monitors 3. 1 x Remote Control with battery (CR2025) 4. 2 x DIN to AV Adapter 5. 1 x AC to DC Adapter 6. 1 x Cigarette Lighter Adapter 7.
  • Page 6 3. Connection with DVD player and monitors The single monitor only can be powered by DVD player. Note: Unplug the apparatus when not using for a prolonged period of time. 4. Installation Prior to use Positioning the Monitor in vehicle headrest Note: Insert the mounting straps thru the mounting strap slots on the rear of the monitor and secure it to the headrest in your vehicle.
  • Page 7: Controls, Indicators, And Connectors

    E. Controls, Indicators, and Connectors 1. Unit View 1) Stop Button 2) Previous Button 3) Next Button 4) Play Button 5) Menu Button 6) Up/Down/Left/Right/OK buttons 7) DC 9-12V Input Jack 8) Remote Control Sensor 9) Open Switch 10) Power LED 11) Power On/ Off Switch 12) Volume Control 13) HiFi Headphone Jack...
  • Page 8 2. Single Monitor View 1). Wide 2). Volume +/- 3). Power button 4). Power LED 5). Brightness +/- 6). IR Sensor 7). Video 8). Audio L 9). Audio R 10). Base Connector 11). AV and DIN switch 12). DIN jack 13).
  • Page 9: Loading And Playing A Disc

    3. Remote Control View 1) Setup Button 2) Up Button 3) Previous Button 4) Enter Button 5) Left/Reverse Button 6) Down Button 7) Numberic Button 8) Display Button 9) Zoom Button 10) Subtitle Button 11) Next Button 12) A-B Repeat Button 13) Right/Forward Button 14) 1/ALL Repeat Button 15) Stop Button...
  • Page 10: Setup

    G. Setup 1. Press SETUP on the remote control. 2. Press direction buttons to select the item you want. 3. Press ENTER to confirm your selection. 4. Press SETUP again to exit the setup. 1. General Setup a) SPDIF Output * SPDIF Off: The digital signal audio output will be off.
  • Page 11 e) Last Memory *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc. Note: The Last position memory function only effect when Open switch. 2.Video Quality Setup This page includes: Brightness Contrast...
  • Page 12: Basic Operation

    H. Basic Operation OPEN Remove/load the disc PLAY/PAUSE Start Play/Execute item or setting STOP (1 time) Stop at the present playing point / (2 times) Stop playing NEXT Go to the next chapter, track or scene dur- ing play back PREVIOUS Go back to the previous chapter, track or scene during play back...
  • Page 13: Menu

    I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 14: Playing Mp3 Discs

    5. ANGLE During playback of a disc, press ‘ANGLE’ to display the available angles for discs containing multi-angles*, with the current angle number and the total number of angles displaying. Press ‘ANGLE’ to select an- other angle, then press again to exit and return to the normal viewing angle.
  • Page 15: Connecting To A Tv Or Another Monitor

    L. Connecting to a other equipment 1. AV Out Connecting with a TV or another Monitor Slide the AV In/Out switch to Out Connect one end of the audio/video cable’s black plug into the unit’s DVD A/V jack, and connect the other end to the AUDIO INPUT jacks on your TV or Monitor (white = left channel, red = right channel, yello=video).
  • Page 16: Specifications

    M. Specifications Compatible DISC: DVD/CD/MP3/JPEG/Divx Signal system: PAL Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Power source: DC 9-12V Operating temperature: 5~35°C Weight : 0.434 kg Dimensions (W x D x H): 166x 142 x 33mm Single Monitor Color System: 17cm...
  • Page 17: Troubleshooting

    N. Troubleshooting No sound or distorted sound? Make sure your DVD is connected properly.Make sure all cables are securely inserted into the appropriate jacks. Can’t advance through a movie? You can’t advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
  • Page 18: Instruction Of Game

    O. Instruction Of Game Features 1. 30 interesting games built-in the Game 2. Comfortable sense of hand touching and pretty look WARNINGS 1. A very small portion of the population have a condition which may cause them to experience epileptic seizures or have momentary loss of consciousness when viewing certain kinds of flashing lights or patterns that are commonly present in our daily environment.
  • Page 19 REPETITIVE STRAIN WARNING Some people may experience fatigue or discomfort after play for a long time. Regarding of how you feel, you should take a 10 to 15 minutes break at least every hour while you are playing. If your hands or arms become tired or uncomfortable sooner stop immediately and rest.
  • Page 20 2. Installation 1) Power on the monitor using AC adapter. 2) Take 3 AA alkaline batteries into game compartment 2) Connect game cabel and optional AV adapter to monitor as below illustration. 3) After play, plug the console’s AV cable out of the E Port for further use. 3.
  • Page 21 INSTRUCTIONS OF 30 GAMES Runner Car You must race over a long city street before running out of fuel but watch out for other races and road hazards like rocks. Pick up moneybags to get the bonus points and P to add more fuel. D-Pad, Joystick, D-Wheel: Left and Right A: Accelerate B: brake a Stop...
  • Page 22 Aero Engine There is a fierce fight taking place in outer space. You are commanding a battleship flying in between planets fighting against the alien force. Pick up one blue power sphere for double fire, pick up two blue power sphere for triple fire. D-Pad, Joystick: 8 directions A: Fire TA: Continuous fire...
  • Page 23 Spin Ball Roll the ball down the track to reach the destination within the given time. When you arrived at the destination and pick up the key, you’ll advance to the next level. During the course you also can get the helpful objects to gain the extra points. D-Pad, Joystick: 4 directions Star Ally Defeat all kinds of enemy fighter planes which get in your way.
  • Page 24 Bolt fighter A purple-red fighter plane is bravely combating different enemy fighter planes in the sky over land and sea . When you defeat the huge enemy fighter planes, you can advance to the next level. D-Pad, Joystick: 8 directions A: Fire TA: Continuous fire Dragon Fire...
  • Page 25 GP Race Race your motorcycle to cross the city street. Pick up fuel along the way to increase the score and to keep from running out of gas, and avoid obstacles and other motorcycles. Reach the destination to advance to the next level. D-Pad, Joystick, D-Wheel: Left and Right A: Accelerate B: Normal Speed...
  • Page 26 Elfland Destroy the monsters which is the same color as your elf to save Elfland. If you want to eliminate the other monsters, just jump into the corresponding paint bucket and color yourself the same as the monster, otherwise you will lose. D-Pad, Joystick: 4 directions A: Jump TA: Continuous Jump...
  • Page 27 Paint Master Paint the entire runway without leaving any blank spaces within the time limited but watch out for the enemy. You can move the baffle to block the enemy’s attack. If you connot finish within the time limited, the enclosed enemy will come out and leave his footmark on the screen.
