AWA W481TM Owner's Manual

Portable dvd player with two 7" lcd screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

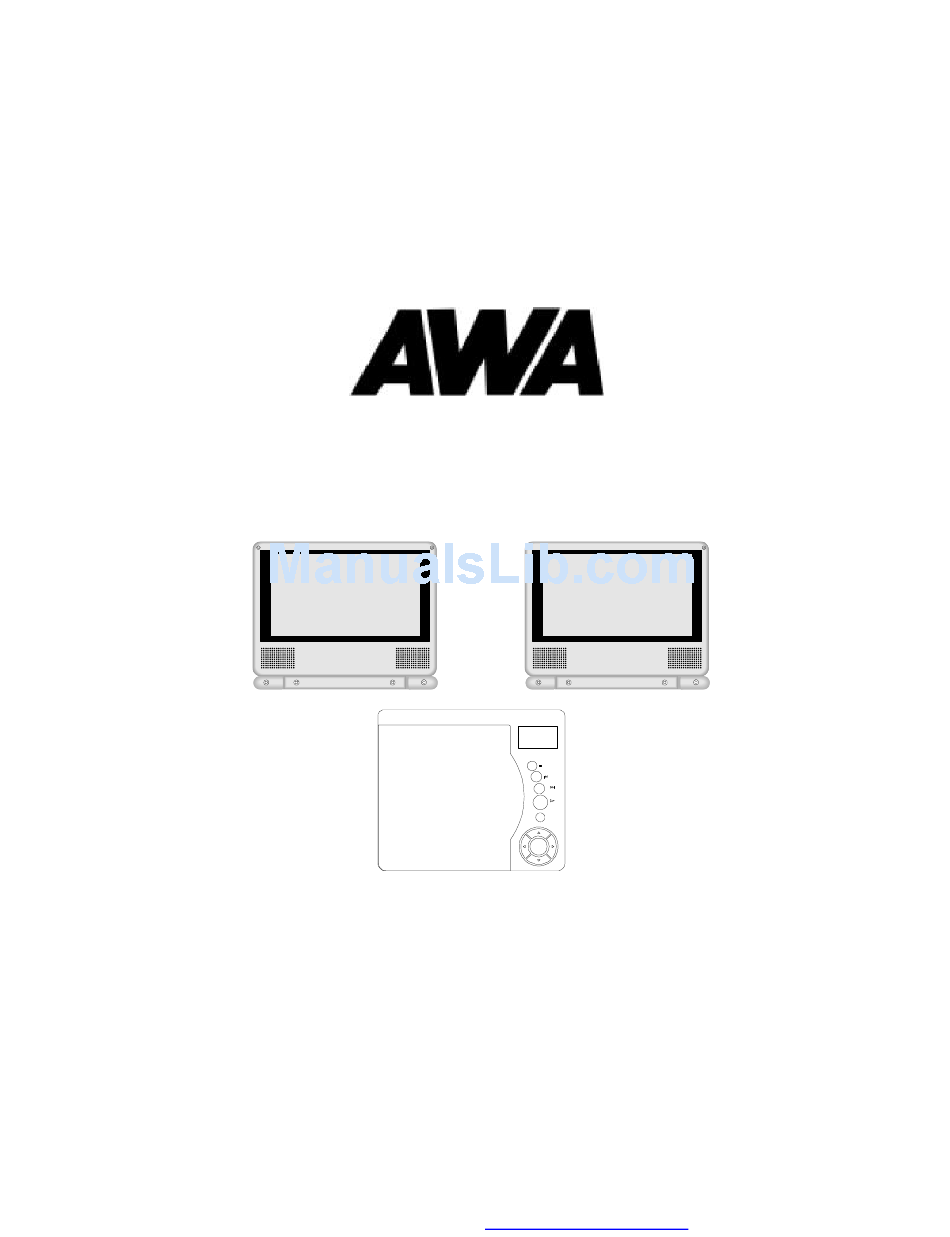

W481TM
Portable DVD player with two 7" LCD screen
Owner's Manual
PDF created with FinePrint pdfFactory Pro trial version
http://www.fineprint.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W481TM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AWA W481TM

Summary of Contents for AWA W481TM

  • Page 1 W481TM Portable DVD player with two 7” LCD screen Owner’s Manual PDF created with FinePrint pdfFactory Pro trial version http://www.fineprint.com...
  • Page 2 Notice: This Product incorporates copyright protection technology that is pro- tected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights own- ers. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    Content A. Introduction ............... 1 B. Cautions and Warnings ........... 1 C. Contents ................3 D. Powering and installation ..........4 E. Controls, Indicators, and Connectors ......6 F. Loading and Playing a Disc ..........8 G. Setup.................. 9 H. Basic Operation ..............15 I.

  • Page 4: Introduction

    A. Introduction Thank you for choosing the portable DVD player with twin 7” LCD screen. The main features include two 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitors and a single DVD player. Please read the entire instruction manual supplied with this product prior to using.
  • Page 5 environment,please dispose the battery properly. Do not use the unit in temperatures higher than 95 degrees Fahrenheit or 35 de- grees Celsius. 4.Disassemble Do not attempt to disassemble the cabinet. There is a risk of elec- tric shock and/or exposure to Laser Radiation. Contact qualified service personnel if your system needs repair.

  • Page 6: Contents

    C. Contents 1. 1 x DVD Player 2. 2 x 7” Monitors 3. 1 x Remote Control with battery (CR2025) 4. 2 x DIN to AV Adapter 5. 1 x AC to DC Adapter 6. 1 x Cigarette Lighter Adapter 7.

  • Page 7: Powering And Installation

    3. Connection with DVD player and monitors (Refer to Figure 2) The single monitors only can be powered by DVD player. 7" L C D M ONI T OR Figure 2 Note: Unplug the apparatus when not using for a long time or intent to disconnect from the Mains power.
  • Page 8 Figure 4 Slide screen in to the case with display pointing out Squeeze the magic tape between tilting foot and display and fix on back side. Then loop the strap of the pouch around the headrest in the vehicle and pull the end of the strap while holding the buckle until the pouch is tightly secured.

  • Page 9: Controls, Indicators, And Connectors

    E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 6) Figure 6 1) Stop Button 12) Power LED 2) Previous Button 13) Open Switch 3) Next Button 14) Remote Control Sensor 4) Play Button 15) Power On/ Off Switch 5) Menu Button 16) Volume Control 6) Up button...
  • Page 10 2. Single Monitor View (Refer to Figure 7) Figure 7 1). Brightness Up/Down Control 2). Power Off/On Switch 3). AV In Jack 4). DC 9-12SV Input Jack 5). Headphone Jack 6). Up/Down Switch 7). Volume Up/Down Control NOTE: Press the Up/Down Switch, you can reverse the screen image.

  • Page 11: Loading And Playing A Disc

    3. Remote Control View (Refer to Figure 8) 1) Display Button 2) Angle Button 3) Subtitle Button 4) Audio Button 5) Zoom Button 6) UP/DOWN/LEFT/RIGHT/ ENTER Buttons 7) Return Button 8) A-B Button 9) Forward Button 10) Reverse Button 11) Slow Button 12) Stop Button 13) Numeric Keypad 14) Setup Button...

  • Page 12: Setup

    G. Setup 1. General Setup Page 1)With no disc inside the player, press ‘SETUP’ to display the Main screen of the Setup Menu on the screen and “General Setup Page” appears. At the same time, “ ” is highlighted. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode.
  • Page 13 a) SPDIF Output * SPDIF Off: The digital signal audio output will be off. * SPDIF/RAW: The audio output will be not modulated. * SPDIF/PCM: The audio output will be modulated in Pulse Code Modulation mode. b) TV Display * Normal/PS: When the player outputs signal to a normal TV, a nor- mal picture is shown on the full screen.
  • Page 14 2.Video Quality Setup or button to select “Video Quality Setup” 1)In Setup menu, Press the is highlighted. Press ENTER to enter the video quality setup page. 2)Press the ENTER button, “Brightness” is highlighted. 3)Press the button to select the other menus in video quality setup page.
  • Page 15 3. Password button to select “Password Setup In Setup menu, Press the Page” and is highlighted. Press ENTER to enter the password page. Password Setup Page Screen Display Press ENTER twice to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and the Confirmed New Password.
  • Page 16 page. 4) Press to enter the sub menu. Preference Audio Language 5) Press the button to select the sub menu and press the ENTER to confirm your selection. 6) Repeat steps 3-5 for other menus. Note: Press to return the previous menu. a) Audio b) Subtitle c) Disc Menu...
  • Page 17 d) Select ‘Parental’ using the UP/DOWN button, then press RIGHT to enter the submenu. Parental Preference Screen Display Select the parental level you desire using the UP/DOWN button for discs with lock-out function or multiple rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (8 Adult).

  • Page 18: Basic Operation

    H. Basic Operation POWER Turn the unit on/off OPEN Remove/load the disc PLAY Start Play/Execute item or setting SLOW Play at 1/2, 1/4, 1/8 or 1/16 times speed PAUSE Still Picture STOP (1 time) Stop at the present playing point / (2 times) Stop playing NEXT Go to the next chapter, track or scene dur-...

  • Page 19: Menu

    I. Menu A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.
  • Page 20 2. ANGLE During playback of a disc, press ‘ANGLE’ to display the available angles for discs containing multi-angles*, with the current angle number (1) and the total number of angles (2) displaying. Press ‘ANGLE’ to select another angle, then press again to exit and return to the normal view- ing angle.
  • Page 21 4. AUDIO During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total num- ber of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automati- cally if the ‘AUDIO’...
  • Page 22 6. A-B REPEAT a. During playback press a first time ‘A-B’ to set the Starting Point A. A-B Repeat Starting Point Screen Display b. Press ‘A-B’ a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B. A-B Repeat Ending Point Screen Display c.

  • Page 23: Variable Playing Mode

    7. REPEAT a. During playback press ‘REPEAT’ constantly to see the repeat mode. Chapter: Repeat the current chapter Title: Repeat the current title All: Repeat all chapters and titles Off: Resume normal playback The ‘Chapter’ repeat display shows below for example: Chapter Repeat Screen Display K.
  • Page 24 Total Elapsed: The current track playing and the total time that the CD has been playing. Total Remain: The current track playing and the amount of time remaining on the CD. Display Off: The CD time Information will not be displayed. Take ‘Single Elapsed’...
  • Page 25 2. Playing MP3 Discs MP3 is a format for storing digital audio. An audio CD-quality song is compressed into the MP3 format with very little loss of audio quality while taking up much less disc space. CD-R /RW discs that have been encoded in MP3 format are compatible with this system.
  • Page 26 4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the previous song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF(Folder). Pressing REPEAT consecutively changes the repeat options: •...
  • Page 27 3. Playing JPG file 1) Load the JPG Disc into tray. 2) Select JPG file by pressing “UP/DOWN” or ENTER button through menus or submenus. To go back previous menu page, use LEFT button. 3) You can preview the JPG file which you selected by pressing “PLAY” or “ENTER”.

  • Page 28: Connecting To A Tv Or Another Monitor

    L. Connecting to a TV or another monitor ( Refer to Figure 9) You can also connect the DVD player to a TV to enjoy high quality stereo sound and picture on another monitor. 1. Connect one end of the audio/video cable’s black plug (optional, 1/8”...

  • Page 29: Specifications

    M. Specifications Compatible DISC: DVD/CD/MP3 Signal system: NTSC/PAL Panel size: 7 inch Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4V /10kOhm Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V Power consumption: 6 W...

  • Page 30: Troubleshooting

    N. Troubleshooting PROBLEM SOLUTION • Make sure your DVD is connected properly. No sound or Make sure all cables are securely inserted distorted sound into the appropriate jacks. • You can’t advance through the opening credits and warning information that appears Can’t advance at the beginning of movies because the disc through a movie...
  • Page 31 Troubleshooting (Cont) PROBLEM SOLUTION • Verify that the batteries in the remote are IR sensor fresh. inoperative • Verify that the remote sensor eye is not obstructed. • Verify that the infrared transmitter is affixed over the sensor eye of the com- ponent to be controlled.
