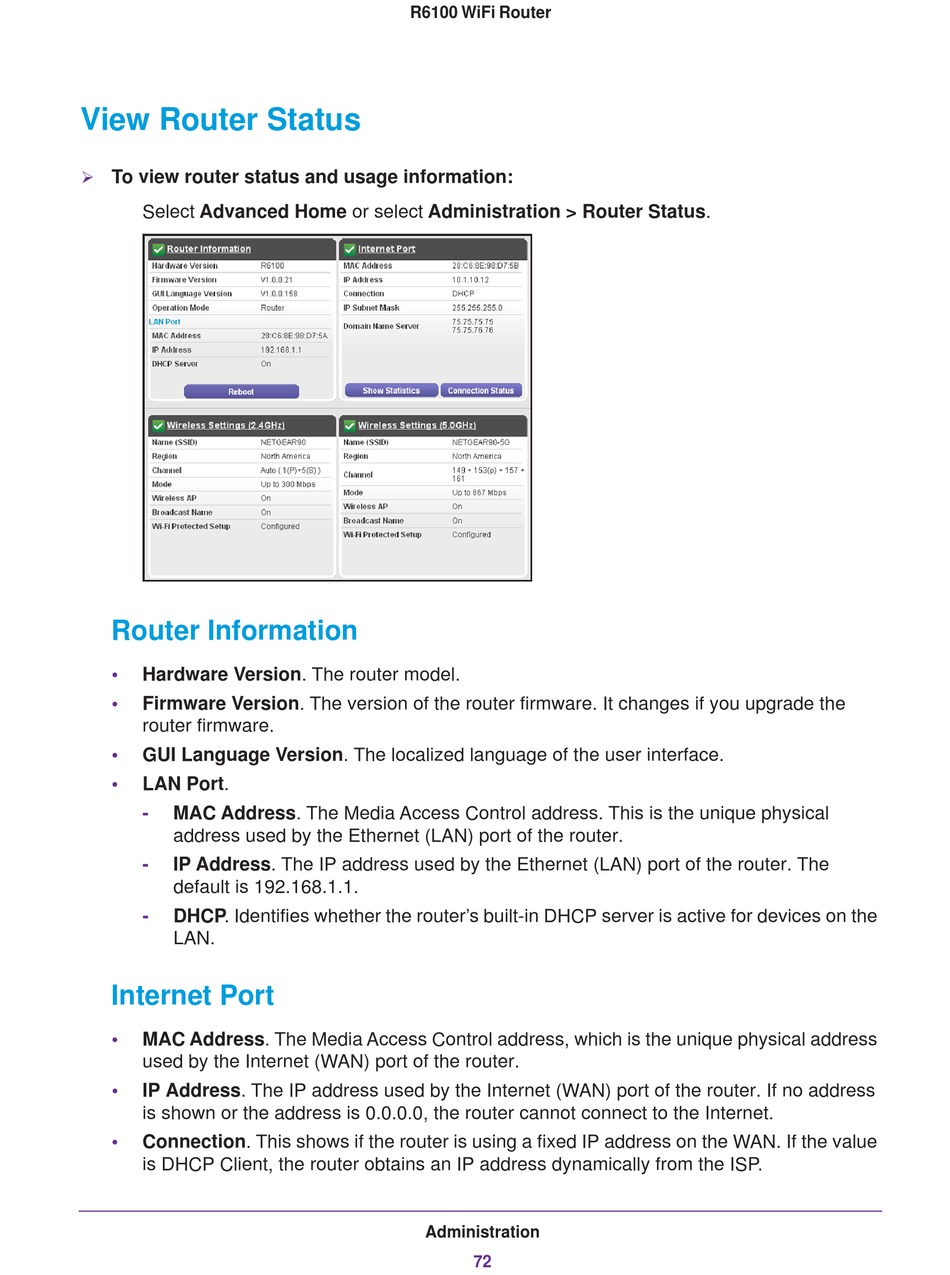

View Router Status


To view router status and usage information:
Select Advanced Home or select Administration > Router Status.

Router Information

• Hardware Version. The router model.
• Firmware Version. The version of the router firmware. It changes if you upgrade the
router firmware.
• GUI Language Version. The localized language of the user interface.
• LAN Port.
- MAC Address. The Media Access Control address. This is the unique physical
address used by the Ethernet (LAN) port of the router.
- IP Address. The IP address used by the Ethernet (LAN) port of the router. The
default is 192.168.1.1.
- DHCP. Identifies whether the router's built-in DHCP server is active for devices on the
LAN.

Internet Port

• MAC Address. The Media Access Control address, which is the unique physical address
used by the Internet (WAN) port of the router.
• IP Address. The IP address used by the Internet (WAN) port of the router. If no address
is shown or the address is 0.0.0.0, the router cannot connect to the Internet.
• Connection. This shows if the router is using a fixed IP address on the WAN. If the value
is DHCP Client, the router obtains an IP address dynamically from the ISP.
