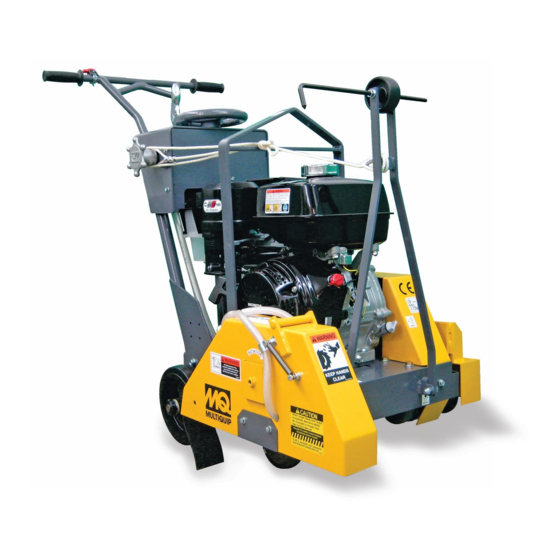

- Page 1 OperatiOn Manual Streetpro SerieS MODel Sp118 prOfeSSiOnal paveMent Saw (HOnDa GX390u1Qwt2 GaSOline enGine) Revision #1 (5/3/12) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES. pn: 38206...
-
Page 2: Proposition 65 Warning
ALWAYS work in a well ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. page 2 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 3: Silicosis/Respiratory Warnings
NIOSH/MSHA for the materials being used. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 3... -
Page 4: Table Of Contents
Operation ............28-31 Maintenance (Saw) ..........32 Maintenance (Engine) ........... 33 Decommissioning/Water Tank (Optional)....34 Troubleshooting (Saw) ........... 35 Troubleshooting (Engine) ........36 Conformity Certificates .......... 37 page 4 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 5: Parts Ordering Procedures
❒ Quantity, Part Number and Description of Each Part NOTICE All orders are treated as Standard Orders and will ship the same day if received prior to 3PM PST. WE ACCEPT ALL MAJOR CREDIT CARDS! Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 5... -
Page 6: Training Checklist
Pavement cutting techniques. Stopping a cut. Restart after stopping blade within work surface — explanation Shutdown of machine. Lifting of machine (lift loops). Machine transport and storage. page 6 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 7: Daily Pre-Operation Checklist
Daily pre-operation Checklist Hardware and damage check Engine oil level Hydraulic oil level Condition of blade Safety stop switch operation Braking control operation Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 7... -
Page 8: Safety Information
Indicates a hazardous situation which, if not avoided, Cutting and crushing hazards CoulD result in minor or moDeraTe inJurY. NOTICE Addresses practices not related to personal injury. Hydraulic fluid hazards page 8 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 9: General Safety
„ No one other than the operator is to be in the working area when the equipment is in operation. „ Do noT use the equipment for any purpose other than its intended purposes or applications. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 9... - Page 10 „ Anytime the saw is lifted onto its nose or tilted fully back, such as for maintenance access, the high end of the saw MUST be blocked up to prevent the possibility of crush injury. page 10 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12)
-
Page 11: Blade Safety
Damage properly functioning and being used. to the engine or equipment can result if operating in speed ranges above the maximum allowable. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 11... -
Page 12: Fuel Safety
„ alwaYS keep battery cables in good working condition. equipment. Fire or explosion could result Repair or replace all worn cables. from fuel vapors or if fuel is spilled on a hot engine. page 12 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 13: Transporting Safety
„ Ensure that the diamond blade does not come into contact with the ground or surface during transportation. „ never transport the saw to or from the job site with the blade mounted. LIFTING BALE Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 13... - Page 14 Recyclers and manufacturers alike promote the process of recycling metal. Using a metal recycling center promotes energy cost savings. page 14 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12)
- Page 15 Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 15...
-
Page 16: Dimensions Specifications (Saw)
Arbor Size 1.0" (2.54 cm) Maximum Cutting Depth in. (cm) 7.0" (17.78 cm) Maximum Operating Mass 274 lbs. (124.3) Nominal Mass (without blade or fluids) 259 lbs. (117.5) page 16 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 17: Specifications (Engine)
Dry Net Weight 68.3 lbs. (31.0 Kg) 16.7 in. x 17.7 in. x 17.4 in Dimensions (L x W x H) (425 mm x 450 mm x 443 mm). Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 17... -
Page 18: General Information
„ Hinged front Blade Guard. „ Rugged Pointer Tracking Arm. „ Super-rigid steel box frame. „ Manual Wheel Brake. Figure 2. SP118 Saw „ Water delivery system for Left/Right hand sawing. page 18 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 19: Components
13. lifting Bale — Over-center lifting point for safe blade out of cut — Counter-clockwise to lower blade transportation of saw. into cut . Figure 3. Components Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 19... -
Page 20: Basic Engine
Pull the starter grip until resistance is felt, then pull briskly and smoothly. 10. Fuel Tank — Holds unleaded gasoline. For additional information refer to engine owner's manual. page 20 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 21: Inspection/Setup
Check the oil level shown on the dipstick. 4. If the oil level is low (Figure 6), fill to the edge of the oil filler hole with the recommended oil type (Table 5). Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 21... - Page 22 2. Check uniform parallelism (Figure 9) of V-belt and fastened during operation of the saw (Figure 8). pulley (sheaves). Use a straight-edge or machinist's square against both pulleys and adjust both pulleys until equally aligned. page 22 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12)
- Page 23 A decrease of power to the blade and poor performance will result if the belt is under-tensioned (loose on pulleys). NOTICE V-belt alignment must be rechecked after adjusting belt tension. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 23...
-
Page 24: Blades
Reference the directional arrow on the blade and place it so the direction of rotation “downcuts” with the turn of the shaft. page 24 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 25: Blade Placement
DO NOT overtighten the nut (approximately operating area. 45-50 ft. lb/61-68 N/m) when finalizing the assembly. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 25... -
Page 26: Blades
DO NOT overtighten the nut (approximately 45-50 ft. lb/61-68 N/m) when finalizing the assembly. page 26 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 27: Raise/Lower And Depth Stop
3. Select Diamond Blade and mount the blade according to Figure 12. 4. Lower the blade so it just touches the surface. Figure 14. Lowering Blade for Depth of Cut Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 27... -
Page 28: Operation
3. Place the fuel valve lever (Figure 18) to the "ON" position. Figure 16. Engine Stop Switches page 28 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) - Page 29 5. Place the Choke Lever (Figure 21) in the "CLOSED" position. Figure 22. Throttle Lever 7. Grasp the starter grip (Figure 23) and slowly pull it out. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 29...
- Page 30 (Figure 16) serves both as an Emergency Engine Shut-Off and as the primary ON/OFF switch. This allows the operator to shutdown the saw safely away from moving parts. page 30 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12)
- Page 31 9. Set the engine ON/OFF switch to the OFF position. 10. Place the water valve in the OFF position (as required). 11. Push the Parking Brake Lever downward to apply braking pressure to the wheels. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 31...
-
Page 32: Maintenance (Saw)
„ Removing blade or belt guards Clean the machine daily. Remove all dust and slurry build up. If the saw is steam cleaned, ensure that lubrication is accomplished AFTER steam cleaning operations. page 32 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 33: Maintenance (Engine)
(see Table 5.) Engine oil capacity is 1.16 US quart (1.1 liter). 5. Screw in the filler cap/dipstick securely. Figure 25. Engine Oil Change Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 33... -
Page 34: Decommissioning/Water Tank (Optional)
8. The remainder can be brought to a salvage yard or metal reclamation facility for further dismantling. 5/16 x 1” 5/16 x 1” 5/16 x 3/4” Figure 26. Water Tank Kit (Option) page 34 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 35: Troubleshooting (Saw)
Multiquip for information. Excessive force applied to blade while DO NOT force the blade in the cut. Apply a cutting? slow and steady pace when sawing. Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) — page 35... -
Page 36: Troubleshooting (Engine)
Check entire fuel system for leaks or clogs. Recoil mechanism clogged with dust and dirt? Clean recoil assembly with soap and water. Recoil starter malfunction? Spiral spring loose? Replace spiral spring. page 36 — Sp118 pavemenT Saw • operaTion manual — rev. #1 (05/03/12) -
Page 37: Conformity Certificates
SP118 MULTIQUIP, INC. hereby declares that the machine(s) designated as SP118 conforms to the following: 1. American National Standards Institute - This machine has engineered and designed to fully comply with the requirements set forth in American Standards Institute (ANSI) B7.1-2000,“ Safety Requirements for the Use, Care, and Protection of Abrasive Wheels”. - Page 38 © COPYRIGHT 2012, MULTIQUIP INC. Multiquip Inc, the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
