Fireplace Installation
flange in the most appropriate
place for securing and using the
provided L-bracket and the screw
that was removed attach the fire-
box to the mantel. (Figure 2)
!
NOTE: There are no guide
holes provided for the L-Brackets
in the mantel.
If not installing the unit into a
Dimplex mantel the required
opening dimensions for the
fireplace are: 24.0 in. (610 mm)
wide x 18 ⅜ in. (467 mm) high x
7 ½ in. (191 mm) deep (Figure 3).
The firebox is to be installed
from the front of the mantel and
inserted so that the flanges are
flush against the front surface of
the mantel.
8

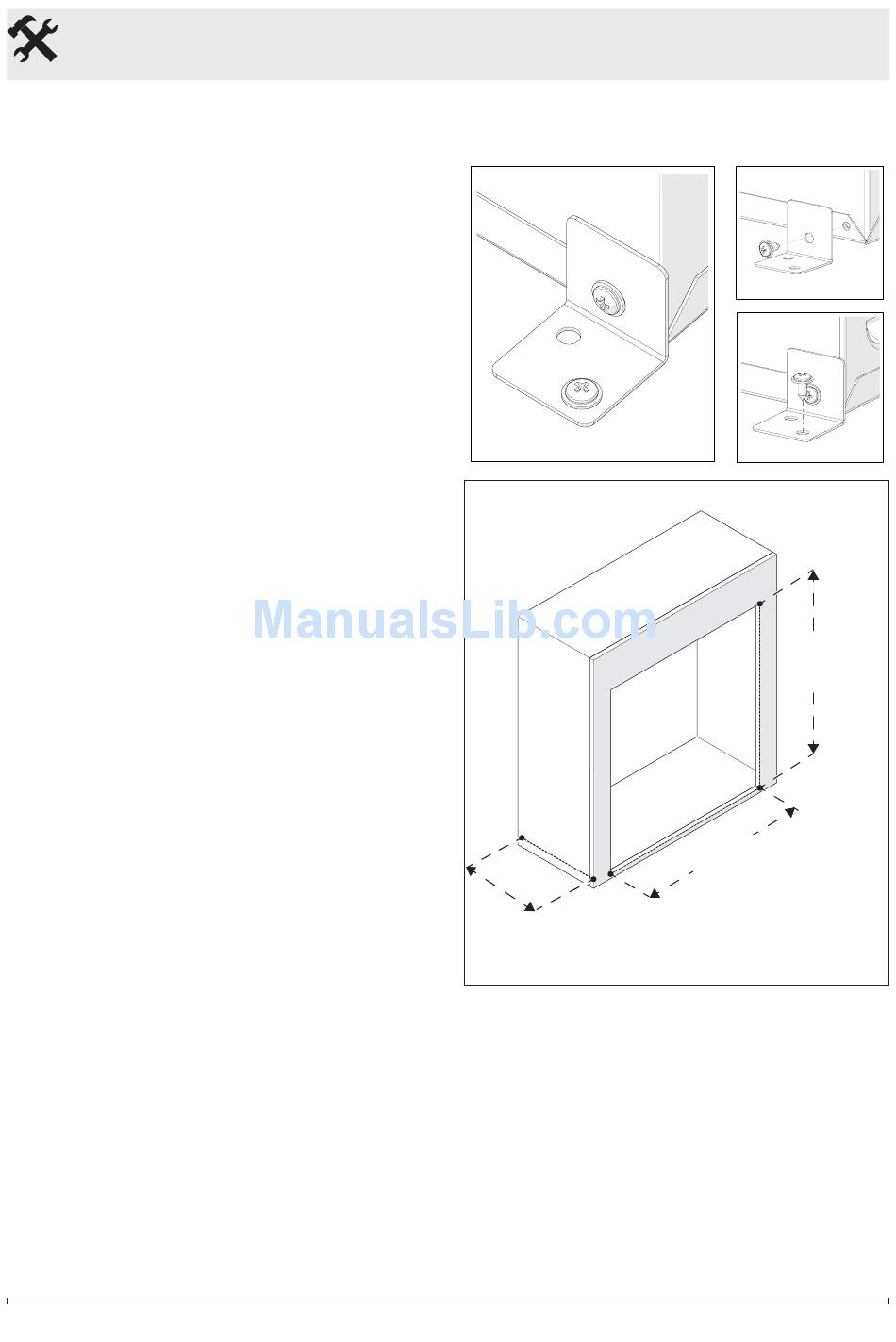

Figure 2
Figure 3
7 ½ in.
(191 mm)
18 ⅜ in.
(467 mm)
24.0 in.
(610 mm)
