Campbell TE525 Instruction Manual

Tipping bucket rain gage
Hide thumbs Also See for TE525:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

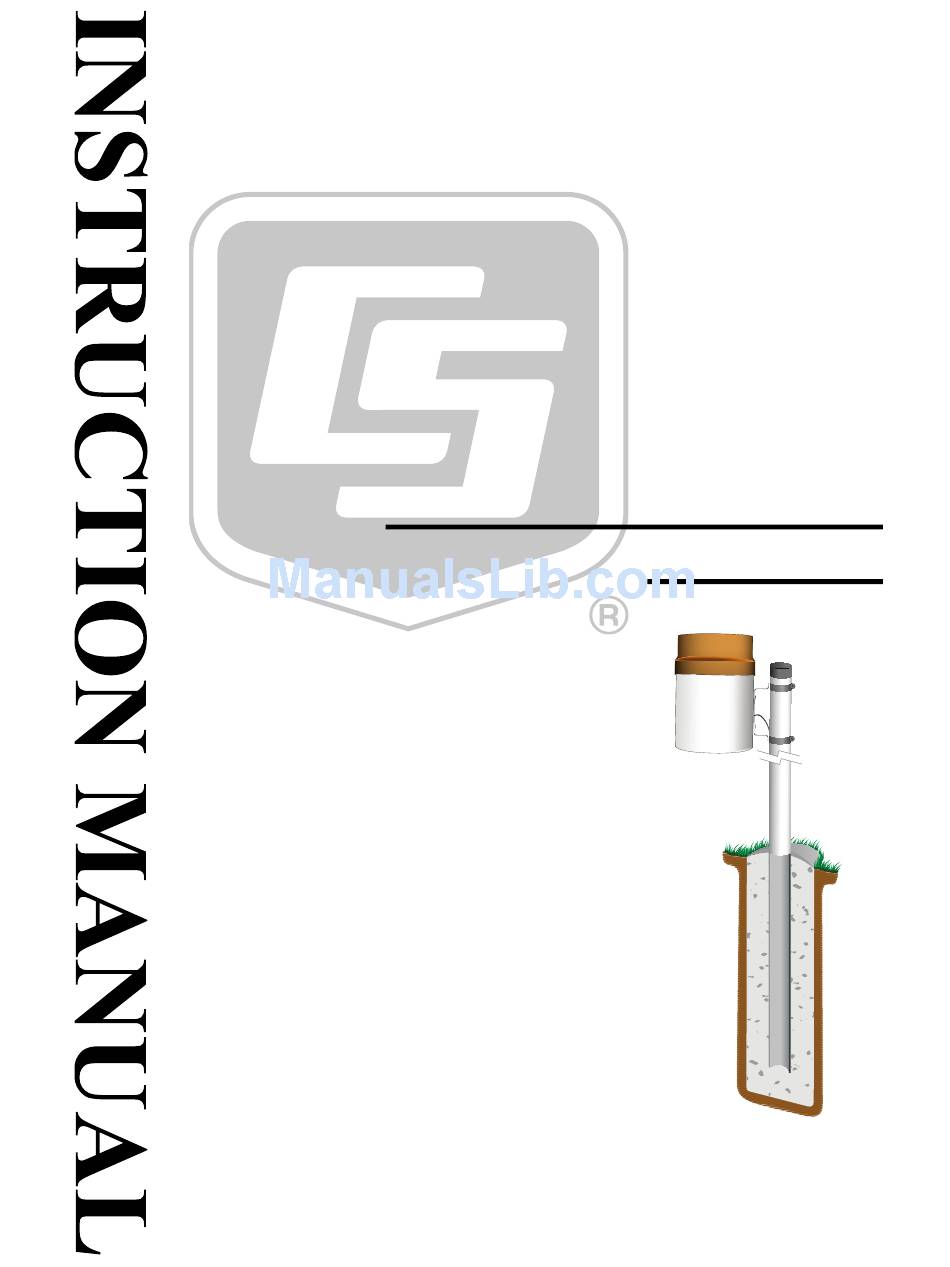

TE525 Tipping Bucket
Rain Gage
Revision: 10/13
C o p y r i g h t
©
1 9 9 0 - 2 0 1 3
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE525 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell TE525

Summary of Contents for Campbell TE525

  • Page 1 TE525 Tipping Bucket Rain Gage Revision: 10/13 C o p y r i g h t © 1 9 9 0 - 2 0 1 3 C a m p b e l l S c i e n t i f i c ,...
  • Page 3 Campbell pricelist or product manual. Products not manufactured, but that are re-sold by Campbell, are warranted only to the limits extended by the original manufacturer. Batteries, fine-wire thermocouples, desiccant, and other consumables have no warranty.
  • Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.

  • Page 5: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements..........1 3. Initial Inspection ............1 Ships With....................2 4. Quickstart ..............2 Siting ....................2 Mounting....................2 Use SCWin to Program Datalogger and Generate Wiring Diagram ..4...
  • Page 6 Table of Contents Figures 4-1. TE525 Tipping Bucket Rain Gage ............3 4-2. Pedestal base options................3 7-1. Rain Gage Schematic ................ 10 Tables 7-1. Wiring for Pulse Channel Input............9 7-2. Wiring for Control Port Input.............. 9 7-3. Multipliers for Rain Measurement ............ 10...

  • Page 7: Introduction

    TE525 Tipping Bucket Rain Gage Introduction The TE525 is an adaptation of the standard National Weather Service tipping bucket rain gage. Output is a switch closure for each bucket tip. Three models are available: • TE525 6 in. orifice 0.01 in. tip •...

  • Page 8: Ships With

    The CM300-series mounting poles provide a stainless steel 1.5 IPS vertical pole for mounting the TE525 rain gage. Pole length is 58 cm (23 in), 119 cm (47 in), and 142 cm (53 in) for the CM300, CM305, and CM310 models respectively.

  • Page 9: Te525 Tipping Bucket Rain Gage

    TE525 Tipping Bucket Rain Gage 24” FIGURE 4-1. TE525 Tipping Bucket Rain Gage FIGURE 4-2. Pedestal base options...

  • Page 10: Use Scwin To Program Datalogger And Generate Wiring Diagram

    Use SCWin to Program Datalogger and Generate Wiring Diagram The simplest method for programming the datalogger to measure the tipping bucket rain gages is to use Campbell Scientific’s SCWin Program Generator (Short Cut). This section shows Short Cut’s programming for the NOTE TE525/TE525WS.
  • Page 11 TE525 Tipping Bucket Rain Gage 3. Select TE525/TE525WS Rain Gauge, and select the right arrow (in center of screen) to add it to the list of sensors to be measured, and then select Next. 4. Define the name of the public variable and the measurement units.
  • Page 12 TE525 Tipping Bucket Rain Gage 5. Choose the Output and then select Finish. 6. In the Save As window, enter an appropriate file name and select Save. 7. In the Confirm window, click Yes to download the program to the datalogger.

  • Page 13: Overview

    TE525WS to measure the water content of snow. The CS705 cannot be directly used with either the TE525 or TE525MM. However, both the TE525 and TE525MM can be converted to a TE525WS by returning them to Campbell Scientific (see...

  • Page 14: Specifications

    TE525WS is directly compatible with the CS705 Snowfall Adapter allowing it to measure the measure the water content of snow. • Campbell Scientific can modify a TE525 or TE525MM to it to be used with the CS705 Snowfall Adapter. Refer to Assistance...

  • Page 15: Operation

    TE525 Tipping Bucket Rain Gage TE525 TE525WS TE525MM Height 24.1 cm (9.5 in) 26.7 cm (10.5 in) 29.2 cm (11.5 in) Tipping Bucket Weight 0.9 kg (2 lb) 1 kg (2.2 lb) 1.1 kg (2.4 lb) Cable 2-conductor shielded cable Cable Weight 0.1 kg (0.2 lb) per 10 ft length...

  • Page 16: Datalogger Programming

    0.0057 0.1459 The volume of water required to cause a tip in the TE525 and the TE525MM is the same. The difference in calibration is strictly due to funnel size. If the CS705 Snowfall Adapter or other eight inch funnel is installed on these gages, use a multiplier from the last row in TABLE 7-3.

  • Page 17: Pulse Count Example Programs

    TE525 Tipping Bucket Rain Gage 7.2.1 Pulse Count Example Programs The following example programs use a pulse channel to read the output from the rain gage. The CR1000 example will also work with the CR800, CR850, CR3000, and CR5000. CR9000(X) programming is similar to the CR1000 except it has an additional parameter in the PulseCount() instruction to specify the pulse module’s slot.

  • Page 18: Control Port Example

    TE525 Tipping Bucket Rain Gage 7.2.2 Control Port Example This example measures a TE525 rain gage in millimeters. A different multiplier would be entered (TABLE 7-3) for other units. 7.2.2.1 CR1000 Example Program 'CR1000 'Declare Public Variables and Units Public Rain_mm...
  • Page 19 16 oz. of water. One half turn of both screws causes a 2% to 3% change. (7) Check and re-level the rain gage lid. Factory Calibration: If factory calibration is required, contact Campbell Scientific to obtain an RMA (see Warranty Assistance...
  • Page 20 TE525 Tipping Bucket Rain Gage...

  • Page 21: Edlog Program Examples

    Appendix A. Edlog Program Examples A.1 CR10X Pulse Count Example Program The CR10X program will also work with the CR500, CR510, CR10, 21X or CR23X. CR7 programming is similar to the CR10X but has an additional parameter in the Pulse (P3) instruction to specify the slot that the pulse card is ;{CR10X} *Table 1 Program 01: 1.0000...

  • Page 22: Cr10X Control Port Example

    Appendix A. Edlog Program Examples A.2 CR10X Control Port Example This example measures a TE525 rain gage in millimeters. A different multiplier would be entered (TABLE 7-3) for other units. ;{CR10X} *Table 1 Program 01: 1 Execution Interval (seconds) 1: Pulse (P3)
  • Page 24 Campbell Scientific Ltd. (CSL Germany) Fahrenheitstraße 13 28359 Bremen GERMANY www.campbellsci.de • info@campbellsci.de Campbell Scientific Spain, S. L. (CSL Spain) Avda. Pompeu Fabra 7-9, local 1 08024 Barcelona SPAIN www.campbellsci.es • info@campbellsci.es Please visit www.campbellsci.com to obtain contact information for your local US or international representative.
