3. INPUT POWER CONNECTIONS

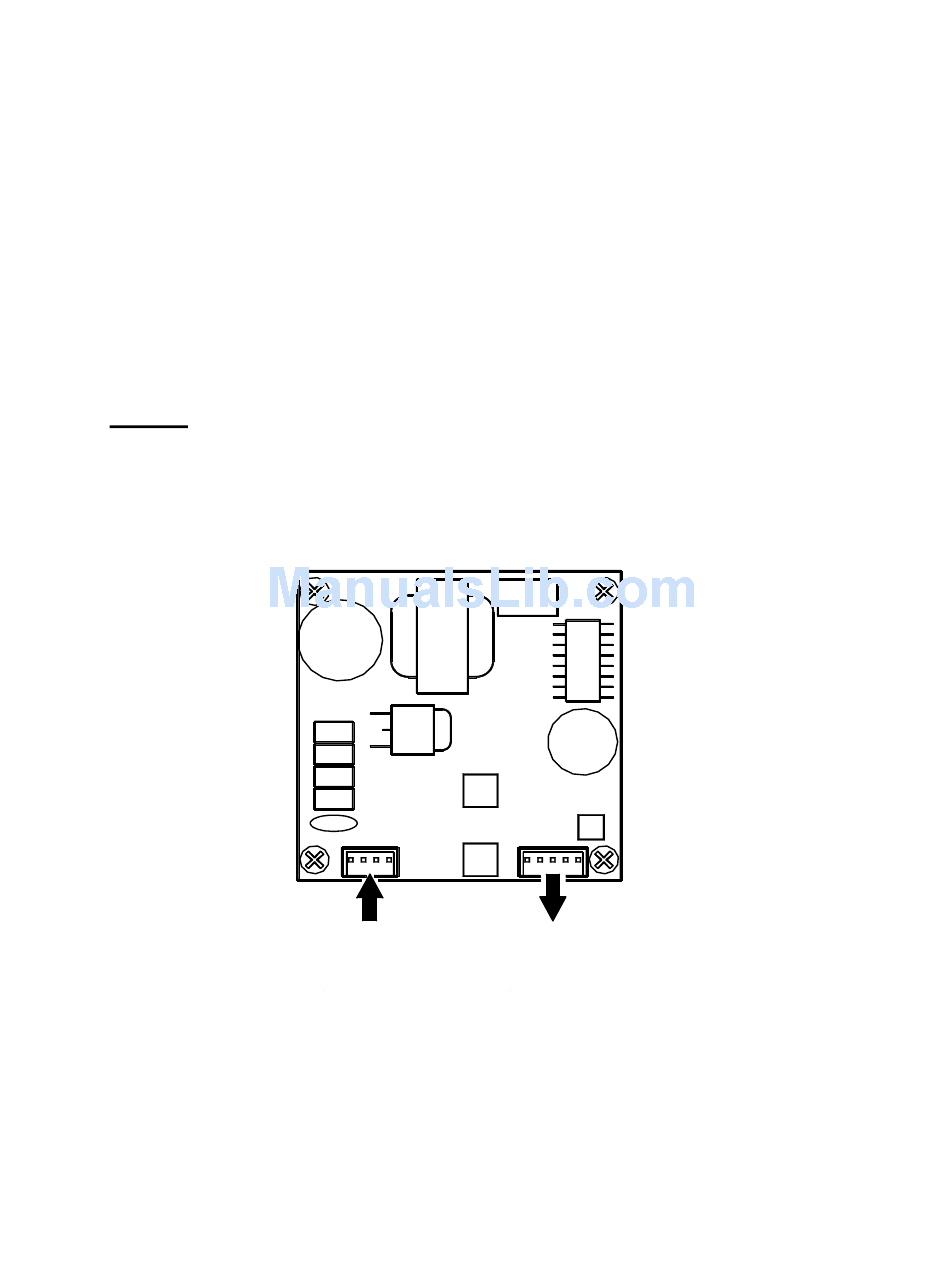

The camera unit is pre-connected with an
electrically isolated power board for 24Vac or 12V
dc operation with no wiring change or wiring
polarity. See Figure 3-1.
Note:
Input voltage is 12VDC to 24VDC for DC input.
The AC input range is 12VAC to 24VAC.
Power
Power
IN
OUT
FIGURE 3 - 1
12VDC or 24VAC
Electrically Isolated Board
