model No.: WG250
model description: 20" 18V Cordless HT Hedge Trimmer
Note: Also included in combo kits; 901 & 901.1
REMOVE BATTERY BEFORE SERVICE
COVER BLADE WITH SHEATH BEFORE SERVICE
READ USER MANUAL BEFORE SERVICE
Work with blade away from body

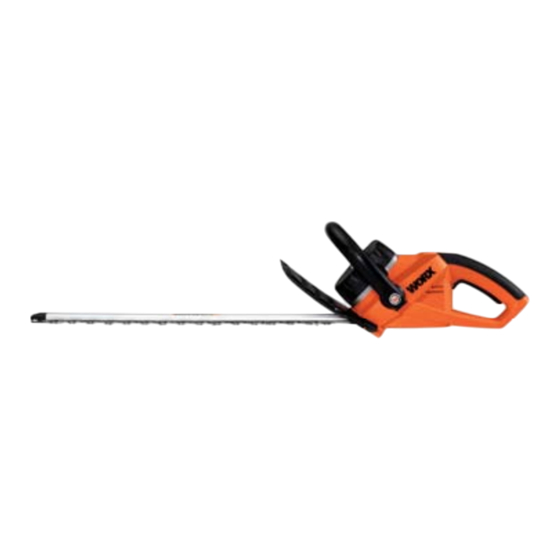

model WG250 Hedge Trimmer

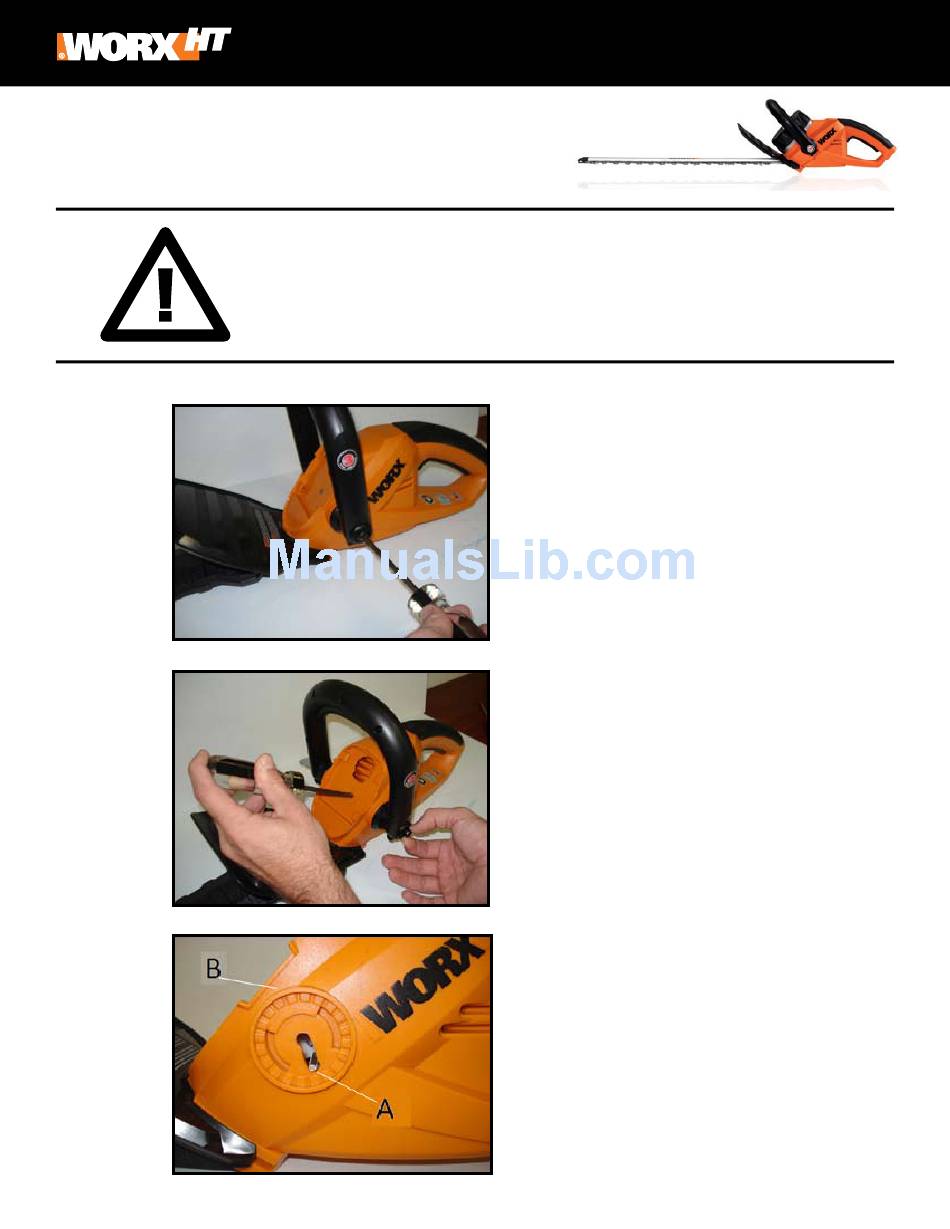

Assembly Procedure
• Place handle in the upright position
• Remove battery
• Loosen screw on left side of the handle
• Depress button to release screw
• Pull screw from handle and housing
• Remove handle assembly
• Hedge trimmer housing (B) and trigger pin (A)
Assembly Guide
WG250100108
1
