American Dryer Corp. ML-75DIII Installation Manual

Gas/electric/steam
Hide thumbs

Advertisement

Quick Links

Download this manual
ML-75DIII
(Gas/Electric/Steam)
Installation Manual

Advertisement

loading

Related Manuals for American Dryer Corp. ML-75DIII

Summary of Contents for American Dryer Corp. ML-75DIII

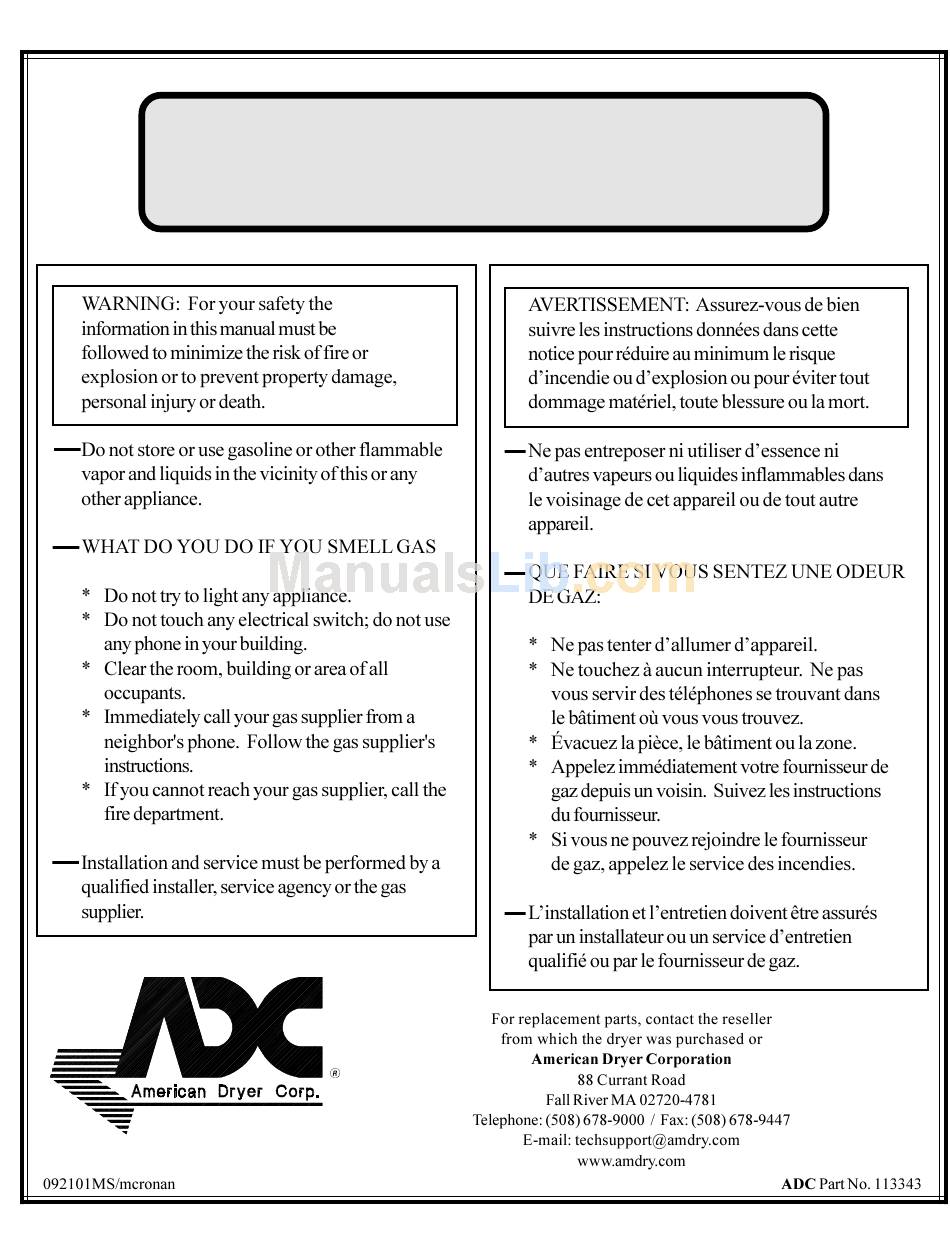

  • Page 1 ML-75DIII (Gas/Electric/Steam) Installation Manual...
  • Page 2 ML-75DIII...
  • Page 4 must never be MUST NEVER BE...
  • Page 5 Table of Contents...
  • Page 7 SECTION I...
  • Page 10 SECTION II BASKET (TUMBLER) DIAMETER BASKET (TUMBLER) DEPTH BASKET (TUMBLER) MOTOR DOOR OPENING (DIAMETER) BASKET (TUMBLER) VOLUME DRYERS PER 20’/40’ CONTAINER DRYERS PER 45’/48’ TRUCK VOLTAGE AVAILABLE APPROX. WEIGHT (UNCRATED) APPROX. WEIGHT (CRATED) HEAT INPUT AIRFLOW INLET PIPE SIZE VOLTAGE AVAILABLE APPROX.
  • Page 11 MLG-75D MLE-75 MLS-75...

  • Page 14: Section Iii

    SECTION III...
  • Page 24 ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER) IMPORTANT: 208 VAC and 240 VAC ARE NOT THE SAME. When ordering, specify exact voltage. NOTES: A. Fuse ratings are dual element, time delay, current limiting, class RK1 or RK5 ONLY. B. Circuit breakers are thermal/magnetic (industrial) motor curve type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used.
  • Page 25 ELECTRICAL SERVICE SPECIFICATIONS (PER DRYER) IMPORTANT: 208 VAC and 240 VAC ARE NOT THE SAME. When ordering, specify exact voltage. NOTES: A. Fuse ratings are dual element, time delay, current limiting, class RK1 or RK5 ONLY. B. Circuit breakers are thermal/magnetic (industrial) motor curve type ONLY. For others, calculate/verify correct breaker size according to appliance amp draw rating and type of breaker used.
  • Page 27 Single-Phase (1Ø) Electrical Connections Leads Black White Green Positive Neutral Ground...
  • Page 32 Manifold Pressure* 3.5 inches W.C. In-Line Pressure 6.0 - 12.0 inches W.C. Shaded areas are stated in metric equivalents Measured at outlet side of gas valve pressure tap when gas valve is on. MODEL kcal/hr Per Hour NUMBER Rating Rating MLG-75 200,000 50,400...
  • Page 35 OPERATING STEAM PRESSURE MAXIMUM MINIMUM HEAT INPUT (NORMAL LOAD) CONSUMPTION (APPROXIMATE) @ 125 PSI Shaded areas are stated in metric equivalents * Minimum operating pressure for optimum results. 862 kPa 125 psig 100 psig* 689 kPa 238.7 lbs/hr 108.3 kg/hr...

  • Page 37: Compressed Air Supply

    COMPRESSED AIR SUPPLY Normal Minimum Supply Maximum Supply Shaded areas are stated in metric equivalents AIR PRESSURE 80 PSI 5.51 bars 70 PSI 4.82 bars 90 PSI 6.20 bars...
  • Page 44 SECTION IV...
  • Page 45 SECTION V...
  • Page 47 SECTION VI...

  • Page 50: Section Vii

    SECTION VII...

  • Page 52: Section Viii

    SPIN TIME Adjustment Position Number Time in Seconds* DWELL (Stop) TIME Adjustment Position Number Time in Seconds* * Values shown are +/- 1 second. SECTION VIII TIM ING LEGEND 10.2...
  • Page 53 SECTION IX...
  • Page 55 SECTION X...
  • Page 57 SECTION XI...
  • Page 61 Fire Suppression System (F.S.S.) Theory of Operation...
  • Page 62 F.S.S.
