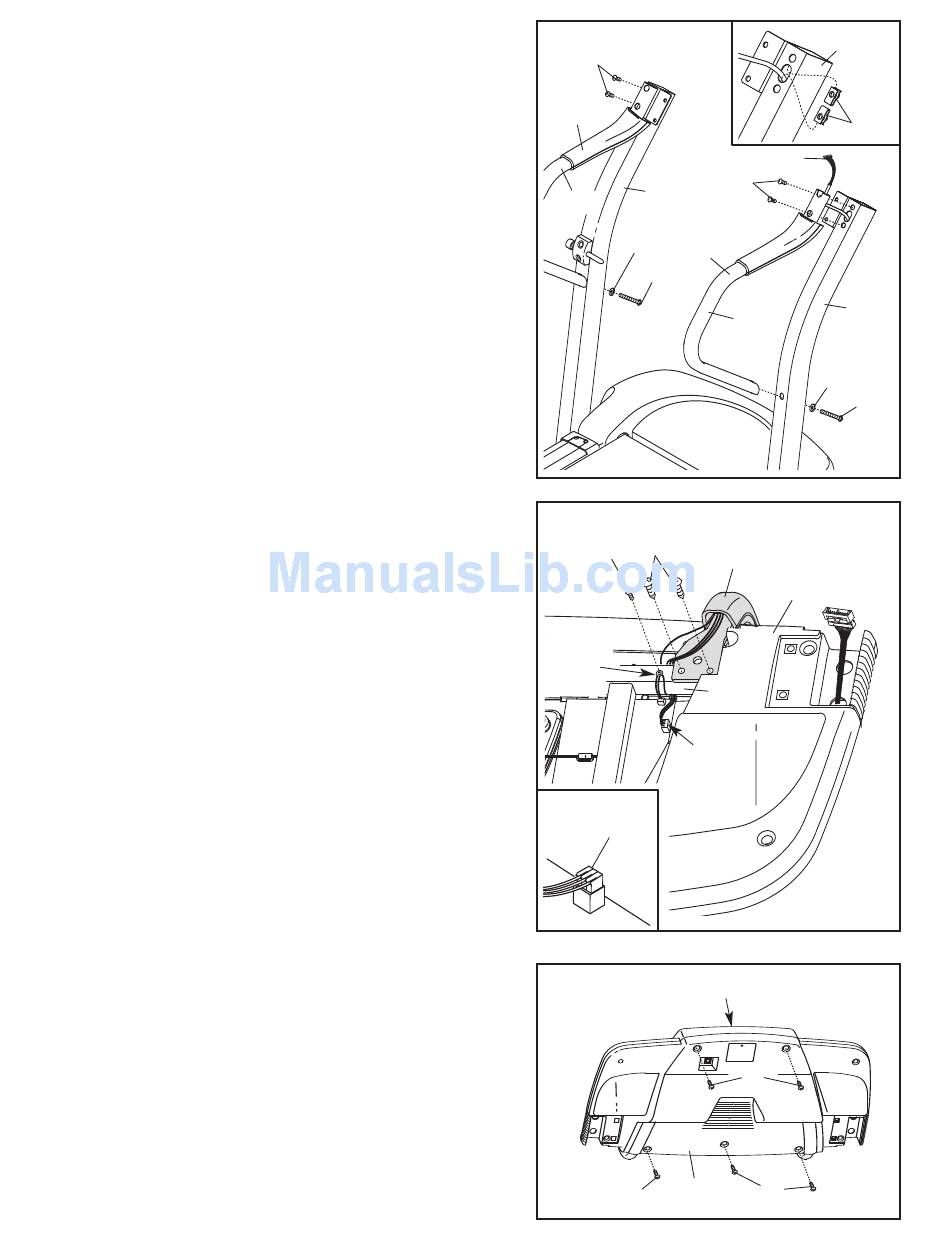

5. See the inset drawing. Make sure that there are two U-
nuts (112) in the upper end of each Upright (96). Note:
Extra U-nuts may be included.
Identify the right and left Handrails (108) (there is an
identification sticker on each Handrail). Hold the right
Handrail near the right Upright (96), and insert the Wire
Harness (118) into the large hole in the right Handrail
and out of the upper end as shown.
Next, hold the right Handrail (108) against the right Upright
(96). Tighten a 5/16" x 3 1/2" Bolt (121), with a 5/16"
Washer (128), three to four turns into the right Upright
and the lower end of the right Handrail. Then, tighten two
5/16" x 1" Bolts (113) into the upper end of the right
Handrail and the right Upright. Be careful not to drop
the Bolts into the Handrail. If necessary, raise or lower
the Handrail to thread the 5/16" x 1" Bolts into the
Upright. Firmly tighten all three Bolts.
Attach the left Handrail (108) to the left Upright (96) as
described above. Note: There is not a wire harness in the
left Upright.
6. Turn the Console (101) upside-down; be careful not to
scratch the Console. Remove the bands and the
Console Back (104) (see drawing 7) from the Console. If
the four Pulse Bar Screws (76) (only two are shown) are
in the Console Frame (80), remove them.
Hold the ends of the Pulse Bar (77) against the Console
Frame (80) as shown. Route the pulse wire from the
Pulse Bar under the Console Frame (80). Connect the
pulse wire to the connector on the back of the Console
(101) (see the inset drawing). The connectors should
slide together easily and snap into place. If the con-
nectors do not slide together easily and snap into place,
turn the pulse wire and try again. Attach the Pulse Bar to
the Console Frame with the four Pulse Bar Screws (76).
Firmly tighten the Pulse Bar Screws. Be careful not
to damage the wires.
Attach the end of each ground wire to the Console Frame
(80) with a 1/2" Ground Screw (52). Note: There are no
wires on the other side of the Pulse Bar (77).
7. Attach the Console Back (104) to the console assembly
with five 3/4" Screws (33). Be careful not to damage
any wires.
5
113
Left
108
128
121
6
76
52
Ground
Wires
Pulse
Wire
7
33
8
118
113
96
108
Right
128
77
101
80
Pulse
Wire
Console Assembly
33
104
33
119
112
96
121
