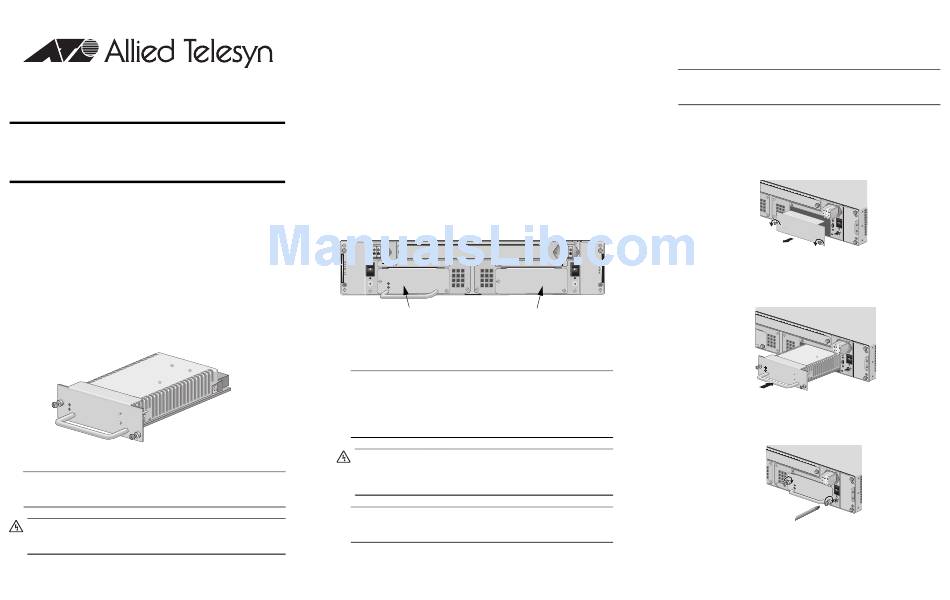

Allied Telesis CONVERTEON AT-PWR15 Installation Manual

CONVERTEON™ Family
AT-PWR15 Redundant Power Supply (DC)

Installation Guide

Allied Telesyn, Inc.
www.alliedtelesyn.com
Overview
The AT-PWR15, shown in Figure 1, is an DC redundant power supply (RPS)
used with the AT-CV5000 DC chassis only. When installed, the module
operates in a standby mode. If the standard power supply fails or loses power,
the AT-PWR15 module changes from standby to active and provides all
power to the system to prevent a network failure.
A T -P
W R 1
PO WE
5
R
FA UL
T
215
Figure 1. AT-PWR15 Power Supply Module
Note
The power supply is hot-swappable. You can install it without powering
OFF the AT-CV5000 chassis.
Warning
This unit may have more than one input. To reduce the risk of electric
shock, disconnect all power inputs prior to servicing the unit.
1
PN 613-50586-00 Rev A
Related Documents
This installation guide is an abbreviated version of the installation procedure.
For details on the components, features, and functions of this product, refer to
the following documents on our web site, www.alliedtelesyn.com:
❑ AT-CV5000 Media Converter Chassis Installation Guide
(PN 613-50580-00)
❑ AT-S70 Management Software User's Guide (PN 613-50617-00)
Package Contents
Make sure the following items are included in the shipping package. If any
item is missing or damaged, contact your Allied Telesyn sales representative
for assistance.
❑ One AT-PWR15 Redundant Power Supply (DC)
❑ This Installation Guide
❑ Warranty Card
Locations of the Power Supply Slots
Figure 2 illustrates the locations of the two power supply modules at the rear
of an AT-CV5000 DC model chassis.
A A
WARNING FOR CENTRALIZED DC POWER WARNING
This unit might have more than one power input. To This unit might have more than one power input. To
CONNECTION, INSTALL ONLY IN reduce the risk of electric shock, disconnect all power
40-60VDC reduce the risk of electric shock, disconnect all power
inputs before servicing unit. A RESTRICTED AREA. inputs before servicing unit.
AT-PWR15
POWER
FAULT
PS SLOT A - Primary PS SLOT B - Redundant
Figure 2. Locations of the Power Supply Slots on the Rear Panel of
an AT-CV5000 DC Model Chassis
Before installing a power supply, please note the following guidelines:
Note
The AT-CV5000 chassis comes with two slots designated for the power
supplies; however, it is shipped with one standard power supply
preinstalled and one empty slot for an optional power supply. The
redundant power supply can be ordered separately from your ATI sales
representative.
Warning
Make sure that both power supplies (primary and redundant) are rated
for the same power ratings; otherwise, the power supplies may get
damaged.
Note
For centralized DC power connection, install only in a restricted access
location.
2
Installing the AT-PWR15 Power Supply
To install the AT-PWR15, perform the following procedure:
1. Unpack the new AT-PWR15 module from its shipping container and store
the package material in a safe location.
Note
You must use the original shipping material if you need to return the
power supply module to Allied Telesyn.
2. Select the power supply slot in the AT-CV5000 chassis where you want to
install the AT-PWR15 power supply.
3. Loosen the two captive screws that secure the blank slot cover
(AT-CV5PNL2) of the selected power supply slot, and remove the blank
slot cover, as shown in Figure 3.
B B
FOR CENTRALIZED DC POWER
CONNECTION, INSTALL ONLY IN
A RESTRICTED AREA. 40-60VDC
4. Slide the AT-PWR15 module into the RPS slot, as shown in Figure 4.
221
Figure 4. Inserting the AT-PWR15 Module into the Power Supply Slot
5. Secure the AT-PWR15 module to the AT-CV5000 chassis by using a
Phillips screwdriver to tighten the captive screws, as shown in Figure 5.
This WAR NING B
reduc unit might
e the risk have more
of electri c shock than one
, discon power input.
nect all power To FOR CENT
CON NECT RALI
A REST ION, ZED INST DC
RICT ED ALL POW ER
AREA . ONLY IN
B
100- 240V
AC ~
218
Figure 3. Removing the Power Supply Slot Cover
This WAR NING B
reduc unit might
e the risk have more
of electri than c shock one
, discon power input.
nect all power To FOR CENT
CON NECT RALI
A REST ION, ZED INST DC
RICT ED ALL POW ER
AREA . ONLY IN
B
A T- P
W R
POW 15
ER
FAU LT
216
WAR
This NING unit B
reduc e the might have
risk of electr more than
ic shock one power
, discon nect input. To FOR
all power CON CEN
A RES NEC TRA LIZE
TRIC TION , INST D DC POW
TED ARE ALL ONLY ER
A T- P A. IN
W R 15 B
POW ER
FAU LT
220
Figure 5. Securing the AT-PWR15 Module
3
