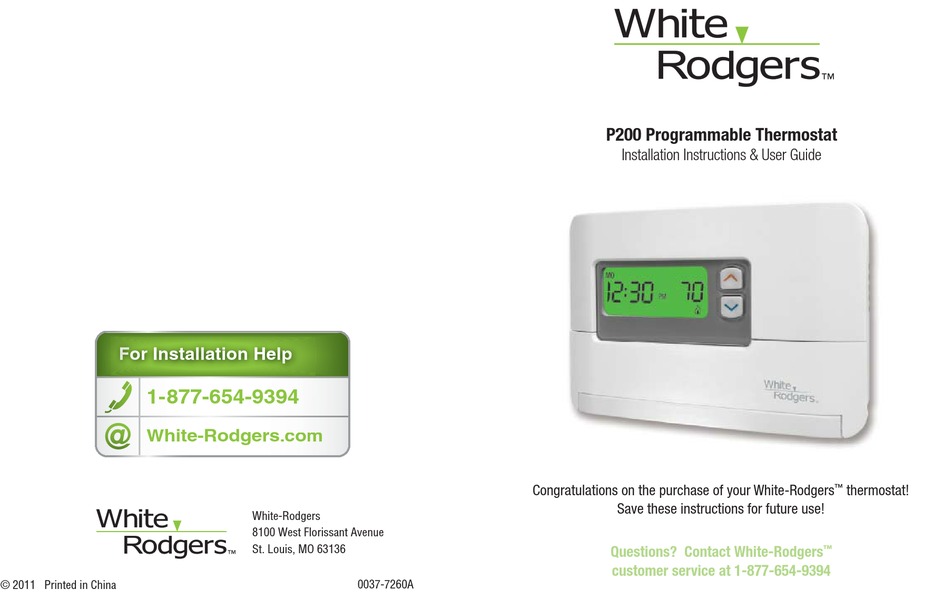

P200 Programmable Thermostat
Installation Instructions & User Guide
Congratulations on the purchase of your White-Rodgers
Save these instructions for future use!
Questions? Contact White-Rodgers
customer service at 1-877-654-9394
™
thermostat!
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for White Rodgers P200
Summary of Contents for White Rodgers P200
- Page 1 Help Help Help 1-877-654-9394 1 1 -877-654-9394 877 654 9394 White-Rodgers.com White-Rodgers.com Congratulations on the purchase of your White-Rodgers ™ thermostat! Save these instructions for future use! White-Rodgers 8100 West Florissant Avenue St. Louis, MO 63136 Questions? Contact White-Rodgers ™...
-
Page 2: Table Of Contents
Part 3: Quick Setup ..............Page 13 container of spilled mercury, place it in a suitable shipping container. 3.1 Get to know your thermostat Refer to www.White-Rodgers.com for location to send product containing 3.2 Set fan and system switches mercury. -
Page 3: Part 1 Before Getting Started
Do not turn the system back on until you have completed the installation and set up of the thermostat. If any of the items shown above are missing from your package, call White-Rodgers ™ customer service at 1-877-654-9394 before returning the thermostat to your place of purchase. -
Page 4: Part 2 Remove Old Thermostat And Install New Thermostat
3-Part unit Part 2 Remove Old Thermostat and Install New Thermostat Do not disconnect wires from the old thermostat until you label all the wires according to this manual. Cover Base Wallplate 2.1 Expose wires connected to 2-Part unit old thermostat 2.1.1 After turning off power to your heating &... -
Page 5: Label And Disconnect The Wires
2.1.2 Loosen all screws holding the old thermostat’s wallplate to 2.2 Label and disconnect the wires the wall. Do not disconnect the wires from terminals. Allow the wallplate to hang loosely on the wires. 2.2.1 Note you may see two types of wiring in the old thermostat: 1. - Page 6 Mislabeling the wires could result in damage to your tape them to the wall or tightly wind them heating and cooling unit. around a pencil or screwdriver. ™ Contact White-Rodgers Customer Service at 1-877-654-9394 if your old thermostat contains any wired terminals not listed in the table.
-
Page 7: Install New Thermostat's Wallplate
2.3 Install new thermostat’s wallplate 2.4 Match and connect wires Do not allow wires to touch each other or parts on 2.4.1 Match each wire coming from the wall to its corresponding the thermostat. Doing so could result in damage to your heating and terminal, as shown in the illustration below. -
Page 8: Set Switch
2.5 Set switch Part 3 Quick Setup Find a switch located in the lower right corner of the wallplate labeled 3.1 Get to know your thermostat ELEC/GAS. Set it as follows: Actual Desired Temp Up/Down • If you have either a gas or oil furnace, set the switch to GAS. Buttons Temperature Temperature... -
Page 9: Select Options
3.3 Select options Options Default Setting Additional Information 4. Do you want Select default ON. Press the PRGM and RUN buttons simultaneously. the Energy (enabled) Ensures the desired You will be prompted to answer 8 “Options” Management temperature is reached by questions, shown below. -
Page 10: Turn On Power To Your Heating And Cooling System
3.4 Turn on power to your heating and 3.6 Review pre-programmed schedule cooling system The thermostat is set to control temperature according to the following pre-programmed, energy-effi cient schedule. If this schedule meets your needs, no further action is required. 3.5 Set time and date Mon - Fri Sat - Sun... -
Page 11: Part 4 Additional Thermostat Features
3. Press the PRGM button. The start of the next weekday time Part 4 Additional thermostat features period (Day) is displayed. Program Day and then Evening and Night time periods for weekdays as you programmed Morning. 4.1 Customize the pre-programmed –... -
Page 12: Set Change Fi Lter Reminder
4.3 Bypass the schedule 4.4 Set change fi lter reminder (permanent hold) The thermostat can display a reminder when it is time to change the air fi lter on your heating and cooling system. You can manually override the currently-programmed temperature indefi... -
Page 13: Change Batteries
4.5 Change batteries 4.6 Adjust actual temperature display When the thermostat displays Your thermostat was accurately calibrated at the factory. However, if you would like the displayed temperature to read higher or lower than the actual temperature, you can adjust the displayed temperature by +/- 4 degrees. -
Page 14: Part 5 Troubleshooting Guide
5 Troubleshooting Guide (continued) Part 5 Troubleshooting Guide Problem Possible Cause Action Problem Possible Cause Action Snowfl ake 5-minute lockout No action needed: should No Display or Low Batteries Replace batteries icon blinking enabled to protect stop blinking after no backlight compressor 5 minutes Thermostat...
