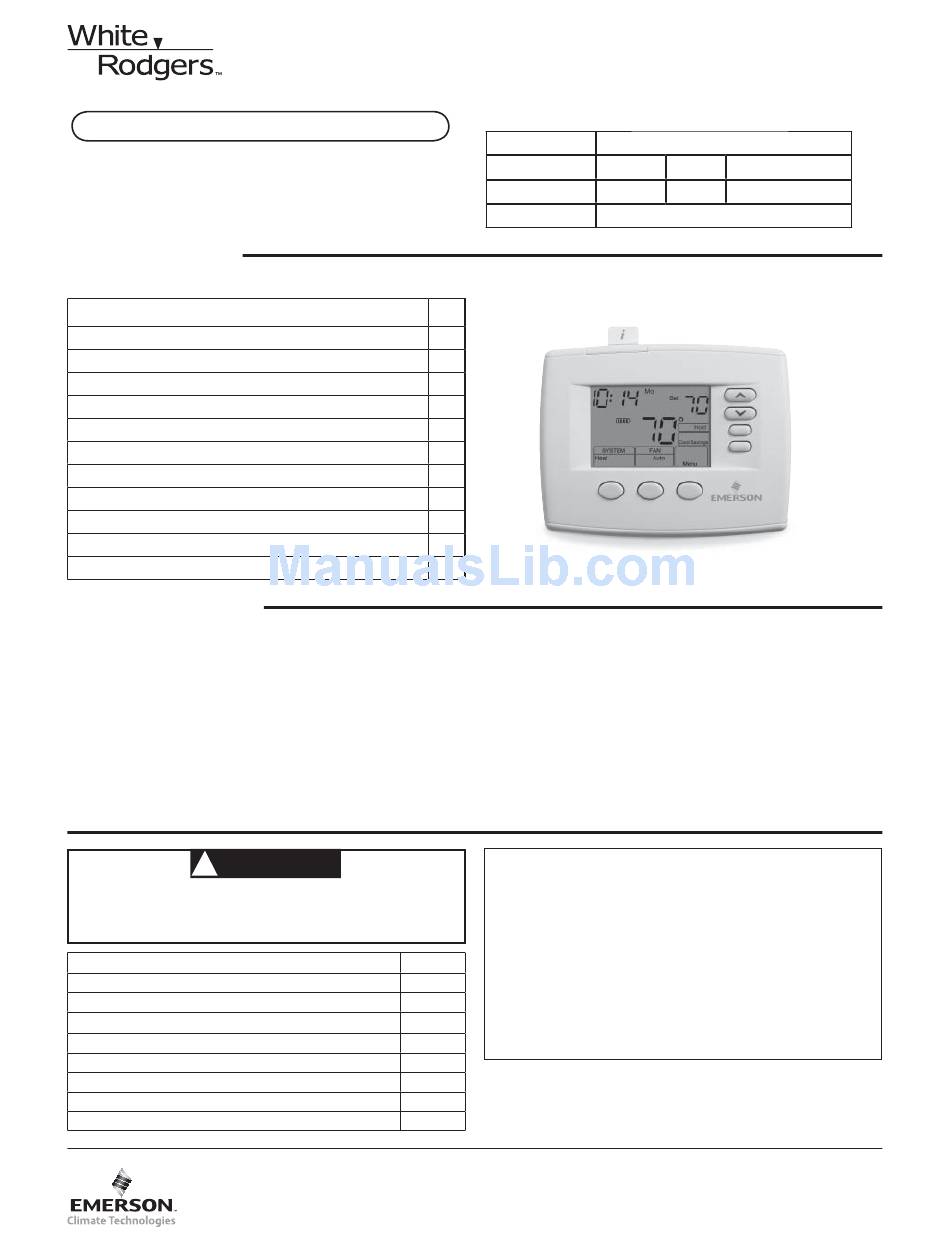

Blue universal thermostat with automatic heat/cool changeover option

Advertisement

Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS
CAREFULLY BEFORE INSTALLING OR OPERATING
THIS CONTROL COULD CAUSE PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
APPLICATIONS
THERMOSTAT APPLICATION GUIDE
Description
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (with Aux. or Emergency Heat)
Systems with up to 2 Stages Heat, 2 Stages Cool
Heat Only Systems (with optional fan switch)
Millivolt Heat Only Systems – Floor or Wall Furnaces
Cool Only Systems
Gas or Oil Heat
Electric Furnace
Hydronic (Hot Water) Zone Heat – 2 Wires
Hydronic (Hot Water) Zone Heat – 3 Wires
Compressor with Comfort Alert II Module (1F85CA only)

SPECIFICATIONS

Electrical Rating:
Battery Power .................................................... mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Input-Hardwire ................................................... 20 to 30 VAC
Terminal Load ........................................................... 1.5 A per terminal, 2.5A maximum all terminals combined
Setpoint Range ......................................................... 45° to 90°F (7° to 32°C)
Differential (Single Stage) ......................................... Heat 0.6°F; Cool 1.2°F (adjustable)
Differential (Heat Pump) ........................................... Heat 1.2°F; Cool 1.2°F (adjustable)
Operating Ambient .................................................... 32° to +105°F (0° to +41°C)
Operating Humidity ................................................... 90% non-condensing max.
Shipping Temperature Range ................................... -40° to +150°F (-20° to +65°C)
Dimensions Thermostat ............................................ 4.0"H x 5.11"W x 1.3"D
CAUTION
!
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Index
Installation
Wiring Connections
Wiring Diagrams
Thermostat Quick Reference
Installer Confi guration Menu
Operating Your Thermostat
Programming
Troubleshooting
Blue Universal Thermostat with
Automatic Heat/Cool Changeover Option
Single Stage, Multi-Stage or Heat Pump
Installation and Operating Instructions for Model:
Model
1F85CA-0471
1F85-0471
1F83-0471
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
ATTENTION: MERCURY NOTICE
This product does not contain mercury. However, this product
may replace a product that contains mercury.
Mercury and products containing mercury must not be
discarded in household trash. Do not touch any spilled
Page
mercury. Wearing non-absorbent gloves, clean up any spilled
2
mercury and place in a sealed container. For proper disposal
2
of a product containing mercury or a sealed container. Refer
to www.white-rodgers.com for location to send product
3
containing mercury.
4
5
7
7
9
www.white-rodgers.com
Programming Choices
5/1/1 Day
5/2 Day
Non-Programmable
5/1/1 Day
5/2 Day
Non-Programmable
Non-Programmable
1F85CA-0471 Thermostat
PART NO. 37-6920B
Replaces 37-6920A
0905
1

Advertisement

Table of Contents
loading

Summary of Contents for White Rodgers 1F85-0471

  • Page 1: Specifications

    Automatic Heat/Cool Changeover Option Single Stage, Multi-Stage or Heat Pump Installation and Operating Instructions for Model: Model 1F85CA-0471 5/1/1 Day 1F85-0471 5/1/1 Day 1F83-0471 1F85CA-0471 Thermostat ATTENTION: MERCURY NOTICE This product does not contain mercury. However, this product may replace a product that contains mercury.
  • Page 2: Wiring Connections

    INSTALLATION WARNING Thermostat installation and all components of the control system shall conform to Class II circuits per the NEC code. Remove Old Thermostat A standard heat/cool thermostat consists of three basic parts: The cover, which may be either a snap-on or hinge type. The base, which is removed by loosening all captive screws.
  • Page 3: Wiring Diagrams

    WIRING DIAGRAMS Heat Pump Connections If you do not have a heat pump system, refer to fi gures 4-6. Refer to equipment manufacturers’ instructions for specifi c system wiring information. You can confi gure the thermostat for use with the following heat pump systems.
  • Page 4: Home Screen Description

    THERMOSTAT QUICK REFERENCE Home Screen Description Displays the power level of the 2 “AA” batteries: indicates good power level indicates batteries at about half power. “Change ” indicates batteries are low and should be replaced with 2 new premium brand “AA”...
  • Page 5: Installer/Configuration Menu

    INSTALLER/CONFIGURATION MENU With thermostat in Heat, Cool or Auto, in normal operation, press the Menu button for at least 5 seconds. The display will show item #1 in the table below. Press Menu button to advance to the next menu item. Press Shaded items not available on 1F83 model.
  • Page 6 INSTALLER/CONFIGURATION MENU This control can be confi gured for: MS 2 – Multi-Stage System (no heat pump) HP 1 – Heat Pump with one stage of compressor HP 2 – Heat Pump with two stage compressor or two compressor system, Gas or Electric backup SS 1 –...
  • Page 7: Operating Your Thermostat

    INSTALLER/CONFIGURATION MENU 20) Comfort Alert with Active Protection – Turn this feature ON to enable active protection. This allows the thermostat to identify fault codes sent by the Comfort Alert module when compressor damage is possible and react to those codes by turning the compressor off. Fault codes from the Comfort Alert module will fl...
  • Page 8 PROGRAMMING (For Programmable Model Only) Enter the Heating Program Press SYSTEM button to select “Heat” in the system switch area indicating the active mode being pro- grammed. Press the Menu button and then press Schedule. The top of the display will show the day(s) being pro- grammed.
  • Page 9: Troubleshooting

    TROUBLESHOOTING Reset Operation Note: When thermostat is reset, installer confi guration menu settings and programming will reset to factory settings. If a voltage spike or static discharge blanks out the display or causes erratic thermostat operation, you can reset the thermostat by removing the wires from terminals R and C (do not short them together) and removing batteries for 2 minutes.
  • Page 10 TROUBLESHOOTING Comfort Alert Codes The Comfort Alert diagnostics product monitors the air con- ditioning outdoor systems with single phase Copeland Scroll compressors. Abnormal system and electrical conditions are indicated by fl ashing ALERT codes on the yellow LED on the Comfort Alert module.
  • Page 11 NOTES...
  • Page 12 HOMEOWNER HELP LINE: 1-800-284-2925 White-Rodgers is a division of Emerson Electric Co. The Emerson logo is a trademark and service mark www.white-rodgers.com of Emerson Electric Co.
