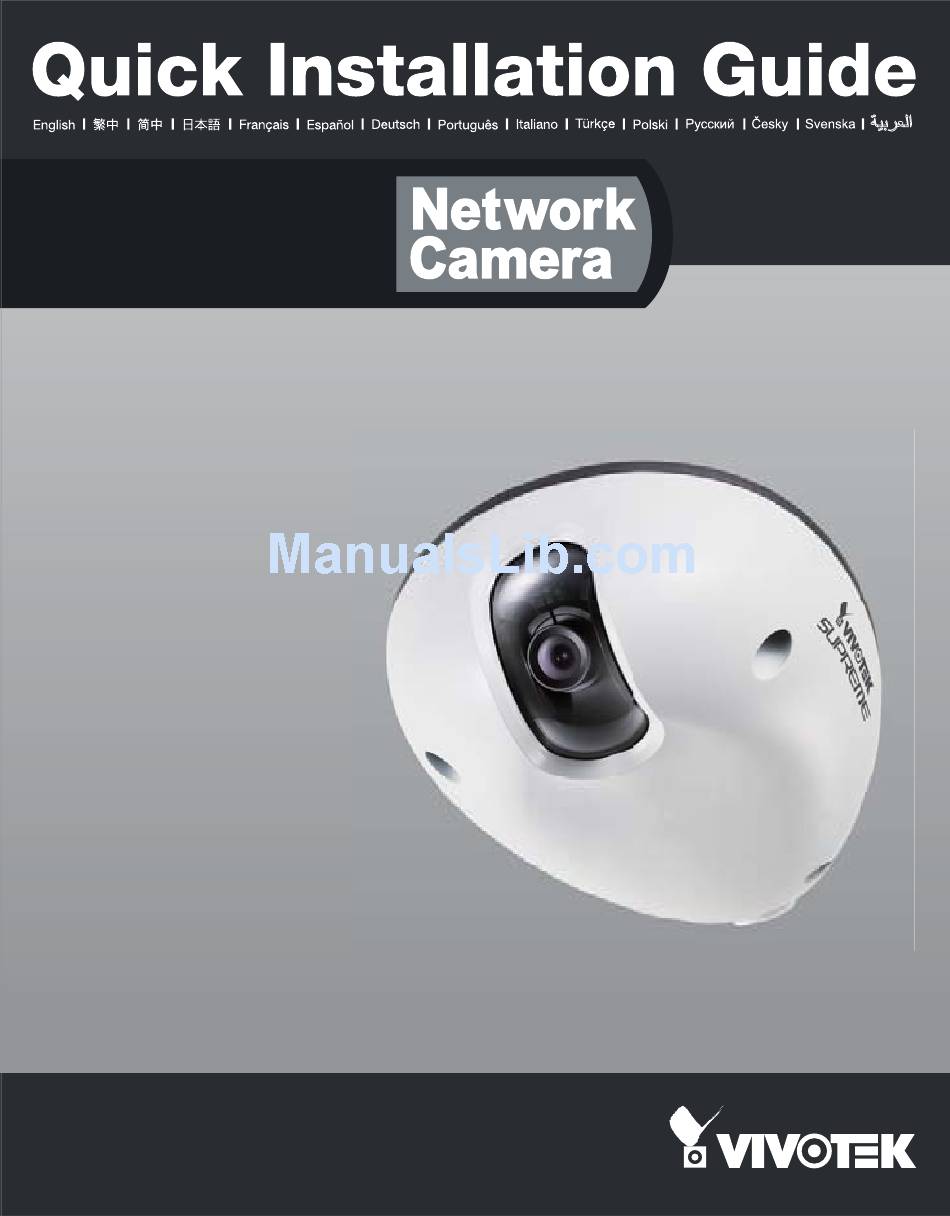

- Page 1 MD8562/8562D 2MP . Vandal-proof . Mobile Surveillance...
- Page 2 Warning Before Installation Refer to your user’s manual for Power off the Network Camera as soon as smoke or unusual odors are the operating temperature. detected. Contact your distributor in the event of occurrence. Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces.
-
Page 3: Package Contents
Package Contents MD8562 MD8562D (With power cord) (PoE) General I/O Terminal Block Ethernet 10/100 RJ45 Plug Microphone In (pink) Power Cord Socket (black) Software CD Alignment Sticker Quick Installation Guide / Ground Wire / Screws Warranty Card Screwdriver Moisture Absorber / RJ45 Female/... -
Page 4: Physical Description
Physical Description Inner View Reset button Status LED Lens Screw Holes MicroSD/SDHC Card Slot Outer View IMPORTANT! Record the MAC address before installing the camera. Waterproof Level: IP67 EN - 3... -
Page 5: Hardware Installation
Hardware Installation First, use the supplied screwdriver to detach the dome cover from the camera base. Insert your MicroSD/SDHC Card if necessary. Tamper-proof Screw Dome Cover Plastic Cover Camera Base Then, follow the steps below to install the camera to either a ceiling or wall: 1. -
Page 6: Wall Mount
Wall Mount IMPORTANT! Please secure the screws tightly to avoid moisture. Installing the Ground Wire As shown in the figure below, secure one side of the supplied ground wire to the screw hole, route the wire, and attach the other end to a junction box or a grounded conduit. EN - 5... -
Page 7: Network Deployment
Network Deployment General Connection (without PoE) (MD8562D) 1. If you have external DI devices, make the connection from general I/O terminal block. 2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch. Use a Category 5 Cross Cable when Network Camera is directly connected to PC. 3. - Page 8 Power over Ethernet (PoE) (MD8562) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the camera to a PoE-enabled switch via Ethernet cable.
-
Page 9: Assigning An Ip Address
“Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the serial number on the package box label to open a browser management session with the Network Camera. -
Page 10: Ready To Use
Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents. -
Page 11: Fine-Tune The Camera Focus
Fine-tune the Camera Focus The focus of this network camera is set from 1.0 meter to infinity by factory default. If you want to focus on objects closer than 1.0m or the lens has lost focus, please fine tune it in the following way. 1. - Page 12 P/N:625015501G Ver1.1 Copyright 2011 VIVOTEK INC. All rights reserved.
