Transcend StoreJet 25 User Manual

Portable hard drives (version 1.1)
Hide thumbs Also See for StoreJet 25:
Table of Contents

Advertisement

Quick Links

See also: User Manual
User's Manual
Portable Hard Drives
®
StoreJet
25
(Version 1.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StoreJet 25 and is the answer not in the manual?

Questions and answers

Related Manuals for Transcend StoreJet 25

Summary of Contents for Transcend StoreJet 25

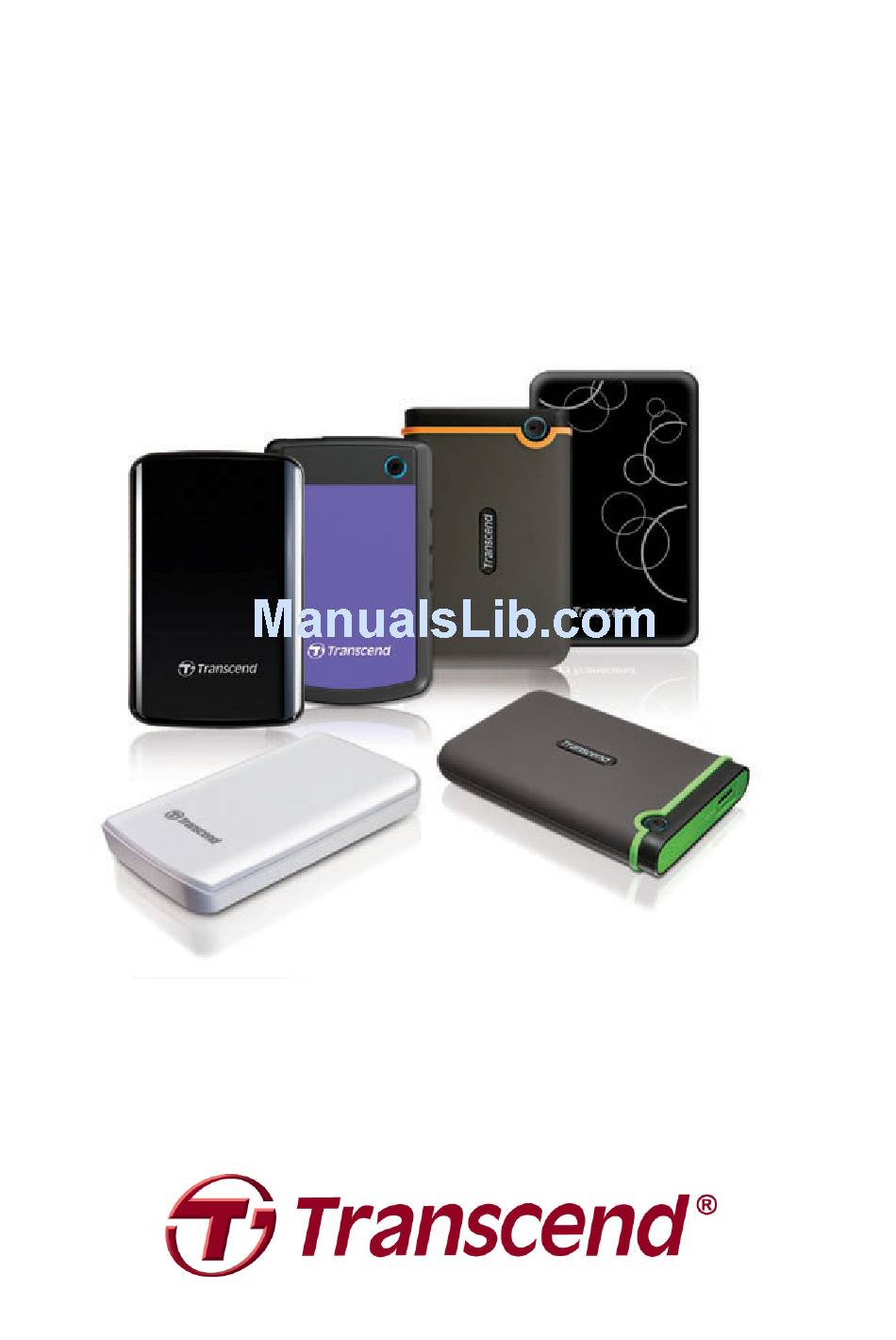

  • Page 1 User’s Manual Portable Hard Drives ® StoreJet (Version 1.1)

  • Page 2: Table Of Contents

    Table of Contents Introduction︱ ︱ ︱ ︱ ..................1 Features︱ ︱ ︱ ︱ ....................1 System Requirements︱ ︱ ︱ ︱ ..............2 Safety Precautions︱ ︱ ︱ ︱ ................2 General Use........................2 Backing up Data......................2 Transporting........................2 Power ..........................2 Reminders ........................2 Connecting to a Computer︱...

  • Page 3: Introduction

    In addition, the StoreJet 25 comes with very useful software* that can increase your mobile productivity. This User’s Manual is designed to help you get the most from your new device. Please read it in detail before using the StoreJet 25. Note: 1.

  • Page 4: System Requirements

    5℃. Do not drop your StoreJet 25. • Do not allow your StoreJet 25 to come in contact with water or any other liquids. • Do not use a damp/wet cloth to wipe or clean the exterior case.

  • Page 5: Transporting

    StoreJet 25 if necessary (SJ25D3) Use only the USB cable that came with the StoreJet 25 to connect it to a computer, and • always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged.

  • Page 6: Connecting To A Computer

    USB 2.0 / 3.0 Connector Plug the small end (1) of the USB cable into the StoreJet 25. Plug the large end (2) of your USB cable into any available USB2.0 or USB3.0 port on your desktop or notebook (compatibility not guaranteed).
  • Page 7 USB Cable into the correct port on your computer (USB 3.0 ports are usually color-coded to differentiate them from USB 2.0) Linux users may have to configure the StoreJet 25 manually. To do this, first create a directory for the •...
  • Page 8 Note: “New Volume” is an example drive. The drive name on your Mac computer may differ Once connected, you can use the StoreJet 25 as an external hard drive to transfer data to and from your computer. Simply drag and drop files or folders onto the Local Disk, Volume, or drive letter that represents the StoreJet 25.

  • Page 9: One Touch Backup

    One Touch Backup︱ ︱ ︱ ︱ (Select StoreJet models only) To enable the One Touch Auto-Backup button, you must first run the preloaded Transcend Elite software (located in the Transcend Elite directory of your StoreJet). Once you have successfully created a Backup Task within Transcend Elite, you can then use the StoreJet’s One Touch Auto-Backup button to instantly backup and synchronize your data (download the Transcend Elite User’s Manual at...

  • Page 10: Disconnecting From A Computer

    WARNING! To prevent data loss, always use this procedure to remove the StoreJet ® from Windows ® Drag and drop the Disk icon that represents your StoreJet 25 into the Trashcan. Then unplug your StoreJet 25 from the USB port.

  • Page 11: Linux

    ® Linux Execute umount /mnt/Storejet to un-mount the device. Then unplug your StoreJet 25 from the USB port.

  • Page 12: Formatting The Hard Drive

    Formatting the Hard Drive︱ WARNING! Formatting the disk will erase all of the data on your StoreJet 25. You must have Administrator Rights to format in Windows. ® Windows 1. Download the StoreJet Format Utility from Transcend’s online Download Center at www.transcend-info.com/downloads...

  • Page 13: Windows 7/Vista

    1. Download the StoreJet Format Utility from Transcend’s online Download Center at www.transcend-info.com/downloads 2. When the download is complete, extract the downloaded ZIP file to your computer’s hard drive (not the StoreJet 25).  3. Plug the StoreJet 25 into an available USB port on your Windows 7/Vista computer.
  • Page 14 5. Right-click “StoreJetFormatter.exe” and select “Run as Administrator.” 6. The User Account Control window will appear. Select “Allow” to continue. 7. In the StoreJet Format Utility window, click the “Refresh” button. 8. The program will automatically detect the StoreJet 25 drive.
  • Page 15 9. Press “Start”.

  • Page 16: Mac ® Os

    12. Click the “Close” button to finish and exit. ® 1. Plug the StoreJet 25 into an available USB port on your MAC computer. 2. Unplug all other external storage devices from your computer. This is to prevent accidental format of a different drive.
  • Page 17 7. Input a name for your new drive (otherwise, your drive will be named “Untitled”) 8. Click the “Erase” button in the bottom right corner of the window 9. Click “Erase” again to confirm.

  • Page 18: Linux

    10. Click the “Close” button to finish and exit. ® Linux 1. Plug the StoreJet into an available USB port on your Linux computer. 2. Unplug all other USB storage devices from your computer. This is to prevent accidental format of a different USB drive. 3.

  • Page 19: Troubleshooting

    My operating system cannot detect the StoreJet 25 Check the following: 1. Is your StoreJet 25 properly connected to the USB port? If not, unplug it and plug it in again. If it is properly connected, try using another available USB port.
  • Page 20 2. Is the file larger than 4GB? If so, please see below: The StoreJet 25 default file system is FAT32, which allows it to be recognized on most types of computers, game consoles and media playback devices. However, the FAT32 file system does not support large files that exceed 4GB in size.

  • Page 21: Specifications

    Specifications︱ Storage Media 2.5-inch SATA Hard Disk Drive Power Supply 5V DC supplied from the USB port(s) USB 3.0 (5Gb/s) Connection Interface USB 2.0 (480Mb/s) 5℃ (41℉) to 55℃ (131℉) Operating Temperature Certificates CE, FCC, BSMI Warranty Three-year Limited...

  • Page 22: Recycling & Environmental Considerations

    Recycling & Environmental Considerations︱ ︱ ︱ ︱ Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.

  • Page 23: Three-Year Limited Warranty

    Transcend Warranty Policy. Proof of the original purchase date is required for warranty service. Transcend will inspect the product and in its sole discretion repair or replace it with a refurbished product or functional equivalent. Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made.

Table of Contents
