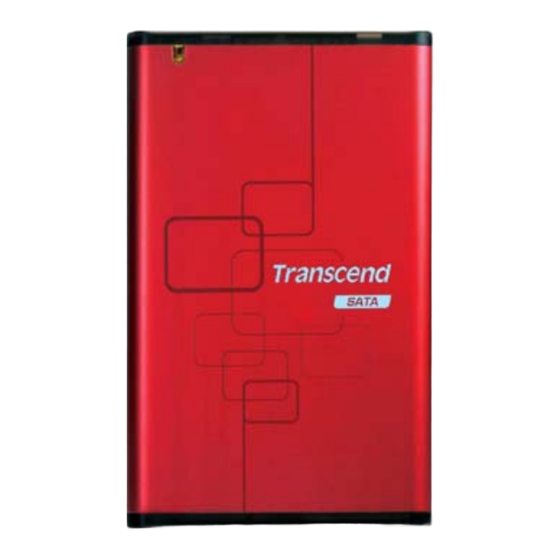

Transcend StoreJet 2.5 User Manual
Usb 2.0
Hide thumbs
Also See for StoreJet 2.5:
- User manual (23 pages) ,
- Specifications (3 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Transcend StoreJet 2.5
Summary of Contents for Transcend StoreJet 2.5

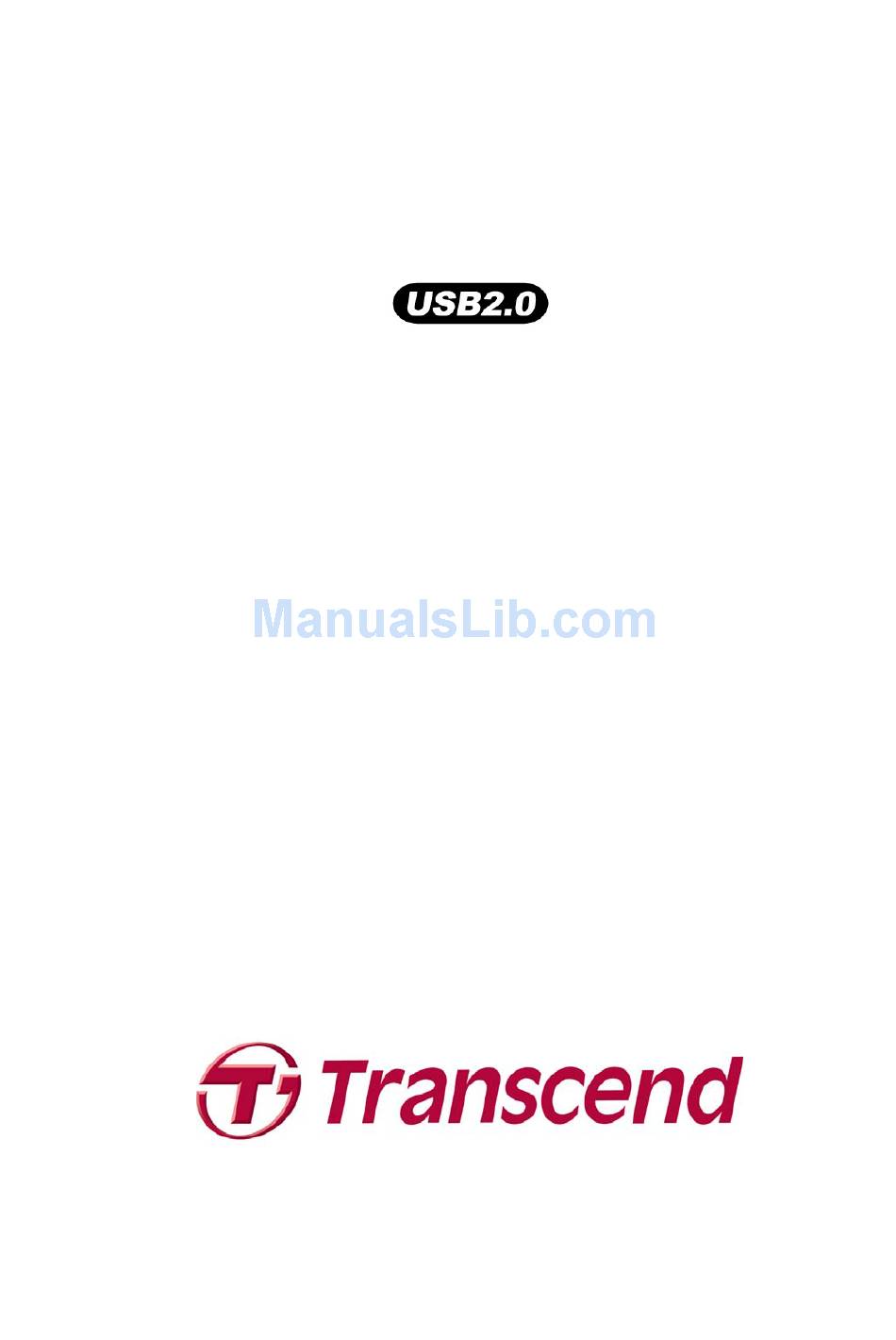

- Page 1 ™ StoreJet User’s Manual (Version 1.2)
-
Page 2: Table Of Contents
Kernel 2.4, or Later ..........12 Formatting the Hard Drive ..............13 ® Windows 2000/XP ......................13 Windows Vista™ ......................14 Troubleshooting ................18 ™ StoreJet 2.5 IDE series ..............20 ™ StoreJet 2.5 SATA series ............... 22 Transcend Limited Warranty ............23... -
Page 3: Introduction
Introduction ™ Congratulations on purchasing Transcend’s StoreJet 2.5. This tiny, Ultra-portable, Hi-Speed USB storage device is the perfect data management system for uploading, downloading, storing and transferring your vital data and information. With a huge storage capacity and Hi-Speed USB 2.0 data ™... -
Page 4: Features
Powered via the USB port. No external power or battery needed • Hi-Speed data transfer rates up to 480Mbits per second • Additional StoreJet Software pack: Transcend Elite (helps you manage your data) • LED indicates the status of power on, data transfer activity System Requirements Desktop or notebook computer with a working USB port. -
Page 5: Safety Precautions
In a closed car that is in direct sunlight Backing Up Data • Transcend does NOT take any responsibility for data loss, or damage during operation. ™ If you decide to store data on your StoreJet 2.5 we strongly advise that you regularly backup the data to a computer, or other storage medium. -
Page 6: Reminders
• ™ Please use the Mini USB to USB A-Type cable that came with the StoreJet 2.5 to connect it to a computer, and always ensure that the cable you are using is in good condition. NEVER use a cable that is frayed or damaged. •... -
Page 7: Product Overview
Product Overview Figure 1. StoreJet 2.5 Screws x 2 Mini USB Port OneTouch Auto-Backup Button... -
Page 8: Installing A Hard Drive
Installing a Hard Drive Installing a Hard Drive ™ If you purchased a StoreJet 2.5 that does not have a Hard Disk Drive already installed, please read this section, otherwise you can skip to the “Driver Installation” section. ™ Open the StoreJet 2.5 by removing the two screws from either side of the top cover, as indicated in the diagram. - Page 9 Figure 4. Connect the hard drive to the IDE/SATA adapter...
- Page 10 ™ Carefully reinsert the IDE/SATA adapter and its connected 2.5” hard drive into the StoreJet 2.5 and reattach the screws to the top cover. Figure 5. Reinsert the adapter plus drive and reattach the screws...
-
Page 11: Driver Installation
Driver Installation ® Driver Installation for Windows 2000, XP and Vista ® No drivers are required. These Windows Operating Systems have built-in drivers to support the ™ ™ StoreJet 2.5. Plug your StoreJet into an available USB port and Windows will install the necessary ™... -
Page 12: Connecting To A Computer
Connecting to a Computer ™ If you want to use the StoreJet 2.5 as an External Hard Disk Drive to upload/download data to, or from your computer you will need to connect it to a USB port on the computer using the provided Large End Small End Extra USB connector used to provide additional power... - Page 13 Local Disk drive letter that represents the StoreJet 2.5. ™ If you have setup the bundled Transcend Elite you can press the StoreJet 2.5’s OneTouch “Backup Button” once to Backup your data. Figure 10. OneTouch Auto-Backup Button ™...
-
Page 14: Disconnecting From A Computer
Disconnecting from a Computer ™ NEVER disconnect the StoreJet from a Computer when its LED is flashing. ® ™ Removing the StoreJet 2.5 in Windows 2000, XP and Vista 1. Select the Hardware icon on the system tray. 2. The Safely Remove Hardware pop-up window will appear. Select it to continue. Figure 11. -
Page 15: Formatting The Hard Drive
You must have Administrator Rights to format in Windows 2000, XP, or Vista. ® Windows 2000/XP 1. Download the StoreJet Format Utility from Transcend’s online Download Center at http://www.transcendusa.com/Support/DLCenter/index.asp (the software can be located by selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model) 2. -
Page 16: Windows Vista
10. Click the “Close” button to finish and exit. Windows Vista™ 1. Download StoreJet Format Utility from Transcend’s online Download Center http://www.transcendusa.com/Support/DLCenter/index.asp (the software can be located by selecting “Storage Devices -> StoreJet Drives -> any StoreJet product -> any StoreJet model) 2. - Page 17 different USB drive. 5. Right-click “StoreJetFormatter.exe” and select “Run as Administrator.” 6. The User Account Control window will appear. Select “Allow” to continue. 7. In the StoreJet Format Utility window, click the “Refresh” button. 8. The program will automatically detect the StoreJet 25 drive.
- Page 18 9. Press “Start”. 10. A confirmation window will appear. Press OK to begin formatting the drive.
- Page 19 11. The format process may take a few minutes. When complete, an “O.K.” message will appear in the bottom right-hand corner of the window. Figure 15: Format Complete 12. Click the “Close” button to finish and exit.
-
Page 20: Troubleshooting
™ your StoreJet 2.5 for repair. If you are unable to solve a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our websites. ™... - Page 21 ™ The StoreJet 2.5’s internal hard drive comes formatted for FAT32. If you want to backup a Mac computer you will need to format the drive for HFS+ using the Mac Disk Utility. ™ Cannot detect the StoreJet 2.5 in Linux ™...
-
Page 22: Storejet ™ 2.5 Ide Series
Max. Transfer Speeds: 480Mbits per second 5℃ (41℉) to 55℃ (131℉) • Operating Temperature: • Certificates: CE, FCC, BSMI • Warranty: 2-years Ordering Information Device Description Memory Size Transcend P/N ™ StoreJet 2.5 Silver TS0GSJ25S ™ StoreJet 2.5 Red TS0GSJ25R... -
Page 24: Storejet ™ 2.5 Sata Series
480Mbits per second Operating 5℃ (41℉) to 55℃ (131℉) Temperature: Certificates: CE, FCC, BSMI Warranty: 2-years Ordering Information Device Description Memory Size Transcend P/N ™ StoreJet 2.5 SATA Silver TS0GSJ25S-S ™ StoreJet 2.5 SATA Blue TS0GSJ25B-S ™ StoreJet 2.5 SATA Red TS0GSJ25R-S ™... -
Page 25: Transcend Limited Warranty
Transcend is not responsible for recovering any data lost due to the failure of a ™...
