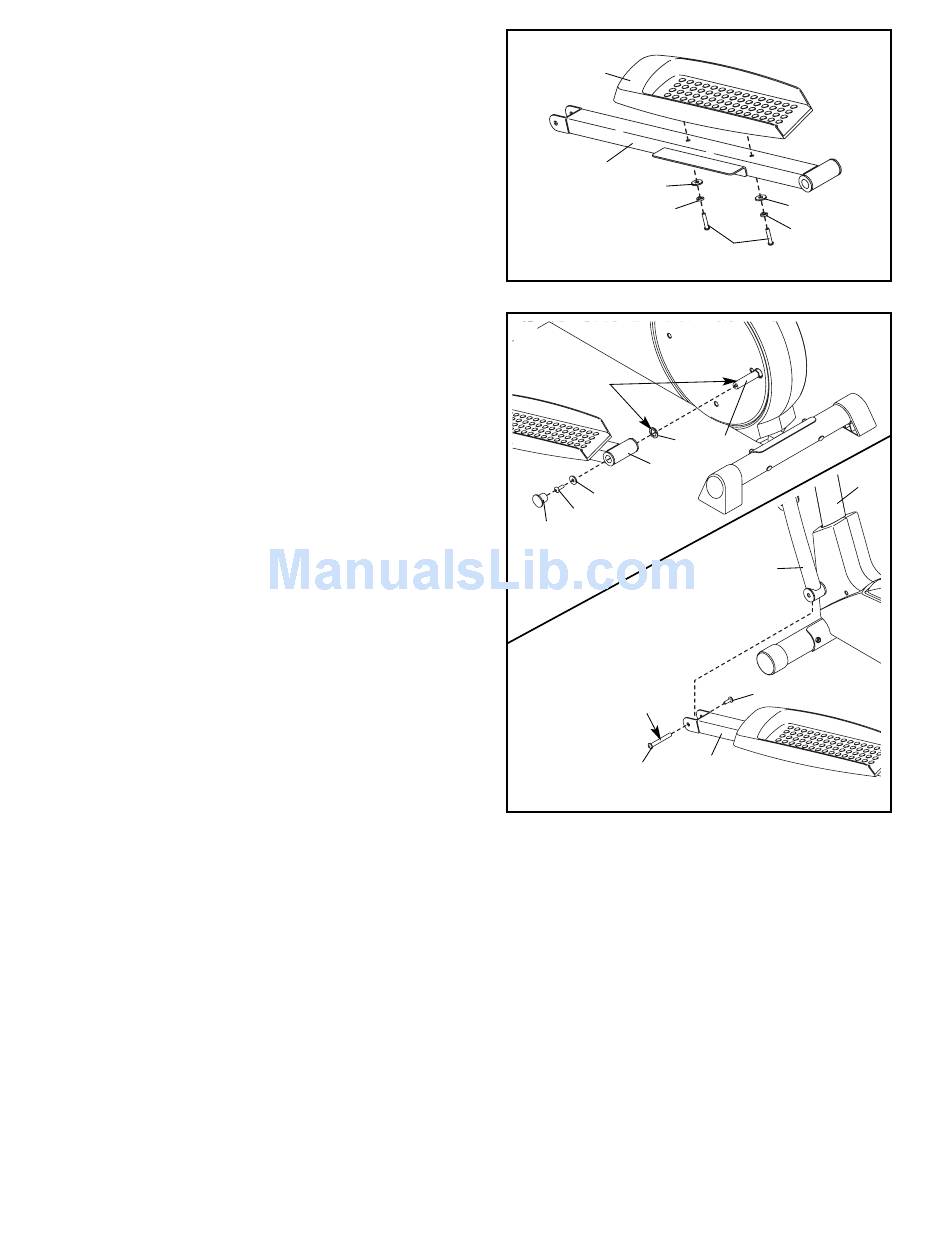

7. Identify the Left Pedal Leg (11), which is marked
with a sticker. Attach the Left Pedal (13) to the Left
Pedal Leg with two M8 x 52mm Button Screws (27),
two M8 Split Washers (28), and two M8 Washers
(71).
Attach the Right Pedal (not shown) in the same
way.
8. Apply a small amount of grease to the axle on the
left Disc Crossbar (16).
Slide the Left Pedal Leg (11) onto the axle on the
left Disc Crossbar (16). Apply a small amount of
grease to a Large Wave Washer (76) and press it
onto the end of the left Disc Crossbar. Next, slide an
M10 Washer (35) onto an M10 x 27mm Patch
Screw (40), and tighten the Patch Screw into the
axle. Then, press a Pedal Leg Endcap (74) into the
Left Pedal Leg.
Hold the lower end of the left Handlebar Leg (5)
inside of the bracket on the front of the Left Pedal
Leg (11). Next, apply grease to an M6 Bolt Set (25).
Attach the Handlebar Leg to the Left Pedal Leg with
the Bolt Set. Do not overtighten the Bolt Set; the
Handlebar Leg must pivot freely.
Attach the Right Pedal Leg (not shown) to the right
side of the elliptical exerciser in the same way.
See step 5. Tighten the M10 x 74mm Button Bolts
(7) in the Upright (2). See step 6. Tighten the M8 x
45mm Button Bolts (50) in the Handlebar Legs (5).
9. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
7
13
11
71
8
Grease
35
40
74
Grease
25
8
71
28
28
27
76
16
11
5
25
11
2
