ProForm 10.0 Ce Elliptical User Manual page 7

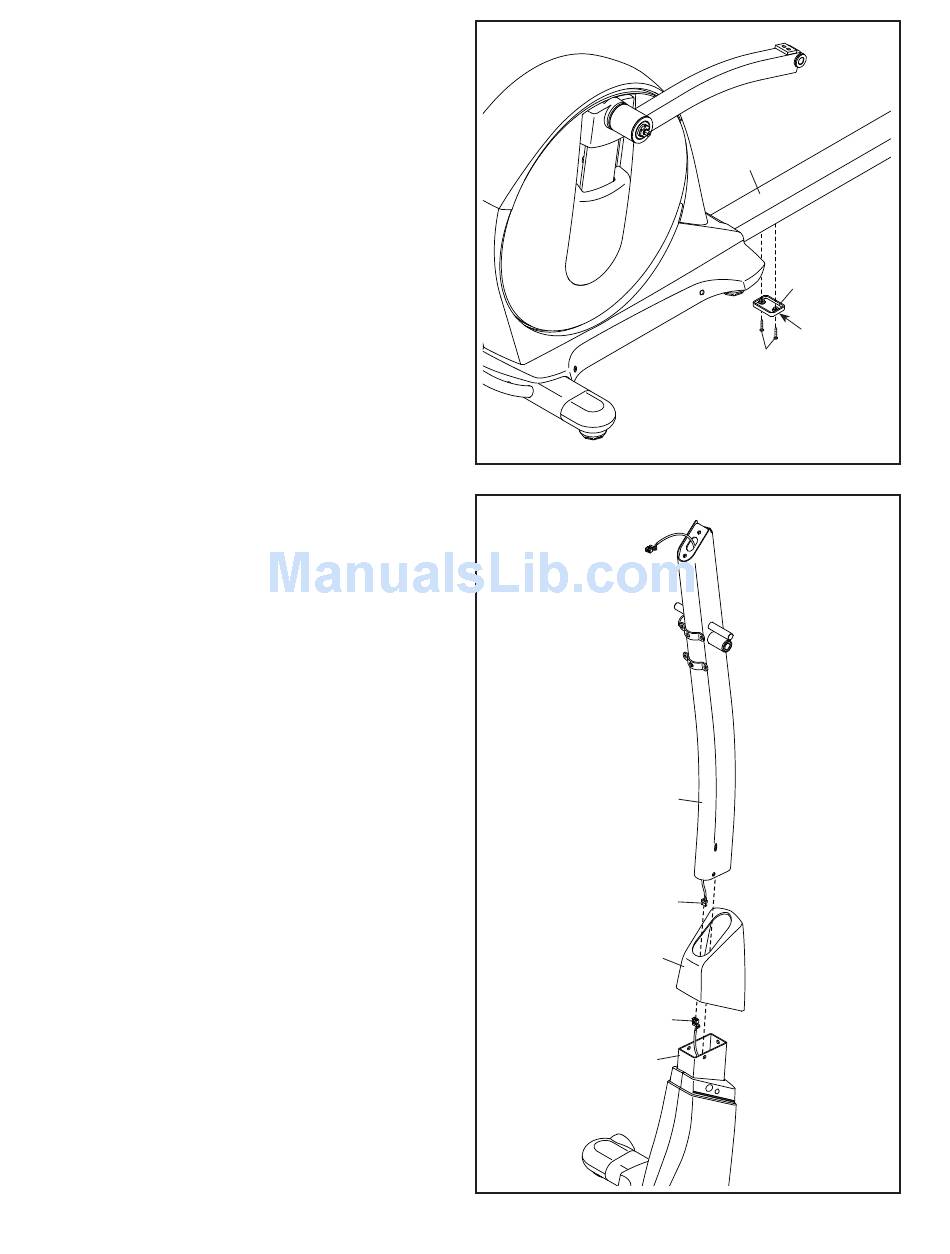

3. Orient the Small Bumper (13) so that the
recessed holes are in the indicated location.
While a second person lifts the Frame (1), attach
the Small Bumper (13) to the underside of the
Frame with two M4 x 25mm Screws (132).
4. Identify and orient the Upright (5) and the Top
Cover (23) as shown. Slide the Top Cover
upward onto the Upright.
Have a second person hold the Upright (5) and
the Top Cover (23) near the Frame (1).
Connect the Upright Wire (60) to the Frame Wire
(109).
Tip: To prevent the Upright Wire (60) from
falling into the Upright (5), secure the top of
the Upright Wire with a rubber band or tape.
3
4
23
109
1
7
1
13
Recessed
Holes
132
5
60
