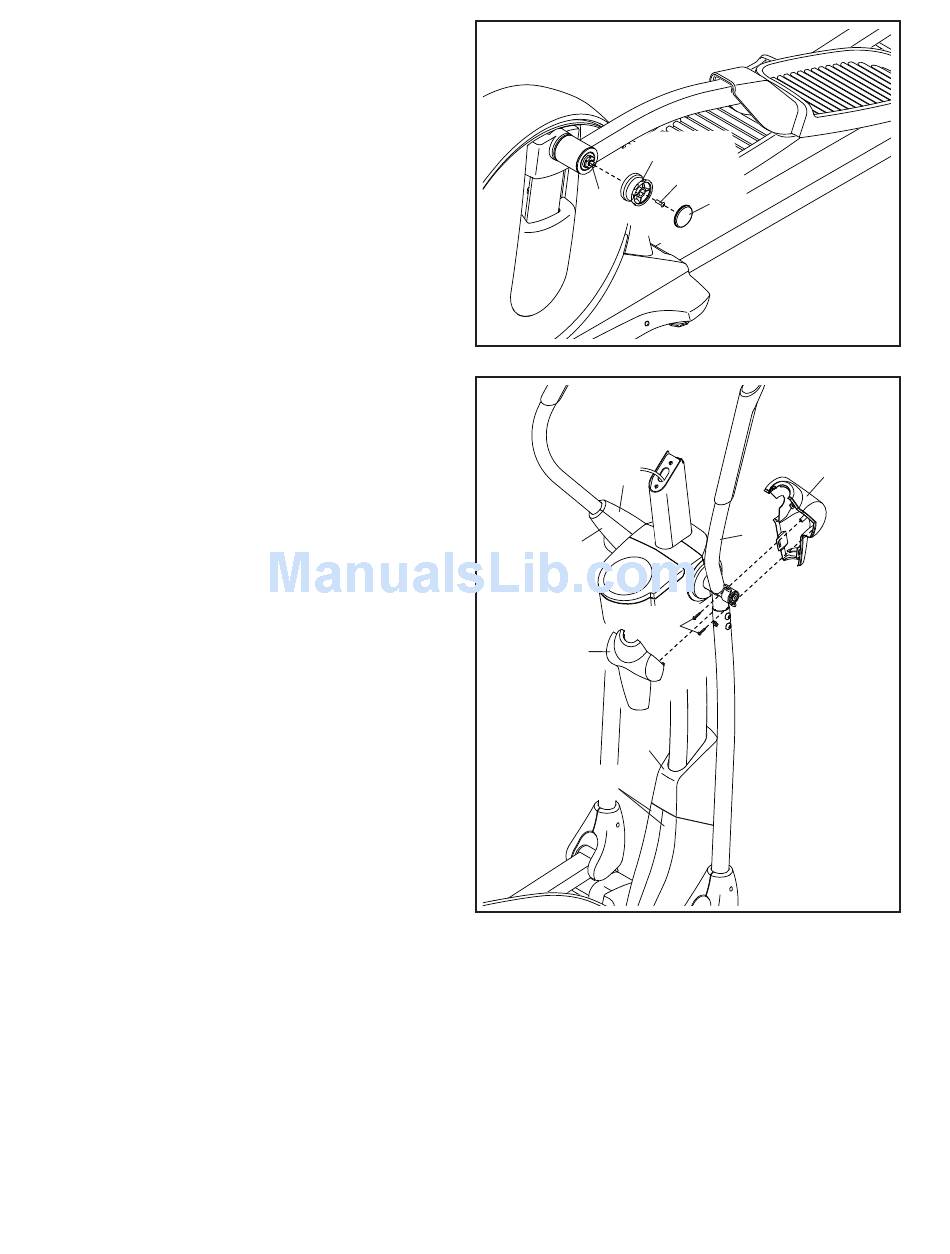

15. Remove and discard the cap (not shown) on the
right Adjustment Pin (44).
Attach an Adjustment Knob (45) to the right
Adjustment Pin (44) with an M6 x 12mm Screw
(111).
Then, press the tabs on a Knob Cap (46) into the
Adjustment Knob (45).
Repeat this step on the other side of the
elliptical.
16. See step 6. Tighten the six M8 x 45mm Button
Bolts (104).
See step 5. Tighten the six M8 x 16mm Screws
(102). Tip: Tighten the two Screws on the
front of the elliptical before tightening the
other four Screws.
Identify the Right Rear and Front Leg Covers
(29, 30), which are marked with "Right" stickers.
Attach the Right Front Leg Cover (30) to the
Right Upper Body Arm (8) with two M4 x 16mm
Screws (93).
Attach the Right Rear Leg Cover (29) around the
Right Upper Body Arm (8) by pressing the tabs
on the Right Rear Leg Cover into the Right Front
Leg Cover (30).
Attach the Left Rear and Front Leg Covers
(31, 32) in the same way.
Then, slide the Top Cover (23) downward and
press it into the Right and Left Frame Covers
(21, 22).
