This Data Sheet Includes Information On
Jenn-Air
Product Model Number (s):

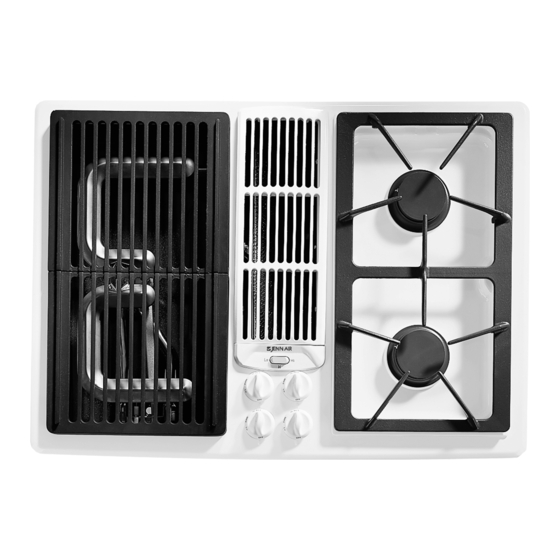

30" Convertible Cooktops:
JGD8130ADW, JGD8130ADS and JGD8130ADB
Dimensions (Actual Size)
Overall width:
Overall depth:
Distance from top of counter to bottom of unit:
Cut-Out width:
Cut-Out depth:
Min. spacing from cooktop edge to nearest
vertical combustible wall to the RIGHT:
Min. spacing from cooktop edge to nearest
vertical combustible wall to the LEFT:
Min. spacing from cooktop edge to nearest
vertical combustible wall to the REAR:
Minimum spacing to front edge of counter:
Minimum distance between cooktop
and cabinet directly above:
Minimum width of cabinet directly above:
Maximum depth of cabinets directly
above and adjacent:
Minimum distance between countertop
and adjacent cabinet above:
Additional Information
• Cabinetry over cooktop : 30" minimum clearance
between the top of the cooking surface and the bottom
of an unprotected wood or metal cabinet. 24" minimum
when bottom of wood or metal cabinet is protected by
not less than 1/4" flame retardant millboard covered
with not less than no. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or copper.
• To eliminate the hazard of reaching over heated
surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage
is to be provided, the hazard can be reduced by
installing a range hood that projects horizontally a
minimum of 5" beyond the bottom of the cabinets.
• Countertop must be supported within 3" of cutout.
• Radius corners of cutout and file to insure smooth
edges and prevent corner cracking (1/4" radius).
• Blower can be swiveled 90°.
See page 2-3 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter-
mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2002.
• NEVER reuse Data Sheets. Data Sheets are subject to change without
notice. Dimension Express is a FREE service bureau and is updated daily,
it makes far more sense to spend the time necessary to request new Data
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
DIMENSION EXPRESS
30"
21 3/4"
see below
29"
21"
8"
8"
15/16"
1 7/8"
30"
30"
13"
18"
Provide 2" min. cabinet
clearance to motor for
cooling purpose. 6"
recomended for servicing.
321
Fax on Demand (775) 833-3600
see below
Side View (not to scale)
21"
29"
30"
18"
Grease container
13 13/16"
Minimum
clearance
required
13 3/4"
• Call Dimension Express if you have any questions at (775) 833-3633 •
• Always refer to a current Code at a Glance or manufacturer directory •
• Data Sheet codes change on the first of odd numbered months at 12:01am •
BN182.34 • A321B149C150 • • 032603 • 95657 • 67301
30"

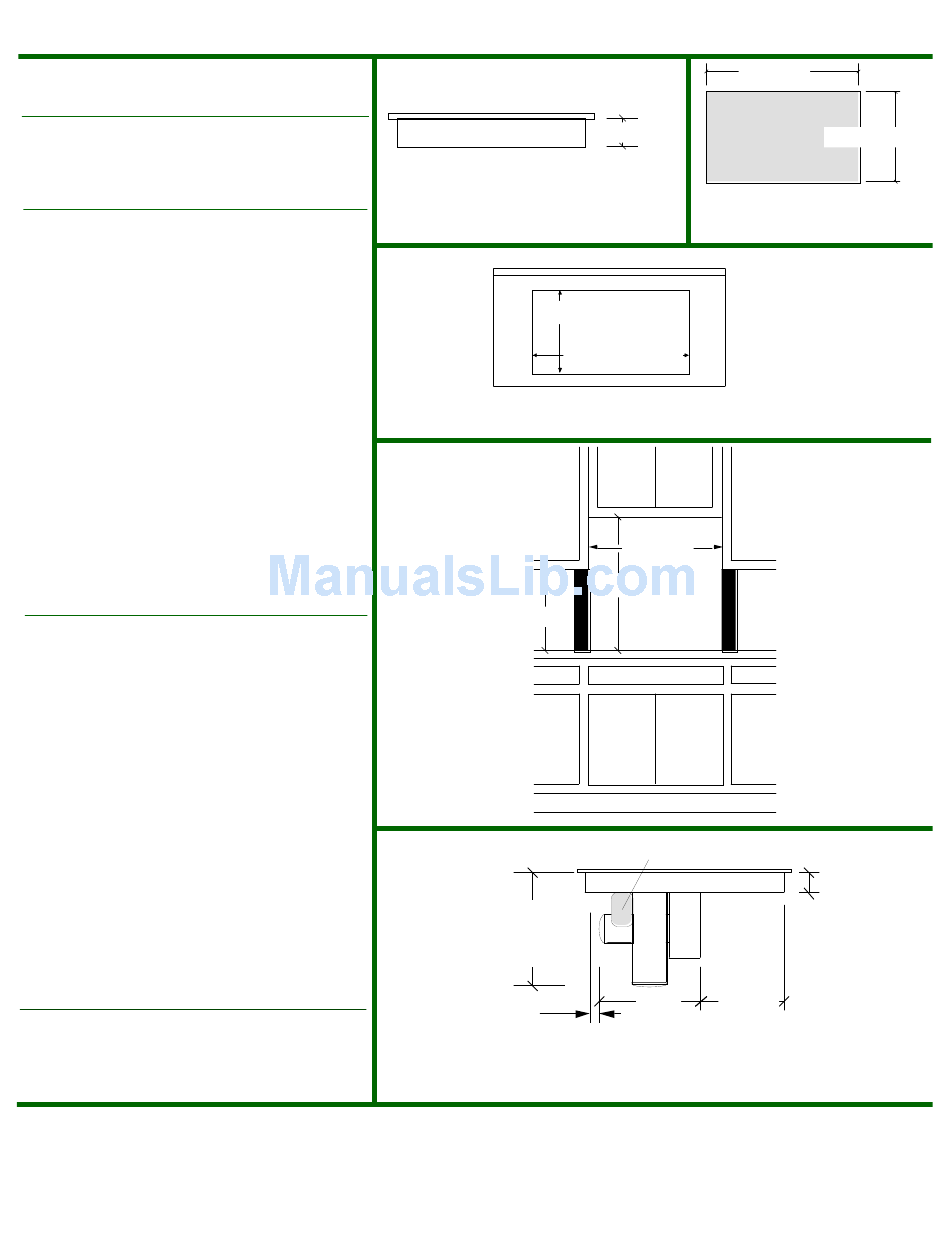

Overall Dimensions
Top View (not to scale)
Cut-Out Dimensions
Countertop View
(not to scale)
Cabinet Requirements
Wall View
(not to scale)
30"
Minimum horizontal
clearance between the
edge of the appliance
and combustible
construction extending
from the cooking
surface to 18" above
the cooking surface is
8" (see solid areas).
3 1/2"
Front View
of Cooktop and
Attached Blower
(not to scale)
11 13/16"
21 3/4"
