Important!
Shielded cables are
required by the FCC.
4 Gateway ALR 8200 User's Guide

Setting up the server

Refer to Figure 1 and the following procedures when connecting optional
peripherals to your system.

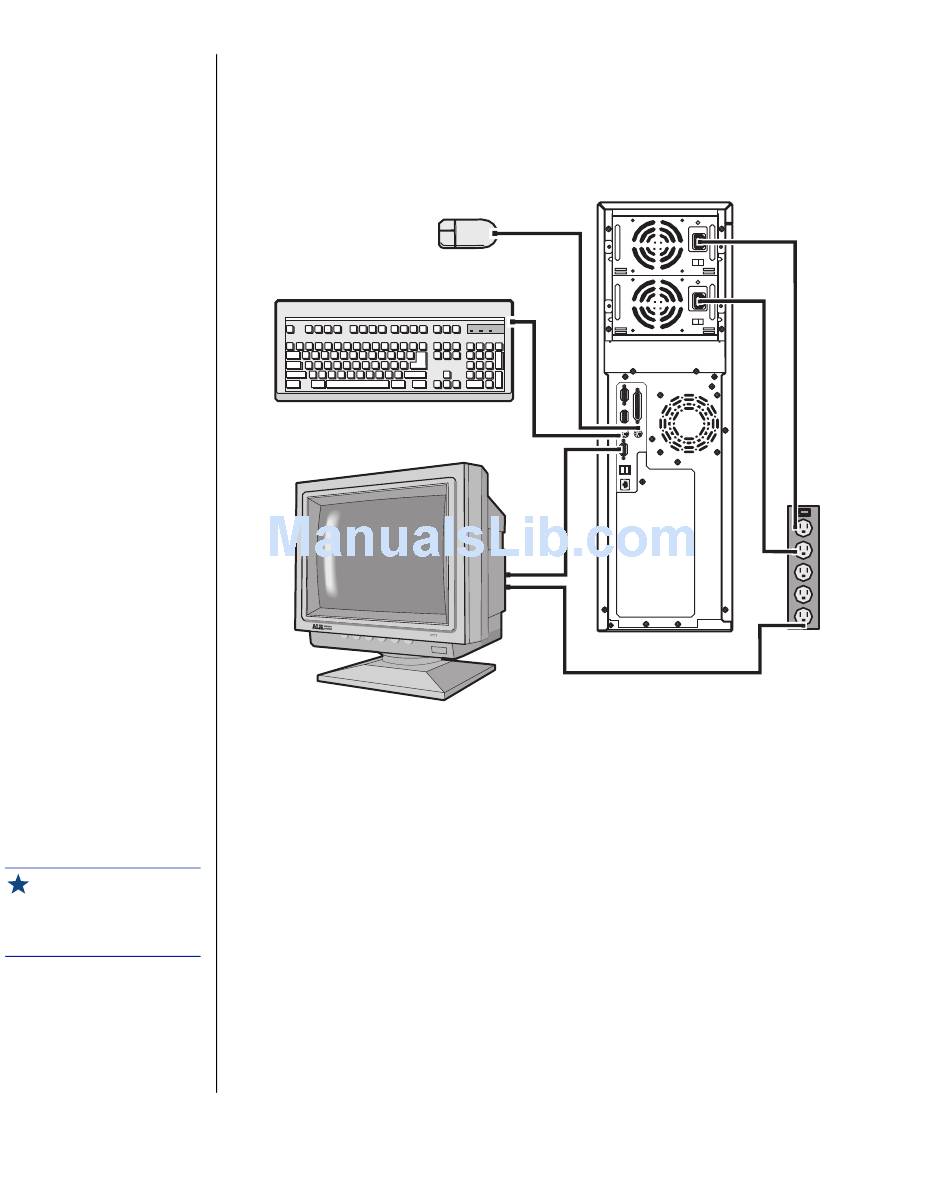

Figure 1: Connecting Peripherals
1. Connect the keyboard and mouse to their respective ports using the
pictures on the server's rear cover as a guide.
Connect the monitor video cable to the video port. The location of the
2.
port may vary depending on whether you use the integrated video or a
video card.
3. Connect the monitor power cable to an AC outlet or, preferably, a
surge control outlet station.
Verify that the voltage selector switch on the power supply is set for
4.
the proper voltage (115V or 230V). If the system includes two
hot-swap modules, each module has a voltage selector switch.
