Dynex DX-DRTVM114 Assembly Manual

Low-profile tv wall mount
Hide thumbs Also See for DX-DRTVM114:

Advertisement

Quick Links

Download this manual

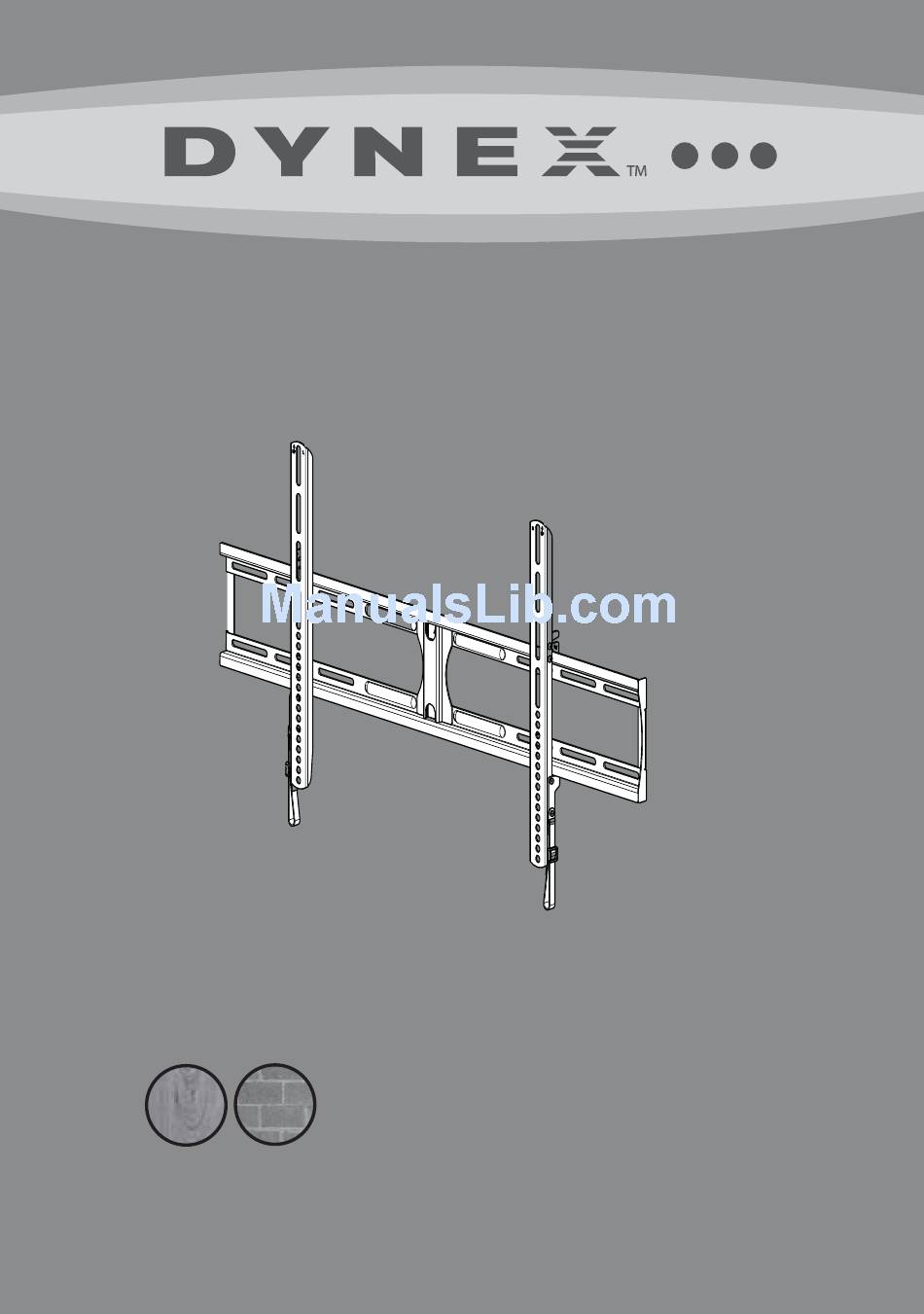

DX-DRTVM114
Low-Profile TV Wall Mount
For either wood-stud or
concrete wall installations
Before using your new product, please read these instructions to prevent any damage.
A S S E M B LY G U I D E
Tools needed. . . . . . . . . . . . . . . . . . . . . . . . . . .3
Package contents . . . . . . . . . . . . . . . . . . . . . .3
Installation instructions. . . . . . . . . . . . . . . . .5

Advertisement

loading

Related Manuals for Dynex DX-DRTVM114

Summary of Contents for Dynex DX-DRTVM114

  • Page 1 A S S E M B LY G U I D E DX-DRTVM114 Low-Profile TV Wall Mount Safety information and specifications . . .2 Tools needed......3 For either wood-stud or Package contents .

  • Page 2: Safety Information And Specifications

    Customer Service or call a qualified contractor. Dynex is not responsible for damage or injury caused by incorrect installation or use. The weight of your TV must not exceed 120 lbs. (54.4 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.

  • Page 3: Tools Needed

    D Wall plate template (1) Top / Dessus / Vista superior DX-DRTVM114 Wall Plate Template • Gabarit de la plaque murale • Plantilla de la placa de pared Top / Dessus / Vista superior Note: For wood frame installations, use...
  • Page 4 TV Hardware Bag Label Hardware Qty. Label Hardware Qty. M4 × 12 mm M6 × 35 mm screw screw M4 × 30 mm M8 × 16 mm screw screw M4/M5 washer M8 × 40 mm screw M6/M8 washer M4/M5 spacers M8 ×...

  • Page 5: Installation Instructions

    DX-DRTVM114 Installation instructions STEP 1- Determine whether your TV has a flat back or an irregular or obstructed back Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
  • Page 6 STEP 2 - Select screws, washers, and spacers Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV requires, test various sizes by hand threading the screws.
  • Page 7 DX-DRTVM114 STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back Note: If you plan to use a 5° tilt with a larger TV (42”+), we suggest using spacers with the mounting brackets so that the bottom of the TV does not touch the wall.

  • Page 8: G M4/M5 Washer

    STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs Note: If you plan to use a 5° tilt with a larger TV (42”+), we suggest using spacers with the mounting brackets so that the bottom of the TV does not touch the wall. Align the left and right TV brackets (B and C) with the screw holes on the back of the TV.
  • Page 9 DX-DRTVM114 STEP 4 - Attaching the tilt brackets Note: If you plan to use a 5° tilt with a larger TV (42”+), we suggest using spacers with the mounting brackets so that the bottom of the TV does not touch the wall.
  • Page 10 STEP 5 - Determine wall-mount location Notes: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. Normally, 40 to 60 inches from the ground.
  • Page 11 Drill stud finder Top / Dessus / Vista superior DX-DRTVM114 Wall Plate Template • Gabarit de la plaque murale • Plantilla de la placa de pared Top / Dessus / Vista superior Note: For wood frame installations, use Important: Make sure that the...
  • Page 12 Edge-to edge Drill stud finder DX-DRTVM114 Wall Plate Template • Gabarit de la plaque murale • Plantilla de la placa de pared Top / Dessus / Vista superior Top / Dessus / Vista superior Note: For wood frame installations, use...
  • Page 13 DX-DRTVM114 STEP 7 - Mounting the TV to the wall plate Place the TV brackets (B and C) into the slotted flanges of the wall plate (A). Push the bottom of the TV toward the wall until the latch mechanism clicks into place.
  • Page 14 Removing the TV from the wall plate Grasp the TV by the bottom edge, then pull down on the locking cords and pull the bottom of the TV out from the wall. Release the locking cords and lift the top of the TV from the wall bracket. HEAVY! You will need assistance with this step.
  • Page 15 7601 Penn Ave. South, Richfield, MN 55423 U.S.A. © 2013 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
