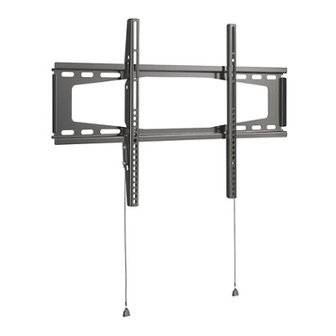

Dynex DX-TVM113 Quick Setup Manual

Slim-Profile TV Mount
QUICK SETUP GUIDE
DX-TVM113
Thank you for choosing the Dynex DX-TVM113. The DX-TVM113 TV
mount is designed to support a TV weighing up to 100 lbs. (45 kg).

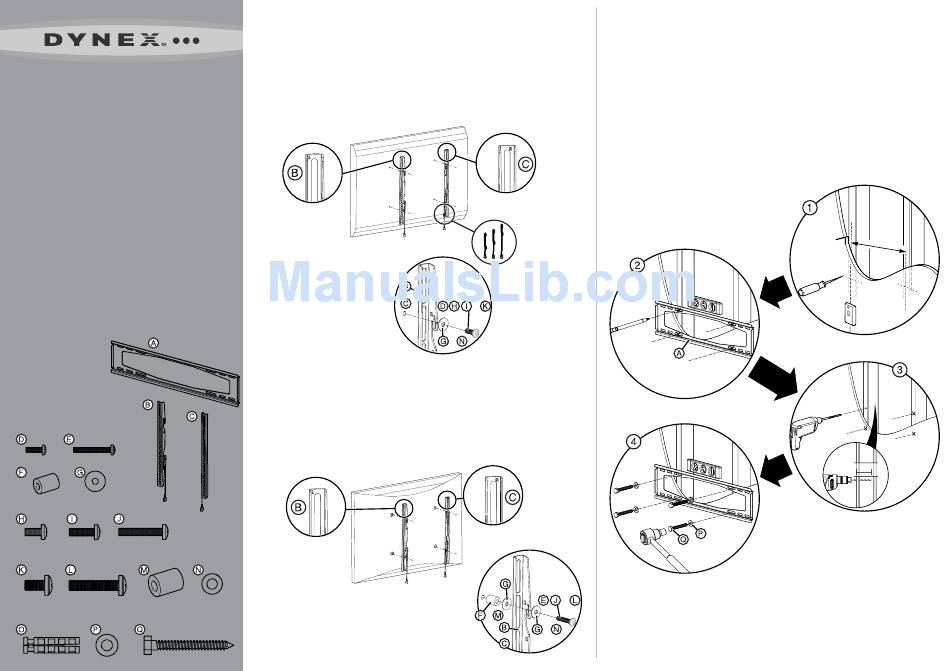

Package contents

Tools you will need:

A Wall plate (1) • Power drill
B Left TV bracket (1) • 3/16 in. wood drill bit
C Right TV bracket (1) • ½ in. masonry drill bit
M4 Bag • Phillips screwdriver
D M4 × 12 mm screws (4) • Level
E M4 × 30 mm screws (4) • Socket wrench with ½ in. socket or
F M4 spacers (4) adjustable wrench
G M4 washers (8) • Pencil
• Stud finder
M6 Bag
H M6 × 12 mm screws (4) • Awl
I M6 × 20 mm screws (4)
J M6 × 35 mm screws (4)
M8 Bag
K M8 × 16 mm screws (4)
L M8 × 40 mm screws (4)
M M6/M8 spacers (4)
N M6/M8 washers (4)
Lag Bolt Bag
O Wall anchors (3)
P 5/16 in. (7.9 mm) washers (3)
Q 5/16 in. × 2 ½ in. lag bolts (3)
M4 Bag
M4 × 12 mm M4 × 30 mm
M4 M4
M6 Bag
M6 × 12 mm M6 × 20 mm M6 × 35 mm
M8 Bag
M8 × 16 mm M8 × 40 mm M6/M8
Lag Bolt Bag
5/16 in. 5/16 × 2½ in.

1 Attach the TV brackets

Option 1: Attaching to a flat mounting surface

Attach the left and right TV brackets (B and C) to the back of the TV using:
The M4 washers (G) and the M4 screws (D).
Or
The M6/M8 washers (N) and the M6 screws (H or I).
Or
The M6/M8 washers (N) and the M8 screws (K)
NOTE: Determine if there is sufficient space
between the back of the TV and the wall to
connect all your cables before proceeding.
You may need to use the optional spacers to
allow more clearance between the back of
the TV and the wall.
Option 2 Attaching to a rounded mounting surface
Attach the left and right TV brackets (B and C) to the back of the TV using:
The M4 spacers (F), M4 washers (G), and the M4 screws (E).
Or
The M6/M8 spacers (M), M6/M8 washers (N), and the M6 screws (J).
Or
The M6/M8 spacers (M), M6/M8 washers (N), and the M8 screws (L).
M6/M8
NOTE: Adjust to shorten
or hide the cords
or
or
or
or
or
or
or

2 Install the wall plate

Option 1: Installing to a wood stud wall

1 Locate the studs. Verify the center of the stud with an awl or thin nail or
use an edge to edge stud finder.
2 Level the wall plate (A) and mark the hole locations.
3 Drill the pilot holes as illustrated.
4 Align the wall plate (A) with the pilot holes, then place the washers (P) over
the holes. Insert the lag bolts (Q) through the washers, then tighten the lag
bolts only until the washers are pulled firmly against the wall plate.
DO NOT over-tighten the lag bolts (Q).
CAUTION: Avoid potential injuries or property damage!
Any material covering the wall must not exceed 5/8 in. (16 mm).
16 - 24 in
5/8 in. .
40 6m m
- 61 0m m
(<16 mm)**
2.5 in.
(63.5 mm)*
*Drill the pilot hole to a depth of 2.5 in. (63.5 mm)
**Maximum thickness of any material covering
the stud or concrete surface.
