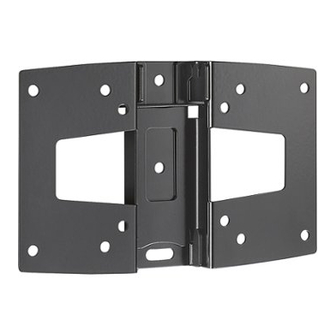

Dynex DX-TVM111 Assembly Manual

Tv wall mount
Hide thumbs Also See for DX-TVM111:

Advertisement

Quick Links

Download this manual

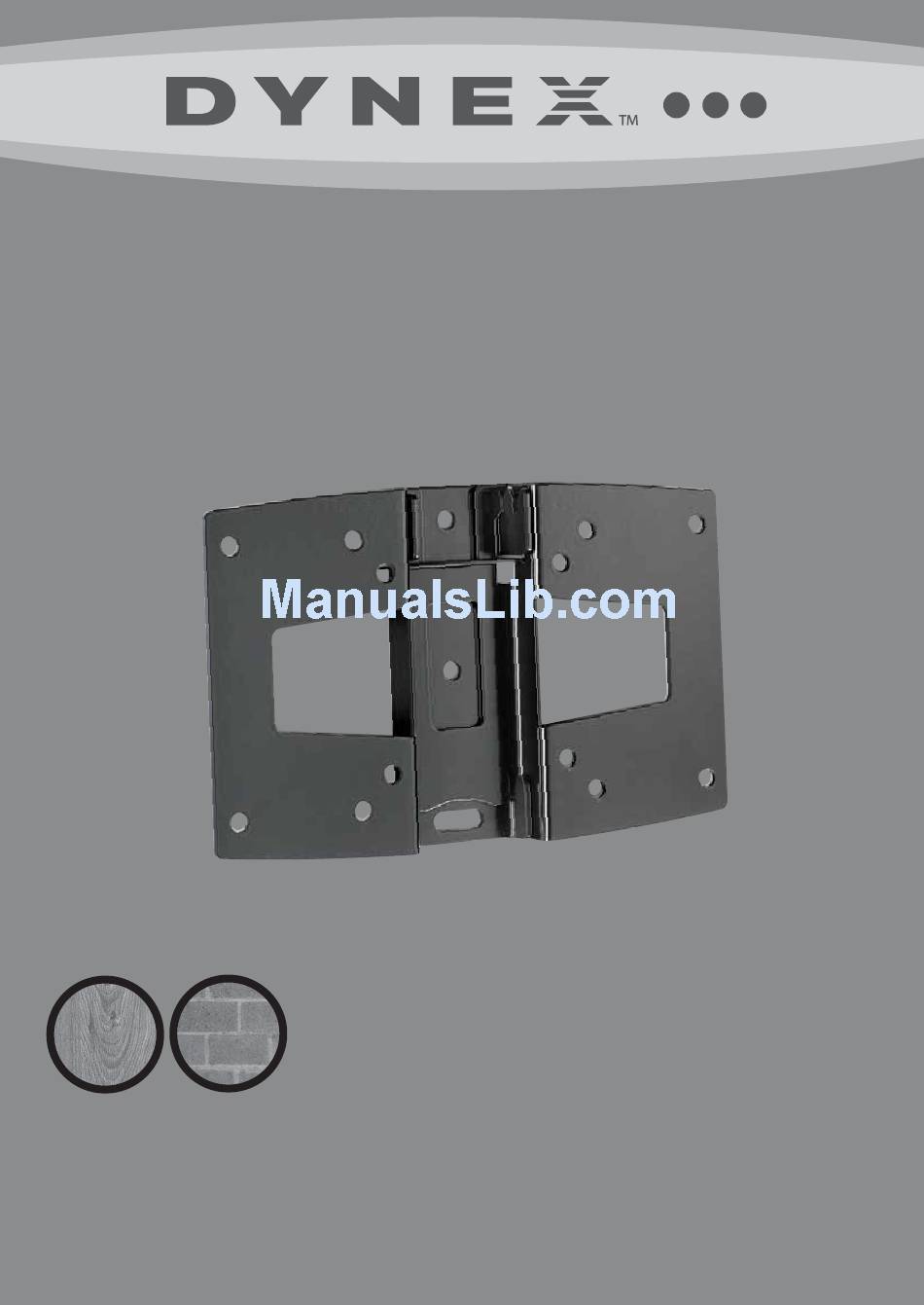

DX-TVM111
TV Wall Mount
For either wood-stud or
concrete wall installations
A S S E M B LY G U I D E
Before using your new product, please read these instructions to prevent any damage.
Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Package contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the DX-TVM111 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynex DX-TVM111

Summary of Contents for Dynex DX-TVM111

  • Page 1 A S S E M B LY G U I D E DX-TVM111 TV Wall Mount Safety information and specifications ..2 Tools needed ....... . . 2 Package contents.

  • Page 2: Safety Information And Specifications

    Wall-mount weight: 1 lb. doubts about the safety of the installation, contact Customer Service or call a qualified contractor. Dynex is not We’re here for you responsible for damage or injury caused by incorrect www.dynexproducts.com installation or use.

  • Page 3: Package Contents

    Package contents DX-TVM111 Package contents Make sure that you have all the hardware necessary to assemble your new TV wall mount: A TV Bracket (1) B Wall Plate (1) J Wall mount template (1) DX-TVM111 Template • Gabarit • Plantilla...

  • Page 4: Installation Instructions

    DX-TVM111 Installation instructions Installation instructions STEP 1 - Determine wall-mount location Notes: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. Normally, 40 to 60 inches from the ground.
  • Page 5 Installation instructions DX-TVM111 STEP 2 - Option 1: Installing on a wood stud* wall Note: Any drywall covering the wall must not exceed 5/8" (16 mm). 1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
  • Page 6 DX-TVM111 Installation instructions STEP 2 - Option 2: Installing on a solid concrete* or concrete block wall CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount wall plate directly onto the concrete surface. 1 Align the wall plate template (J) at the height you determined in the previous step and make sure that it is level.
  • Page 7 Installation instructions DX-TVM111 STEP 3 - Determine whether your TV has a flat, irregular, or obstructed back 1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. 2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your TV for instructions.
  • Page 8 DX-TVM111 Installation instructions STEP 4 - Select screws and spacers 1 Select the hardware for your TV (screws and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) Select one of the following types of screws: M4 ×...
  • Page 9 Installation instructions DX-TVM111 STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back 1 Align the TV bracket (A) with the screw holes on the back of the TV. 2 Install washers (E ), and screws (C) into the top two holes in the back of the TV.
  • Page 10 DX-TVM111 Installation instructions STEP 5 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs 1 Align the TV bracket (A) with the screw holes on the back of the TV. 2 Place spacers (F) behind the TV bracket and the washers (E) over the holes in the TV bracket, then insert the screws (D) through the washers, TV bracket, and spacers.
  • Page 11 Installation instructions DX-TVM111 STEP 6 - Mounting the TV to the wall plate • Place the TV bracket (A) into the slotted flanges of the wall plate (B). The TV can be mounted either (1) vertically, or (2) with a 5° tilt.
  • Page 12 DX-TVM111 Installation instructions STEP 7 - Locking the TV to the wall plate • Slide the locking bar (I) through the TV bracket (A) and the wall plate (B) to secure the TV. A padlock (not included) may be used for extra security.
  • Page 13 7601 Penn Ave. South, Richfield, MN 55423 U.S.A. © 2013 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
