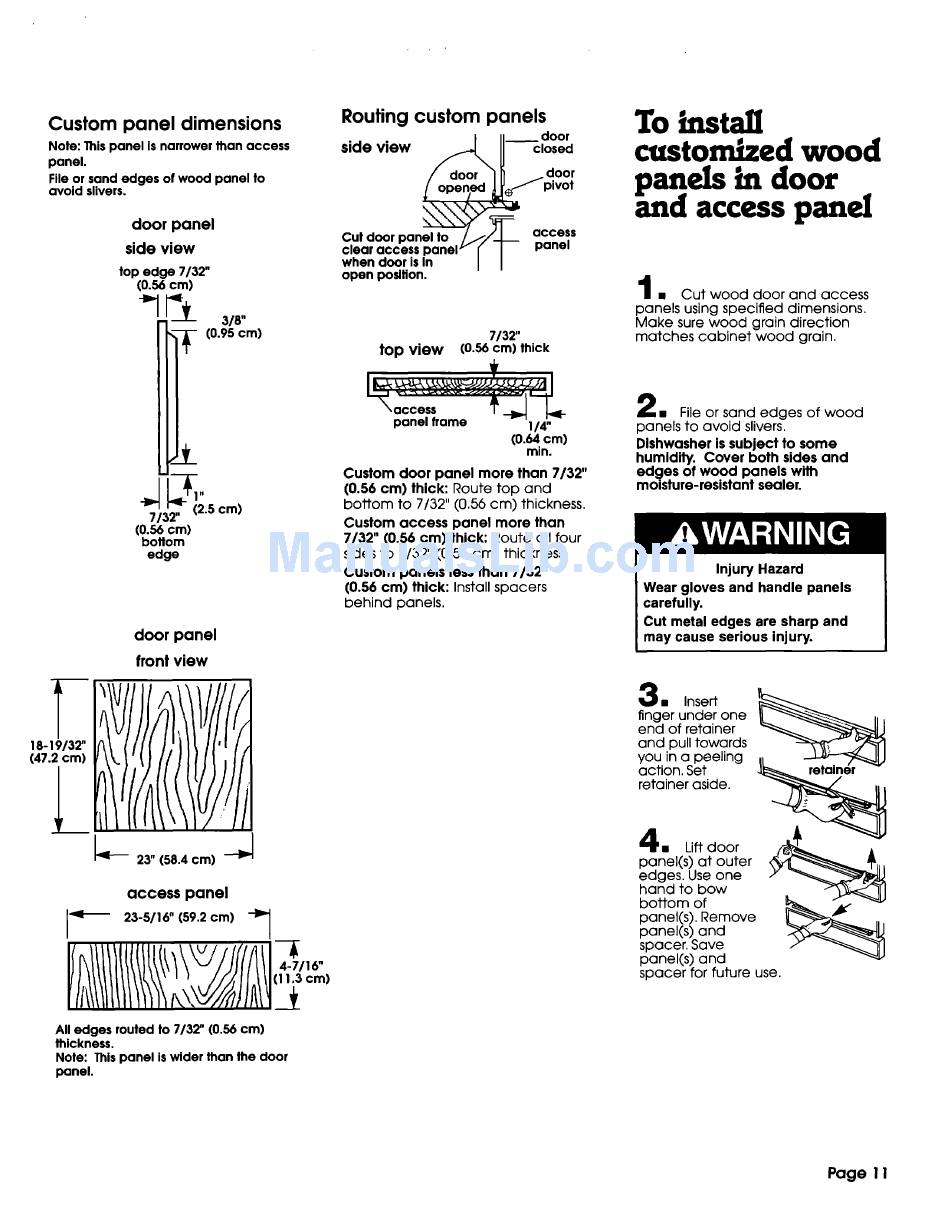

Custom panel dimensions
Note: This panel is narrower than access
panel.
File or sand edges of wood panel to
avoid slivers.
door panel
side view
top edge 7/32"
(0.56 cm)
(0.95 cm)
I
7/32"
. cm)
(0.56 cm)
boffom
edge
18-19/32"
(47.2 cm)
L
door panel
front view
iI
J_l-_
23" (58.4 cm)
access panel
23-5/16" (59.2 cm)
4-7/16"
(I 1.3 cm)
,
All edges routed to 7/32" (0.56 cm)
thickness.
Note: This panel is wider than the door
panel.
Routing custom panels
door
side view
closed
door
Cut door panel to
access
clear access
panel
when door is In
open position.
7/32"
top view
(0.56 cm) thick
t
panel frame
1/4"
(0.64 cm)
rain.
Custom door panel more than 7/32"
(0.56 cm) thick: Route top and
bottom
to 7/32" (0.56 cm) thickness.
Custom access panel more than
7/32" (0.56 cm) thick: Route all four
sides to 7/32" (0.56 cm) thickness.
Custom panels less than 7/32"
(0.56 cm) thick: Install spacers
behind
panels.
To install
customized wood
panels in door
and access panel
=
Cut wood
door and access
panels
using specified
dimensions.
Make sure wood
grain direction
matches
cabinet
wood
grain.
=
File or sand edges of wood
panels to avoid slivers.
Dlshwasher is subject to some
humldlty.
Cover both sides and
edges of wood panels with
moisture-resistant
sealer.
Injury Hazard
Wear gloves and handle panels
carefully,
Cut metal edges are sharp and
may cause serious injury.
=
Insen _
finger under one
end of retainer
and pull towards
you in a peeling
action. Set
retainer aside.
=,
Lift door
panel(s) at outer
edges. Use one
hand to bow
bottom
of
panel(s).
Remove
panel(s)
and
spacer. Save
panel(s)
and
spacer
for future
use.
Page I I
