IMPORTANT:
Read and save
these instructions.
' IMPORTANT:
, Installer:
Leave Installation
Instructions
with
the homeowner.
Homeowner:
Keep Installation
Instructions
for future reference,
Save Installation
Instructions
for local
inspector's
use,
Undercounter
Dishwasher
Part No, 3369092 Rev. A
Advertisement
Related Manuals for Whirlpool 3369092 REV. A
Summary of Contents for Whirlpool 3369092 REV. A

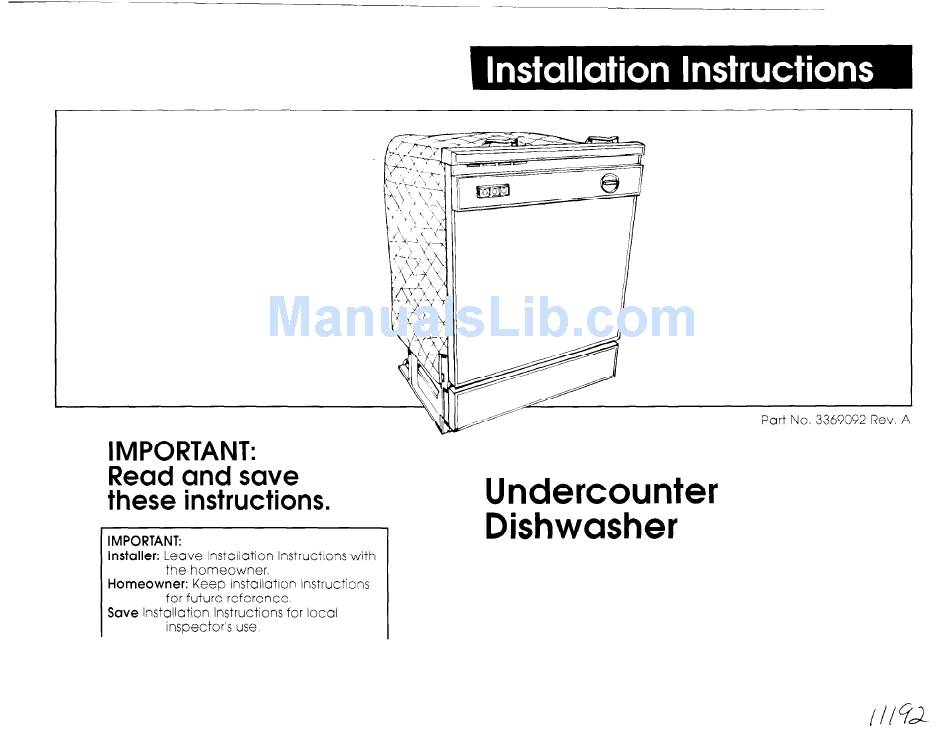

- Page 1 Part No, 3369092 Rev. A IMPORTANT: Read and save Undercounter these instructions. Dishwasher ’ IMPORTANT: , Installer: Leave Installation Instructions with the homeowner. Homeowner: Keep Installation Instructions for future reference, Save Installation Instructions for local inspector’s use,...
- Page 2 Check location where dishwasher will Before you start... Proper electrical, drain and water supply be installed. The location should lines must be available or must be installed provide: as specified within shaded area. Plumbing Proper installation is your responsibility. Easy access to water, electricity and and wiring should not cross in front of motor Make sure you have everything necessary...
- Page 3 Now start... Water ove 4 screws. with dishwasher in kitchen. Requirements The hot water line to the dishwasher must provide between 15 - 120 psi water pressure. The hot water heater should be set to deliver 140°F water temperature to the dishwasher for best results. Use 3/8”...
- Page 4 Alternate drain hose connection Recommended drain hose connection methods: methods: Drain hose to air gap to waste tee. Floor Damage Cut hose Drain hose to waste tee. Air-gap Tilt dishwasher backwards on wheels &Part No. when moving across floor. Failure to do so may cause damage to floor covering.
- Page 5 /equally spaceda, To change door panel color Product Damage Do Not solder within 6” of plastic NOTE: The opposite side of the door water inlet valves. color panel is a different color. Failure to follow this instruction could result in product damage. water inlet valve Personal Injury Hazard Wear gloves and handle panels...
-
