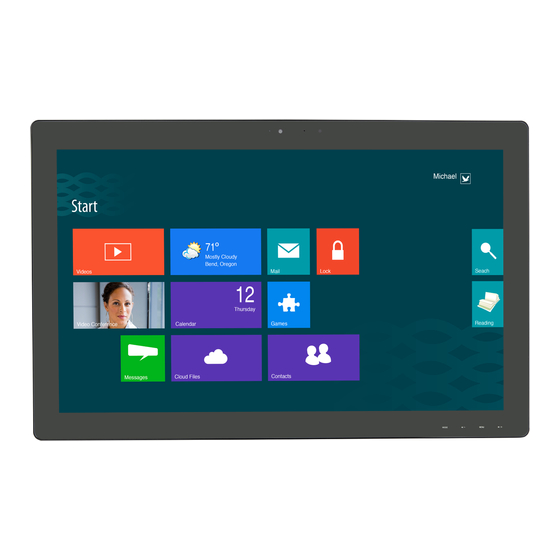

Planar PCT2785 User Manual
Touch led lcd monitor
Hide thumbs
Also See for PCT2785:
- Quick manual (2 pages) ,
- User manual (20 pages) ,
- User manual (22 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Planar PCT2785
Summary of Contents for Planar PCT2785
- Page 1 PCT2785 Touch LED LCD Monitor USER'S GUIDE www.planar.com...
-
Page 2: Table Of Contents
Front View of the Product ............................4 Rear View of the Product ..............................5 Quick Installation ................................6 Webcam Installation...............................7 Basic Operation and Calibration/Reset Instructions...................8 Advanced Operation—OSD Menu......................... 10 Supporting Timing Modes ............................13 Technical Information ..............................14 Wall-Mount Installation Instructions........................15 Troubleshooting................................16 Planar Support ................................17... -
Page 3: Operation Instructions
According to WEEE regulation, this Touch LED LCD Monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information on Planar’s website to handle it. For more information on how to recycle your product, please visit WWW.PLANARSYSTEMS.COM/GREEN... -
Page 4: Unpacking Instructions
Unpacking Instructions Remove the Touch LED LCD Monitor out of the package and take off the plastic bag and Polystyrene Foam. Pull the base from Parallel versus Panel to Vertical. Adjust the Panel between 15° leaning forward and 70° leaning backward. Safety Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: Package Overview
Package Overview Touch LED LCD Monitor Power Cord VGA Signal Cable Audio-in Cable USB Cable (A to B) HDMI Cable Touch Pen User’s Guide Cleaning Cloth... -
Page 6: Front View Of The Product
Front View of the Product ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ① Webcam LED indicator ② Webcam ③ Microphone ④ Input select/ OSD Turn Off ⑤ Scroll Down/ Adjust Decrease * ⑥ OSD Turn On, Confirm Selection ⑦ Scroll UP/ Adjust Increase * ⑧... -
Page 7: Rear View Of The Product
Rear View of the Product ① ② ③ ④ ⑤⑥ ⑦ ⑧ ⑨ ① Power Input ② Up-stream USB port (to PC) ③ USB port-A (support USB 2.0 plug play device) ④ USB port-B (support USB 2.0 plug play device) ⑤... -
Page 8: Quick Installation
Quick Installation Connect either VGA, HDMI or DisplayPort Video Source from the monitor to the computer. Make sure both monitor and computer are powered OFF. Please note. The monitor ships with only VGA and HDMI cables. DisplayPort cable may be sourced separately from a cable supplier. -
Page 9: Webcam Installation
Webcam Installation Download the free “Instant messaging software” such as MSN Messenger, Yahoo Messenger, or Skype from the Internet. Complete the installation. Use the USB 2.0 cable (included with the monitor) to connect the monitor to one of the USB 2.0 ports of the computer. -
Page 10: Basic Operation And Calibration/Reset Instructions
Basic Operation and Calibration/Reset Instructions Before using the Touch LED LCD Monitor: Connect external equipment properly. Insert the power plug, and the power LED indicator will light orange. Power On/Off To turn the Touch LED LCD Monitor on/off: Press button on the front. The power LED indicator light will be blue when the Touch LED LCD Monitor is on. - Page 11 Repeat this step to unlock. PCT2785 Calibration/Reset Instructions: The PCT2785 is available with USB connection. It is Microsoft® Windows® 7, 8 HID (Human Interface Device) compatible if you use the USB touch screen interface. No additional software driver is required. Calibration is a simple process and can be invoked by running Tablet PC Settings from Control Panel and clicking the Calibrate button.
-
Page 12: Advanced Operation-Osd Menu
Advanced Operation—OSD Menu You can use the OSD menu to adjust various settings for your Touch LED LCD Monitor. Press the button to display the OSD Menu, and use to select the desired OSD menu. Short Cuts Function from the button(s) Auto Image Adjust: To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. - Page 13 Audio Adjust: To adjust the audio functions. Volume: To adjust the volume of speaker output. Mute: To turn the Mute ON/OFF. Audio: When in HDMI input, select where the audio source comes from Line-In or HDMI. DisplayPort Audio: When in DisplayPort input, select where the audio source comes from Line-In or Display Port.
- Page 14 Video Mode Adjust: To select the video mode from Full Screen, Over Screen or Aspect Ratio. Full Screen: To select full-screen size image. Over Screen: To select over-screen size image. Warning: “Over Screen” may cause deviation in touch accuracy. If this occurs, we recommend using “Full screen”. Aspect Ratio: To select input timing image size.
-
Page 15: Supporting Timing Modes
Supporting Timing Modes STANDARD RESOLUTION 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA... -
Page 16: Technical Information
Technical Information Panel 27” TFT (with LED backlight) Power Management On: 43 Watts (typical), 65 Watts (maximum) Standby Mode: < 0.5 Watt Off: < 0.5 Watt Displayable Resolution Full HD 1920 x 1080 max. Vertical Frequency 60Hz max. Pixel Dimension 0.31125 x 0.31125 mm Display Color 16.7M... -
Page 17: Wall-Mount Installation Instructions
Wall-Mount Installation Instructions Wall Mount Arm not included Turn the power OFF then disconnect the cables from the Touch LED LCD Monitor before performing the procedure below. 1. Lay the Touch LED LCD Monitor face down on a soft surface. 2. -
Page 18: Troubleshooting
Troubleshooting No power Make sure A/C power cord is securely connected to the power adapter and the power supply is firmly connected to the Touch LED LCD Monitor . Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage. -
Page 19: Planar Support
Planar Support Cables, Replacement Lamps, Accessories To find cables, replacement lamps and accessories for your Planar projector, monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com or find other stores who carry Planar products at http://www.planar.com/howtobuy Technical Support Visit Planar at http://www.planar.com/support for product registration, operations manuals,... - Page 20 2012 2001132377P 020-1193-00A...
