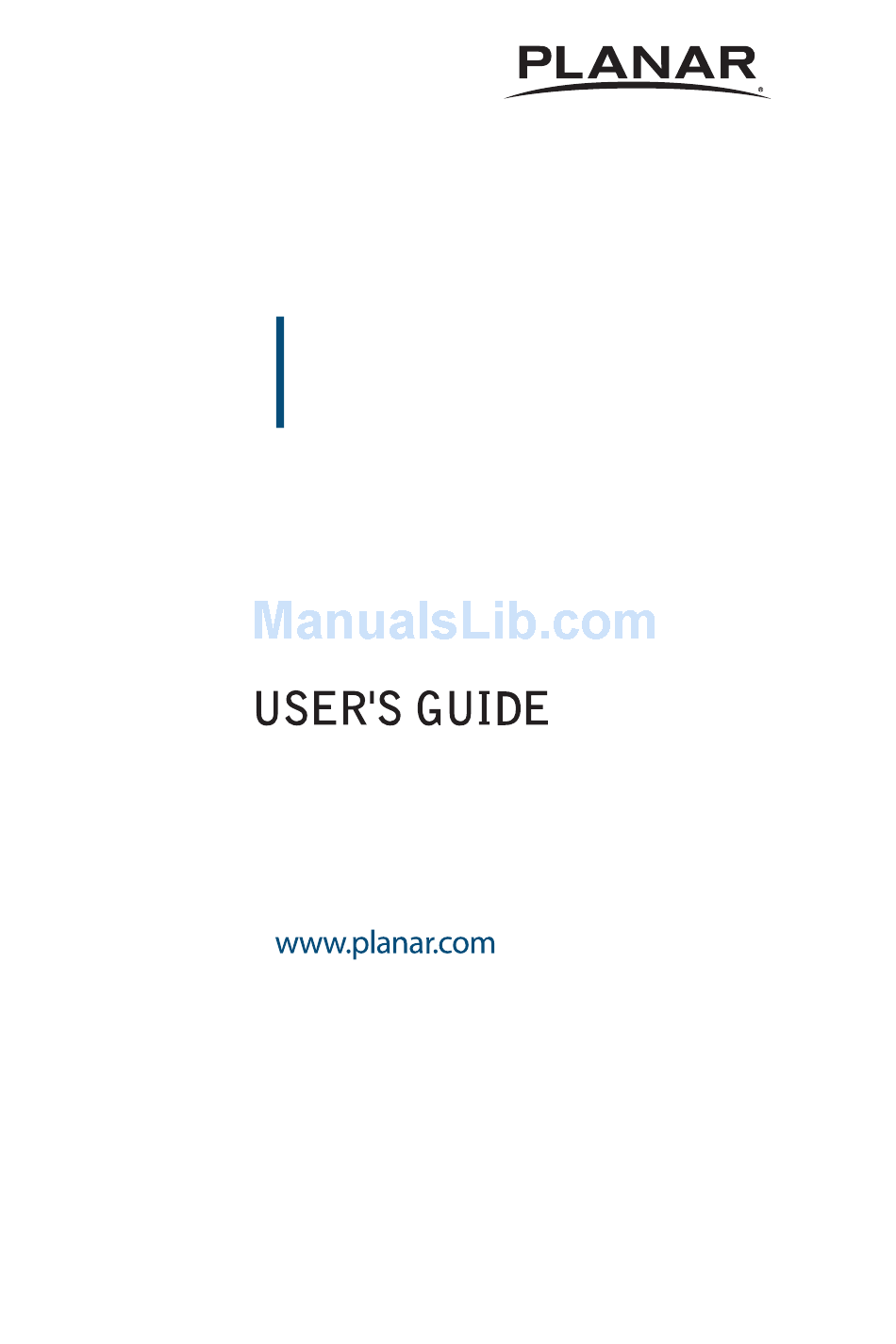

- Page 1 PCT2265 Touch LED LCD Monitor...
- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
TECHNICAL SUPPORT (FAQ) ..................18 TECHNICAL SUPPORT (FAQ) .................. 19 ERROR MESSAGE & POSSIBLE SOLUTION ............19 APPENDIX ..........................20 SPECIFICATIONS ......................20 FACTORY PRESET TIMING TABLE ................. 21 CONNECTOR PIN ASSIGNMENT ................22 WALL MOUNTING (OPTIONAL) ................24 PLANAR SUPPORT ......................25... -
Page 4: For Your Safety
| FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Precautions
Disposal of waste equipment by user in private household in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. - Page 6 • Unplug the unit during a lightening storm or when it will not be used for long period of time. This will protect the monitor from damage due to power surges. • Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
-
Page 7: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. •... -
Page 8: Package List
PACKAGE LIST The product package should include the following items: User's Guide Monitor Power Cable VGA Cable HDMI Cable DVI Cable USB Cable Audio Cable... -
Page 9: Adjusting The Height
ADJUSTING THE HEIGHT The monitor's height may be adjusted from 4.8in to 15.2in (122mm to 385mm). 122mm... -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS POWER CORD Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This monitor has an internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. -
Page 11: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 12: Operating Instructions
| OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. •... -
Page 13: Front Panel Control
FRONT PANEL CONTROL • Power Button: Press this button to switch ON/OFF monitor’s power. • Power Indicator: Blue — Power On mode. Orange —Power saving mode. • MENU / ENTER : Activates OSD menu or function adjust confirm. • ECO/(-) Activates the ECO control when the OSD is OFF or navigate through adjustment icons when OSD is ON or adjust a function when function is activated. -
Page 14: How To Adjust A Setting
HOW TO ADJUST A SETTING 1. Press the MENU-button to activate the OSD window. 2. Press + or - to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press + or - again to navigate through the sub-menu functions. -
Page 15: Adjusting The Picture
ADJUSTING THE PICTURE Main Menu Main Menu Description Item Icon Menu Item Luminance Contrast Adjusts Image brightness in relation to the background. Brightness Adjusts backlight levels. Eco Mode Picture Adjustment, Standard: Brightness = 90, Contrast = 50. Brightness, Contrast (Adjustable) Text: Brightness = 20, Contrast = 50. - Page 16 Main Menu Main Menu Description Item Icon Menu Item Color Normal Normal Color Temperature. Temp. (RGB value is nonadjustable) Warm Warm Color Temperature. (RGB value is nonadjustable) Cool Cool Color Temperature. (RGB value is nonadjustable) sRGB RGB Color Temperature. (RGB value is nonadjustable) User Adjust R.G.B levels as desired.
-
Page 17: Plug And Play
PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. -
Page 18: Calibration/Reset Instructions
CALIBRATION/RESET INSTRUCTIONS PCT2265 Calibration/Reset Instructions: The PCT2265 is available with USB connection. It is Microsoft® Windows® 7, 8 HID (Human Interface Device) compatible if you use the USB touch screen interface. No additional software driver is required. Calibration is a simple process and can be invoked by running Tablet PC Settings from Control Panel and clicking the Calibrate button. -
Page 19: Technical Support (Faq)
| TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution Power LED is not on * Check if the Power Switch is in the ON position. * Power Cord should be connected. No Plug & Play * C h e c k i f t h e P C s y s t e m i s P l u g & P l a y compatible. -
Page 20: Technical Support (Faq)
TECHNICAL SUPPORT (FAQ) CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width. FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture. -
Page 21: Appendix
| APPENDIX SPECIFICATIONS LCD Panel Driving system TFT Color LCD Size 54.6cm(21.5") Pixel pitch 0.2482(H ) × 0.2482(V ) Input Video R,G,B Analog Interface HDMI DVI-D Separate Sync. H/V TTL H-Frequency Analog&Digital:30kHz – 83kHz V-Frequency Analog&Digital:55-75Hz Display Colors 16.7M Colors Dot Clock 170MHz Max. -
Page 22: Factory Preset Timing Table
FACTORY PRESET TIMING TABLE STAND RESOLUTION HORIZONTAL VERTICAL FREQUENCY(kHZ) FREQUENCY(Hz) 640 x 480 31.469 59.94 640 x 480 66.667 640 x 480 37.861 72.809 Mac VGA 640 x 480 37.5 Dos-mode 720 x 400 31.469 70.087 800 x 600 35.156 56.25 800 x 600 37.879... -
Page 23: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION Green Detect Cable Blue Ground Ground DDC-Serial Data Ground H-Sync R-Ground V-Sync G-Ground DDC-Serial Clock B-Ground... - Page 24 19 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock- TMDS Data 2- TMDS Data 1+ N.C. TMDS Data 1 Shield DDC SCL TMDS Data 1- DDC CLK TMDS Data 0+ DDC/CEC Ground...
-
Page 25: Wall Mounting (Optional)
WALL MOUNTING (OPTIONAL) Refer to the instructions that come with the base mounting kit. To convert your display from a desk-mounted to a wall-mounted display, do the following: 1. Verify that the power button is turned Off, then disconnect the power cord. 2. -
Page 26: Planar Support
| PLANAR SUPPORT Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touch screen drivers, warranty information and access to Planar's Technical Library for online troubleshooting. - Page 27 PN: 020-1236-00A...
