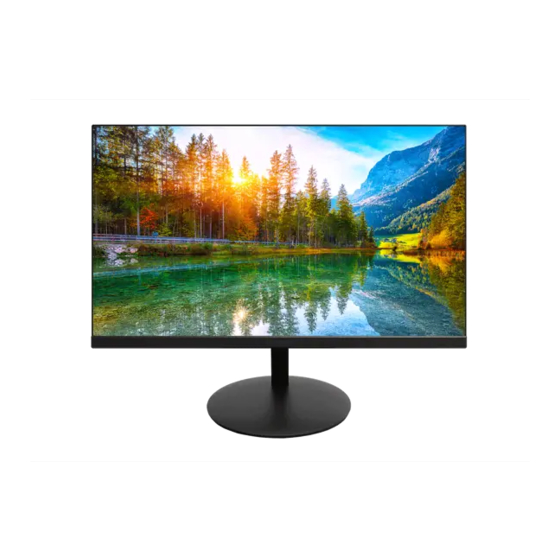

- Page 1 PLN2400 LED LCD Monitor USER'S GUIDE www.planar.com...
-
Page 2: Table Of Contents
Front View of the Product..................... Rear View of the Product ....................9 Quick Installation........................ Basic Operation .........................11 OSD Menu ........................13 Supporting Timing Modes ....................19 Technical Information ......................Wall Mount Instructions ..................... Wall ....................Care and Maintenance Troubleshooting ........................ Planar Support ........................ -
Page 3: Operation Instructions
According to WEEE regulation, this LED LCD Monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information on Planar's website to handle it. For more information on how to recycle your product, please visit http://www.planar.com/about/green/... - Page 4 COMMUNIQUE D'AVERTISSEMENT DE LA FCC CONCERNANT LES INTERFERENCE DE FREQUENCE RADIO: (SEULEMENT POUR MODELES CERTIFIE PAR LA FCC) Ce moniteur aététestéet àététrouvé conforme aux limites pour un appareil numérique de Class B, suivant la partie 15 des règlements de la FCC. Ces limites ontétédéveloppées pour offrir une protection satisfaisante contre les interférences nuisibles dans une installation résidentielle.
-
Page 5: Unpacking Instructions
Unpacking Instructions Remove the LED LCD Monitor out of the package and take off EPE Foam. Remove stand and base from EPE Foam and attach to base. Adjust the display between -5° and 15°. Safety Precautions Follow all warnings, precautions and maintenance as recommended in this user's manual to maximize the life of your unit. -
Page 6: Consignes De Sécurité
Consignes de sécurité Respectez tous les avertissements, les précautions et conseils d'entretien recommandés dans ce manuel de l'utilisateur pour maximiser la durée de vie de votre appareil. A faire: É teindre le produit avant de le nettoyer. La surface de l'écran tactile peut être nettoyée avec un chiffon doux et propre imprégné d'un nettoyant doux du commerce pour vitres ou d'un mélange à... -
Page 7: Package Overview
Package Overview LED LCD Monitor Stand Base HDMI Cable Power Cord User's Guide... -
Page 8: First Setup
First Setup Install the Stand Base Lay the LED LCD Monitor flat on a table with the LED screen face down. To prevent the LED LCD Monitor from being scratched, put a piece of soft cloth on the table on which the screen will be set. - Page 9 Disconnecting the Stand Base Lay the LED LCD Monitor flat on a table with the LED screen face down. To prevent the LED LCD Monitor from being scratched, put a piece of soft cloth on the table on which the screen will be set. Press the release button and pull away the monitor to remove the stand from the monitor.
-
Page 10: Front View Of The Product
Front View of the Product The symbols on the front correspond to the buttons on the back . Menu / Exit Brightness / Down Blue Light Reducer / Up Input select / Enter Power On / Off LED Indicator *Hot keys Instructions please see "Basic Operation" on page11-12. -
Page 11: Rear View Of The Product
Rear View of the Product Power Input (AC input) HDMI Input (HDMI 19 pin) VGA Input (VGA 15 pin) Audio Output (EARPHONE) Kensington Lock... -
Page 12: Quick Installation
Quick Installation Connect either HDMI or VGA Video Source from the monitor to the computer. Make sure both monitor and computer are powered OFF. Please note the monitor ships with an HDMI cable only. Connect the power cord to a properly grounded AC outlet, then to the monitor. Power-ON computer and then POWER-ON the monitor. -
Page 13: Basic Operation
Basic Operation Before using the LED LCD Monitor: Connect external equipment properly. Insert the power plug, and the power LED indicator will light orange. Power On/Off To turn the LED LCD Monitor on/off: Press button on the back. The power LED indicator light will be blue when the LED LCD Monitor is on. - Page 14 OSD lock out Function When LED LCD Monitor is on and the OSD menu is not activated, the “Lock Out” function can be enabled. Option 1: OSD lock-all 4 buttons are locked except the “POWER” button. Press and hold the button for 5 seconds to lock the OSD buttons.
-
Page 15: Osd Menu
OSD Menu BRIGHTNESS BRIGHTNESS: Adjust backlight levels Adjust between 0-100. CONTRAST: Adjust contrast levels Adjust between 0-100. PICTURE MODE : Select from preset modes Standard, Movie, Game, Text. OD: Turn Overdrive on or off ON/OFF. BLUE LIGHT: Reduces blue light OFF: Video (15% reduction), Web Browsing (30% reduction), Reading (50% reduction),Low Light(70% reduction). - Page 16 IMAGE H. POSITION: Adjust contrast levels Adjust between 0-100. V. POSITION: Adjust contrast levels Adjust between 0-100. CLOCK: Adjust contrast levels Adjust between 0-100. PHASE: Adjust contrast levels Adjust between 0-100. ASPECT : Select aspect ratio Wide, 4:3.
- Page 17 COLOR TEMP COLOR TEMP : Choose color temperature User, Warm, Normal, Cool Under USER, the following colors can be adjusted R: Red 0-100 G : Green 0-100 B : Blue 0-100...
- Page 18 OSD SETTING LANGUAGE : Choose language English, French, German, Italian, Spanish, Finnish, Japanese, Simplified Chinese, Traditional Chinese OSD H. POS : Adjust horizontal position of OSD 0~100 OSD V. POS : Adjust vertical position of OSD 0~100 OSD TIMER : Adjust OSD time out 0~60 TRANSPARENCY: Adjust OSD transparency 0~100...
- Page 19 RESET IMAGE AUTO ADJUST: Adjust display automatically (Only available in VGA input). RESET : Reset to factory default...
- Page 20 MISC SIGNAL SOURCE : Select Input source HDMI, VGA VOLUME : Adjusts volume of earphone 0-100...
-
Page 21: Supporting Timing Modes
Supporting Timing Modes STANDARD RESOLUTION 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA 800 x 600 @ 75Hz 832 x 624 @ 75Hz VESA 1024 x 768 @ 60Hz VESA... -
Page 22: Technical Information
Technical Information Panel 23.8" TFT (with LED backlight) Power Management Normal On: 1 6 Watts (typical), 23 Watts (maximum) Standby Mode: < 0.5Watt Off: < 0.3 Watt Displayable Resolution FHD 1920x1080 max Pixel Dimension 0.2745(H)x0.2745(V)mm 16.7M Display Color -5° ~ 15° Tilt Active Display Area 527.04mm x 296.46mm... -
Page 23: Wall Mount Instructions
Wall-Mount Installation Instructions Attaching The Optional Wall Mount Arm (not supplied) Follow these steps to finish installing the wall mounting arm: 1. Place the wall mounting arm onto the back of the LED LCD Monitor. Line up the holes of the arm with the holes in the back of the monitor. 2. -
Page 24: Care And Maintenance Wall
Care and Maintenance Care Avoid exposing your LED LCD monitor directly to sunlight or other heat source. Place your LED LCD monitor away from the sun to reduce glare. Put your LED LCD monitor in a well ventilated area. Do not place any heavy things on top of your LED LCD monitor. Make certain your LED LCD monitor is installed in a clean and moisture-free area. -
Page 25: Planar Support
Planar Support Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com. Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touchscreen drivers, warranty information and access to Planar's Technical Library for online trouble shooting. - Page 26 Hours: 24 hours a day, 7 days a week © 11/2021 Planar Systems, lnc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice.
