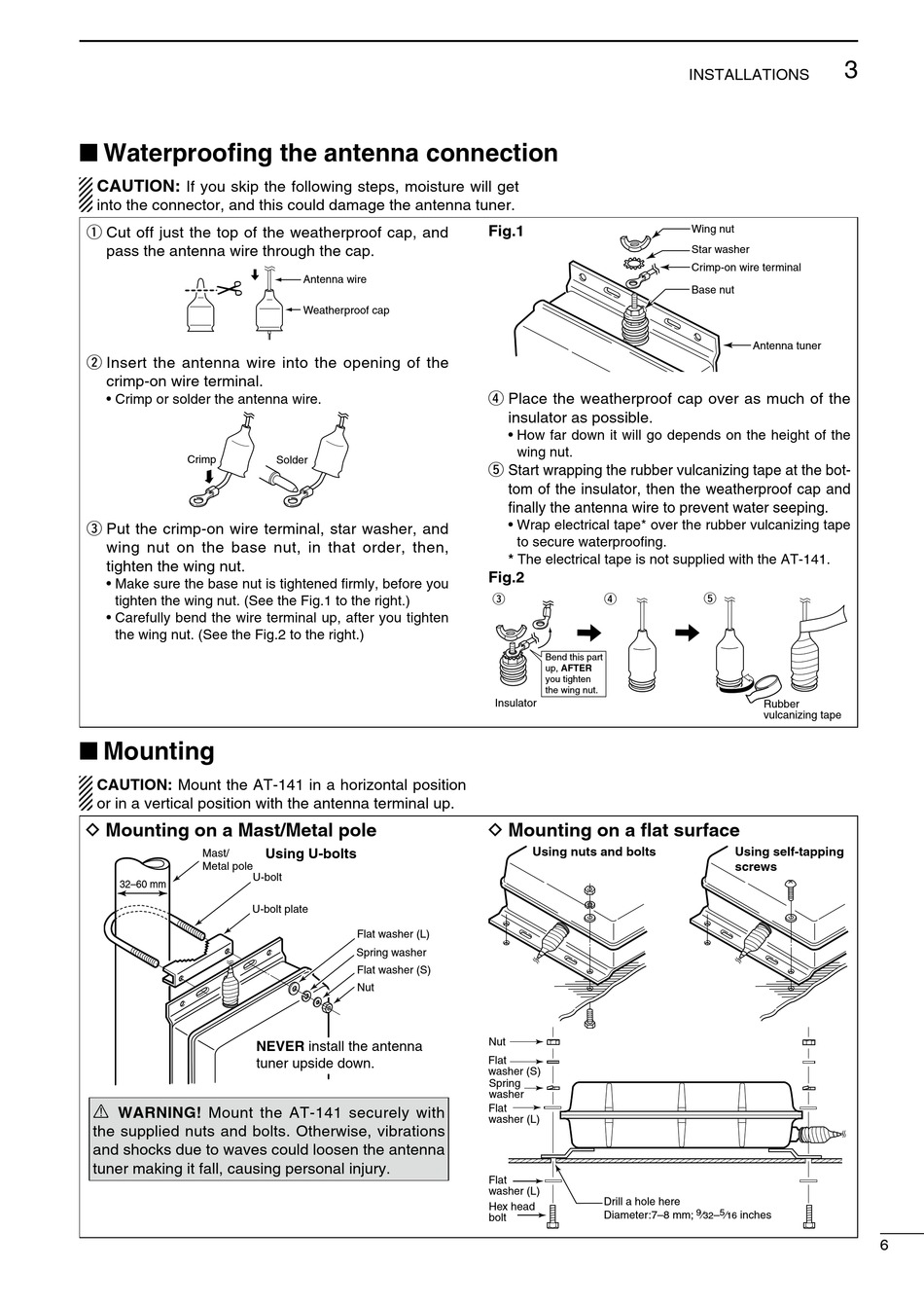

Waterproofing the antenna connection

■
CAUTION:
If you skip the following steps, moisture will get
into the connector, and this could damage the antenna tuner.
q Cut off just the top of the weatherproof cap, and
pass the antenna wire through the cap.
w Insert the antenna wire into the opening of the
crimp-on wire terminal.
• Crimp or solder the antenna wire.
Crimp
e Put the crimp-on wire terminal, star washer, and
wing nut on the base nut, in that order, then,
tighten the wing nut.
• Make sure the base nut is tightened firmly, before you
tighten the wing nut. (See the Fig.1 to the right.)
• Carefully bend the wire terminal up, after you tighten
the wing nut. (See the Fig.2 to the right.)

Mounting

■
CAUTION: Mount the AT-141 in a horizontal position
or in a vertical position with the antenna terminal up.
D Mounting on a Mast/Metal pole
Mast/
Metal pole
U-bolt
32–60 mm
U-bolt plate
R
WARNING! Mount the AT-141 securely with
the supplied nuts and bolts. Otherwise, vibrations
and shocks due to waves could loosen the antenna
tuner making it fall, causing personal injury.
Antenna wire

Weatherproof cap

Solder
Using U-bolts
Flat washer (L)
Spring washer
Flat washer (S)
Nut
NEVER install the antenna
tuner upside down.
Fig.1
r Place the weatherproof cap over as much of the
insulator as possible.
• How far down it will go depends on the height of the
wing nut.
t Start wrapping the rubber vulcanizing tape at the bot-
tom of the insulator, then the weatherproof cap and
finally the antenna wire to prevent water seeping.
• Wrap electrical tape* over the rubber vulcanizing tape
to secure waterproofing.
* The electrical tape is not supplied with the AT-141.
Fig.2
e r
Bend this part
up, AFTER
you tighten
the wing nut.
Insulator
D Mounting on a flat surface
Using nuts and bolts
Nut
Flat
washer (S)
Spring
washer
Flat
washer (L)
Flat
washer (L)
Drill a hole here
Hex head
Diameter:7–8 mm;
bolt
3
INSTALLATIONS
Wing nut
Star washer
Crimp-on wire terminal
Base nut
Antenna tuner
t
Rubber
vulcanizing tape
Using self-tapping
screws
9 5
⁄ – ⁄ inches
32 16
6
