Coaxial cable
■
Insulate the lead-in cable of the AT-141 antenna ter-
minal and antenna element from other metal objects.
To prevent interference, keep cables as far as pos-
sible from an antenna, electric pump and other elec-
tronic equipment.
Ground and counterpoise
■
D
Why a ship's ground is required
The AT-141's ground terminal MUST be connected
to your ship's ground. Grounding prevents electric
shocks, interference to other equipment and other
problems. The AT-141 does not properly operate
without the grounding connections.
R DANGER! NEVER
nal to the following points. These connections may
cause an explosion or electric shocks:
• Gas or electrical pipe
• Fuel tank or oil-catch pan
IMPORTANT:
The mounting plate is NOT con-
nected to the AT-141's internal ground.
D
Ideal ground points
One of following points is ideal:
• Ship's ground
• External ground plate
• External copper screen/foil
D
Good ground points
If electrically connected to sea water, one of the fol-
lowing points is usable:
• Stainless steel stanchion
• Through mast
• Through hull
• Metal water tank
D
Undesirable ground points
These connections may cause noise or electrolysis:
• Engine block
• Ship's DC battery ground
D
Electrolysis
All ground cables from the AT-141 or HF transceiver
on your ship should be connected to only one ship's
ground.
DO NOT
connect to two or more points. Voltage
difference between two or more ship's grounds may
cause electrolysis.
DO NOT
connect between dissimilar metals where
an electric current is present. These connections may
cause electrolysis.
connect the ground termi-
To prevent erroneous indications, keep cables as far
away as possible from the flux gate compass.
Use suitable noise filters for alternators or fluorescent
lights. Ask your dealer for details.
D

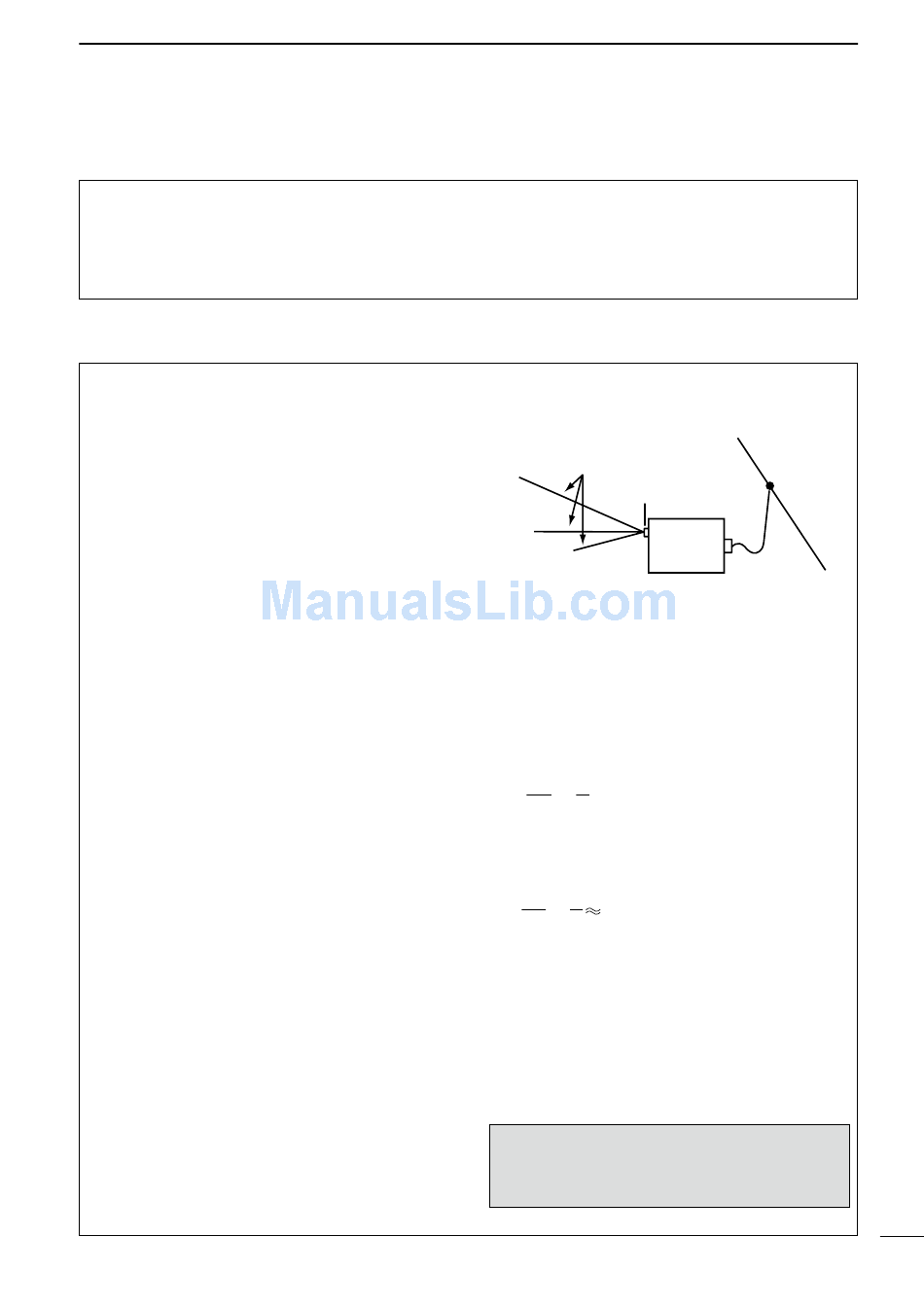

Counterpoise
If your ship is made of FRP, etc. and a good ship's
ground is not available, connect a counterpoise.
λ radial for
1
⁄
4
each band
Ground terminal
AT-141
λ (quarter wavelength) radial for each band is suit-
1
⁄
4
able for a counterpoise. Install the counterpoise di-
rectly below the AT-141's ground terminal. Insulate
the ends of each radial from other metal objects.
Layout the radial horizontally and as straight as pos-
sible.
L : Counterpoise length for the operating frequency [m]
f : Operating frequency [MHz]
300
1
×
L =
f
4
[Example]
At an operating frequency of 16 MHz, use a counter-
poise with the following length:
300
1
4.7 [m]
L =
×
16
4
Ground cable
For best results, use the heaviest gauge wire or
metal strap. Make the distance between the AT-141's
ground terminal and ship's ground as short as pos-
sible.
The supplied ground cable can be used for ground
connection through a mast. Confirm that the mast is
electrically connected to sea water.
RWARNING!
— When grounding to metal hull
Use a Zinc anode to protect the hull from electroly-
sis. Ask your technical dealer or installer, or refer to
a technical book for RF ground details.
ANTENNA SYSTEM
2
4
