STEP 7 COIN BOX MODELS ONLY
ECONOMY WATER USAGE
The pressure switch is set in the factory for the high water level
and usage.
To change setting from high water level to medium or low:
WARNING
MAKE SURE WASHER IS UNPLUGGED FROM ELECTRICAL
OUTLET.

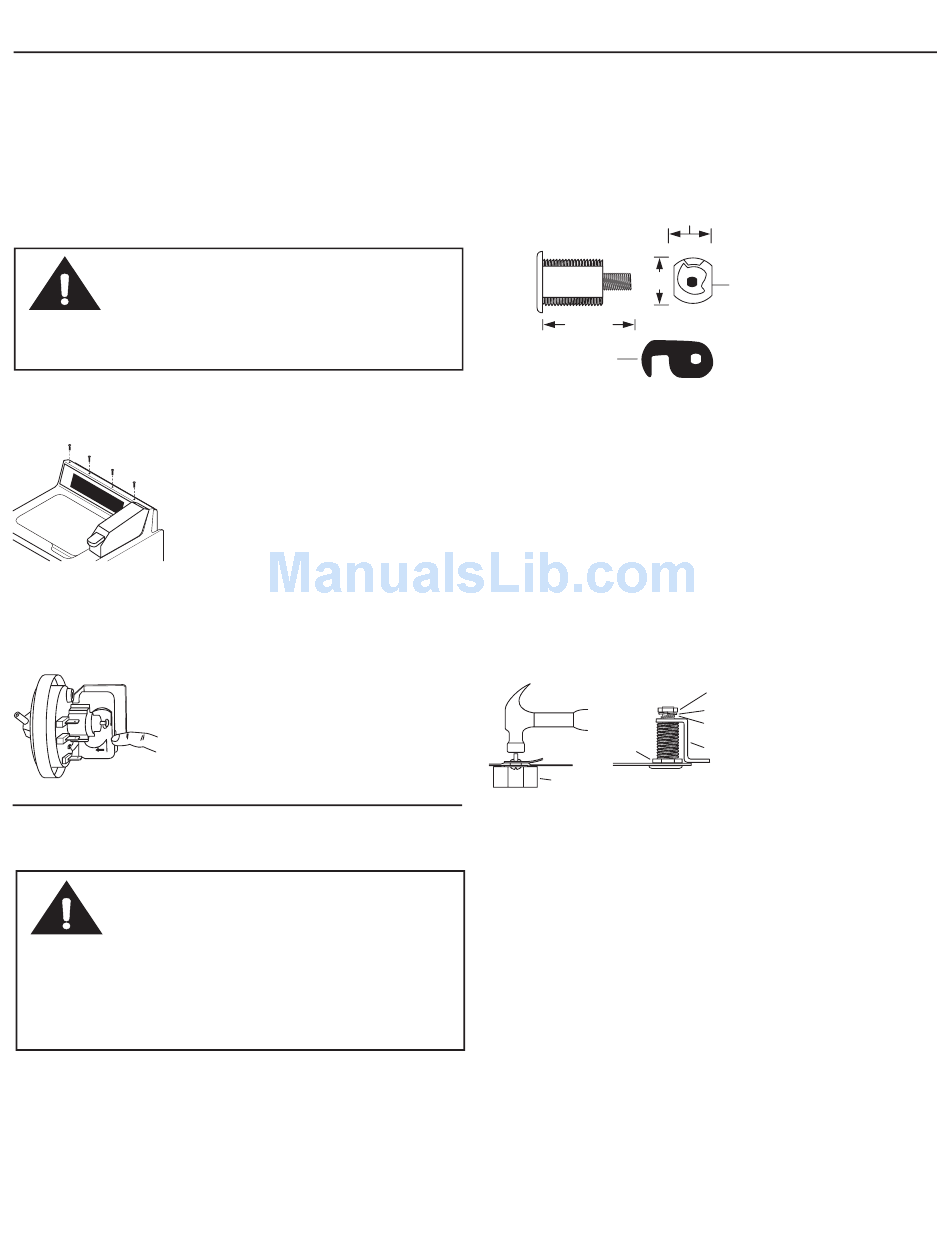

• Remove 4 torx screws from back of control panel and lay
control panel front on cover.
Remove
Screws
• From the front, move white plastic cam on pressure switch in
the clockwise position with your fi nger until it clicks over into
the medium or low water position. (See illustration below).
Rotate
Clockwise

STEP 8 ELECTRICAL CONNECTION

CAUTION
BEFORE PLUGGING IN APPLIANCE, READ ELECTRICAL AND
PLUMBING REQUIREMENTS AND CHECK LIST.
Plug electrical power cord into a properly grounded wall
outlet.
STEP 9 SPECIAL INSTRUCTIONS ON MODELS
WITH SECURITY LOCK CAPABILITY
COVER SECURITY LOCK INSTALLATION
Washer cover is designed to accept stud type lock as shown
below.
5/16" - 18 Thread
3/4"
1-1/16"
Rear View
Cam Lock Available
From Greenwald
Part #8-1222
To install lock:
• Remove plastic insert in front of cover.
• Install the lock washer on the lock shaft and locate so that
the lock can be engaged in a counterclockwise direction.
• Insert lock mechanism into cover opening and tighten until
snug. (Overtightening may damage painted surfaces.)
• Install cam and tighten until snug.
ACCESS DOOR LOCK INSTALLATION
To remove the access door retainer before installing a lock,
place the door over a wood block with a 1/2" hole drilled in it
and tap end of screw lightly with a hammer.
Nut
Wood
Block
5/8"
9/32"
Width
Nut
Lock Washer
Spring Washer
Cam
