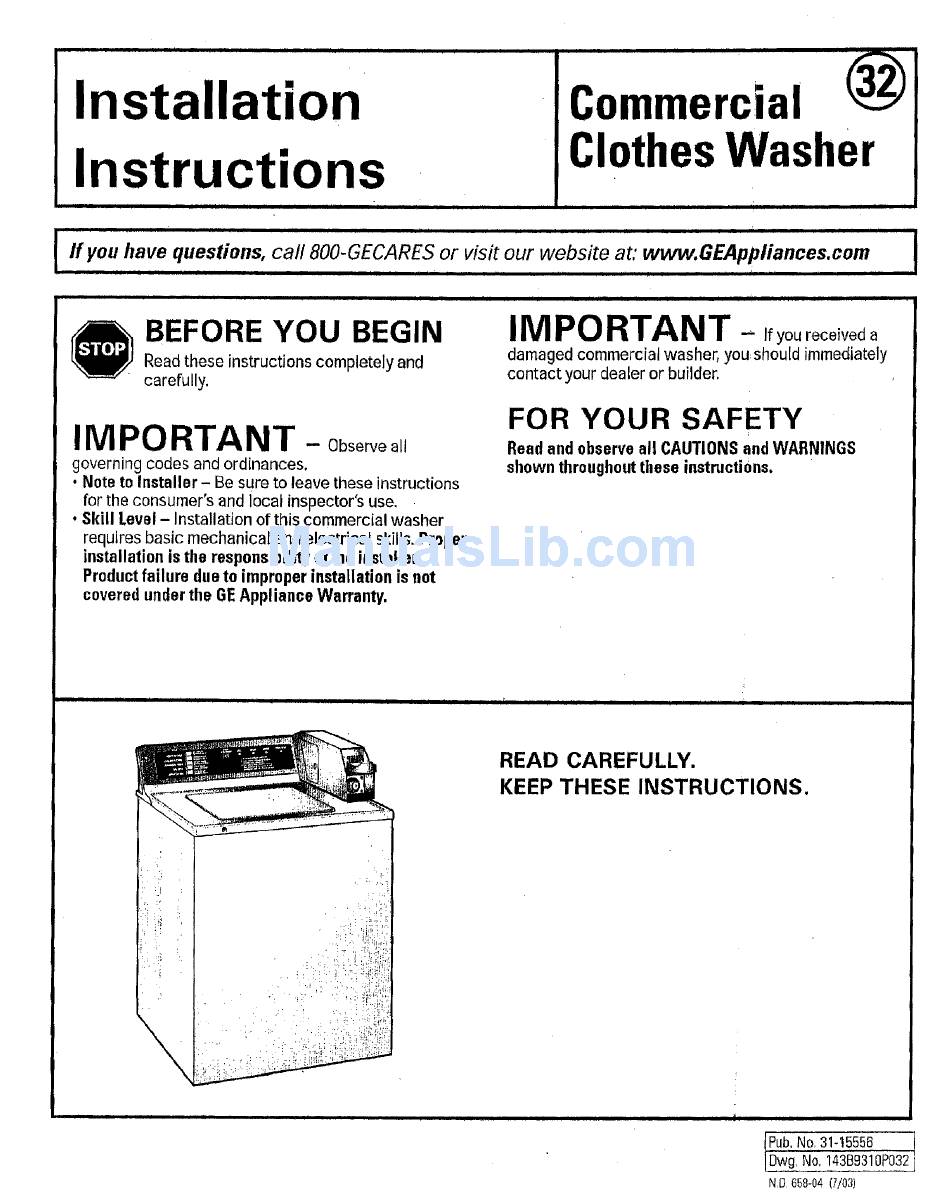

BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT
-I you,eceiveda
damaged commercial washer, you should immediately
contact your dealer or builder.
IMPORTANT
- ObserveaH
governing codes and ordinances.
. Note to Installer-
Be sure to leave these instructions
for the consumer's and local inspector's use.
, Skill revel - Installation of this commercial washer
requires basic mechanical and electrical skilrs. Proper
installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the GE Appliance Warranty.
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS
shown throughout these instructions.
i
i
ii
Hit
i=
i
==n
= i
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
IPub,No,31-t5558
[Dwg,No,
143BB310P032
ND 658-04 (7/03)
