Installation Instructions

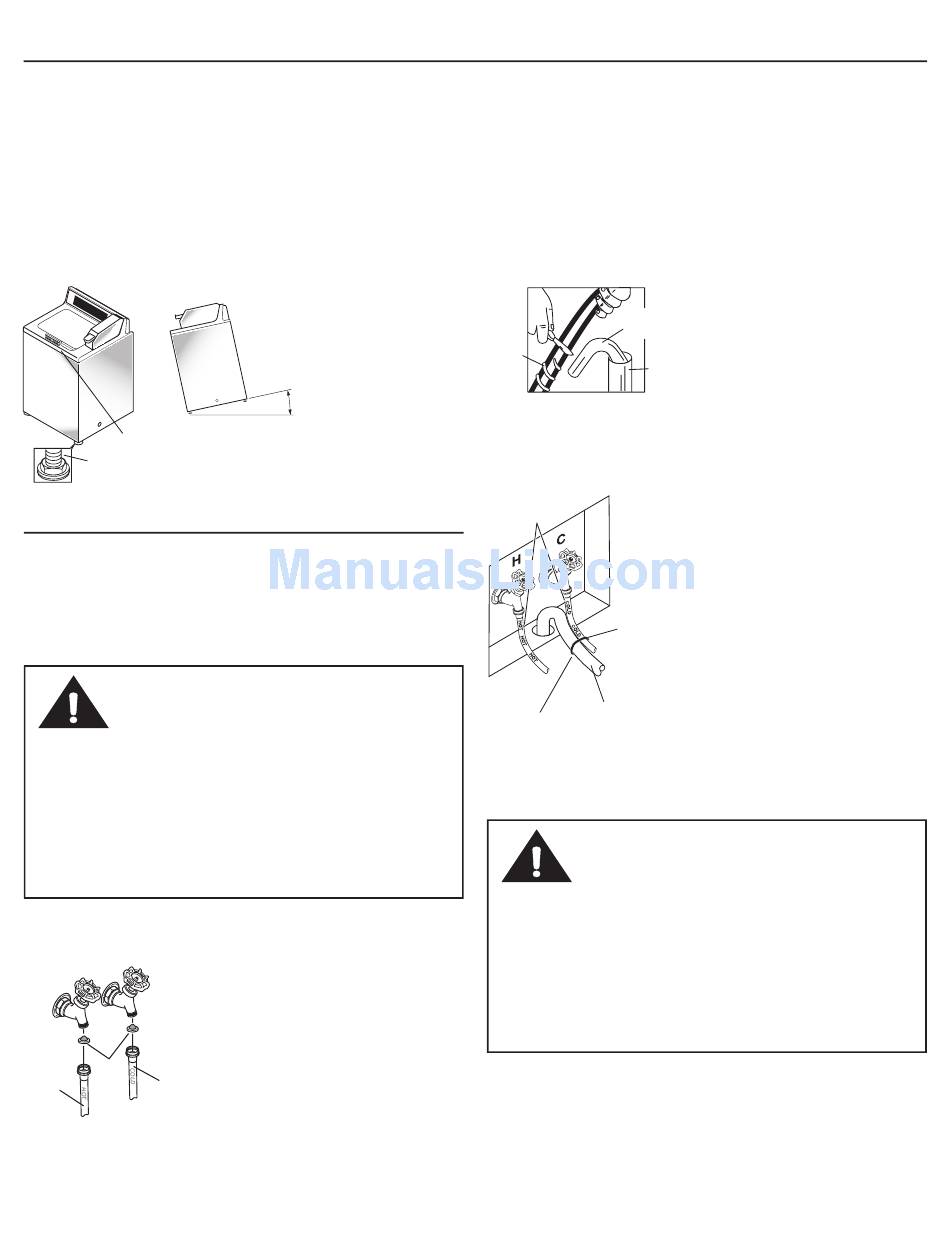

STEP 4 ADJUST LEVELING LEGS
• Place level on front top edge of washer.
• Adjust front leveling legs until washer is level from
side-to-side. Remove level.
• Tilt washer forward (pivot on front legs) 4 to 6 inches. This
action will set rear leg adjustments to correspond to front
setting.
• Gently set washer back down.
Tilt Washer Forward
Level From
4 to 6 Inches to Set
Side-to-Side
Rear Leg Adjustment.
Using Front
Leveling Legs
STEP 5 INSTALL FILL HOSES
• Be sure water supply lines have been thoroughly fl ushed.
• Move washer to fi nal location. DO NOT let fi ll or drain hoses
drag and get under washer.
CAUTION
BE SURE FILL HOSES ARE FIRMLY SECURED TO FAUCETS.
• Determine which is the HOT water line before attaching
fi ll hoses to faucets. Traditionally, HOT faucet is on the
left. Be sure rubber washers are in both ends of washer
fi ll hoses. Connect hose from inlet valve on washer
(marked HOT) to hot faucet and connect hose from
COLD inlet valve to cold faucet. Couplings should be
hand tightened plus 1/2 turn with pliers.
Hand Tighten Plus
1/2 Turn with Pliers
C
H
Cold
Hot
Strainer
Water
Screen/
Water
Rubber
Hose
Hose
Washer
4
STEP 6 INSTALL DRAIN HOSE
• Insert one end of aluminum drain nozzle into standpipe.
• Slip or cut wire wrap back approximately 2" below top of
standpipe.
• Cut drain hose just below standpipe. Place silver hose clamp
over black drain hose end.
• Insert drain nozzle into end of drain hose, and position clamp
to secure drain nozzle to drain hose.
Drain
Nozzle
Wire
Wrap
Standpipe
• Install drain hose in drain facility and secure with cable tie
strap provided as illustrated.
Fill Hoses
Secure to
Drain Hose
Drain
Cable Tie
Hose
NOTE: Drain hose nozzle may be shortened if original length
prevents full insertion into drain facility.
CAUTION
BE SURE DRAIN HOSE IS TAPED OR SECURED TO
STANDPIPE OR OTHER DRAIN FACILITY.
NOTE: Water may be drained into a standpipe. The
discharge height must not be less than 30 inches,
nor more than 6 feet above base of washer. Stand-
pipe must be 1-1/2" minimum inside diameter and
must be open to atmosphere.
