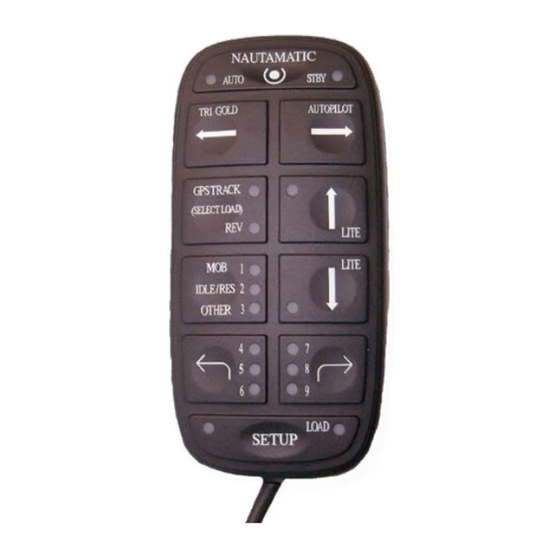

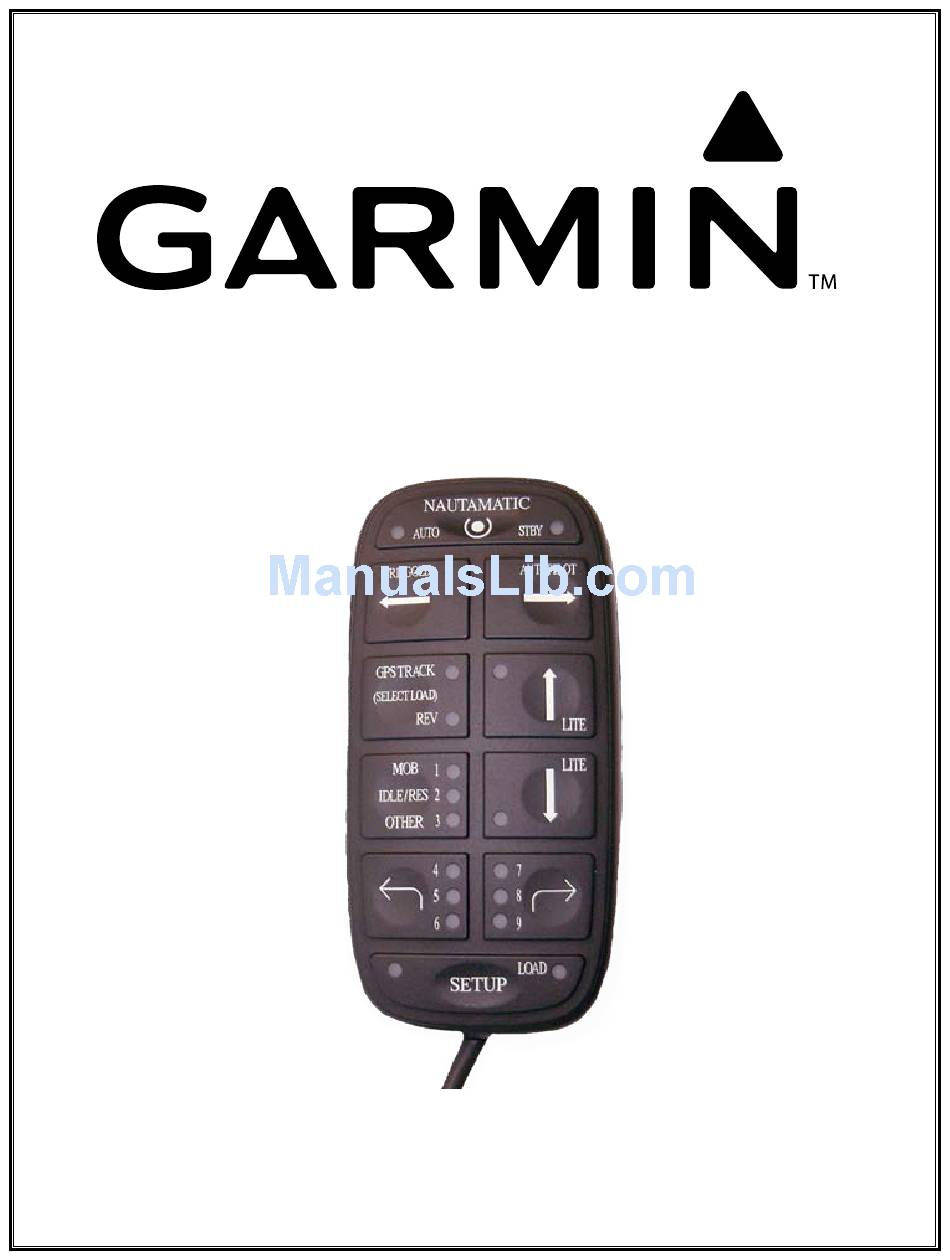

- Page 1 TR-1 Gold Basic Operation Guide PN 906-2001-00 Version 061207...
- Page 2 Remember safe and prudent operation of the vessel is your responsibility as Captain. How To Turn the Autopilot on: Press and release Deckmount (on/off) button, usually found on stern of boat close to the out board. The deckmount light and standby LED on the hand held will both blink, the autopilot system is in a start-up mode and no operations are available for 30 seconds.
- Page 3 How to adjust throttle: Throttle up button, press and hold for large RPM changes or momentarily press for small RPM changes. LED in upper left will illuminate every time button is pressed. Throttle down button, press and hold for large RPM change or momentarily press for small RPM changes.
- Page 4 1. Autopilot must be in Heading Hold or Standby Mode before selection process can start. (AUTO LED solid on or STBY LED solid on. No other LED’s on.) 2. Press and hold the Setup Button. Two LED’s next to number 1 through 6 will illuminate, indicating which special functions are programmed to operate.
- Page 5 How to Setup Steering Patterns (No GPS required) The following will lead through the following features step by step, Reverse, MOB, Idle/Resume, Zig- Zags, Step Turns, Circles and Remote Steer. Reverse: The Autopilot will attempt to perform any of it’s steering functions when the boat is backing in reverse gear.
- Page 6 Select code numbers 1, 2, or 3 Select code numbers 7, 8, or 9 Increase value of code settings How to Make System Changes with Setup (How to change the parameters of the codes on page 7) 1) Autopilot must be in Heading Hold or Standby Mode before selection process can start. (AUTO LED solid on or STBY LED solid on.
- Page 7 Setup Action Code # Tach on/off Show motor RPM Standby Safety Monitor 349 Throttle Delay Throttle Speed Reversed Hoses Calibrate Compass Load Factory Compass 49 Load Factory Pilot Nav Gain Nav Trim Gain Use Synthetic XTE Change Sigh of XTE Use Magnetic North Enable Checksums Set North...
- Page 8 Compass Calibration, Autopilot Tuning and Setup 1) Calibrate your Compass. Compass calibration is a very important step and must be done. (North needs to be set also for GPS functions.) Find some smooth water where you can drive in circles without running into anything. •...
-
Page 9: Compass Calibration
Compass Calibration Example of button sequence below; Autopilot in Standby 1) Put the autopilot in Setup mode by momentarily pressing the setup LED should be lit on the Hand Held 2) Now press button the 4 LED will now be on. Now press button the 7 LED will now be on and display code “47”...
