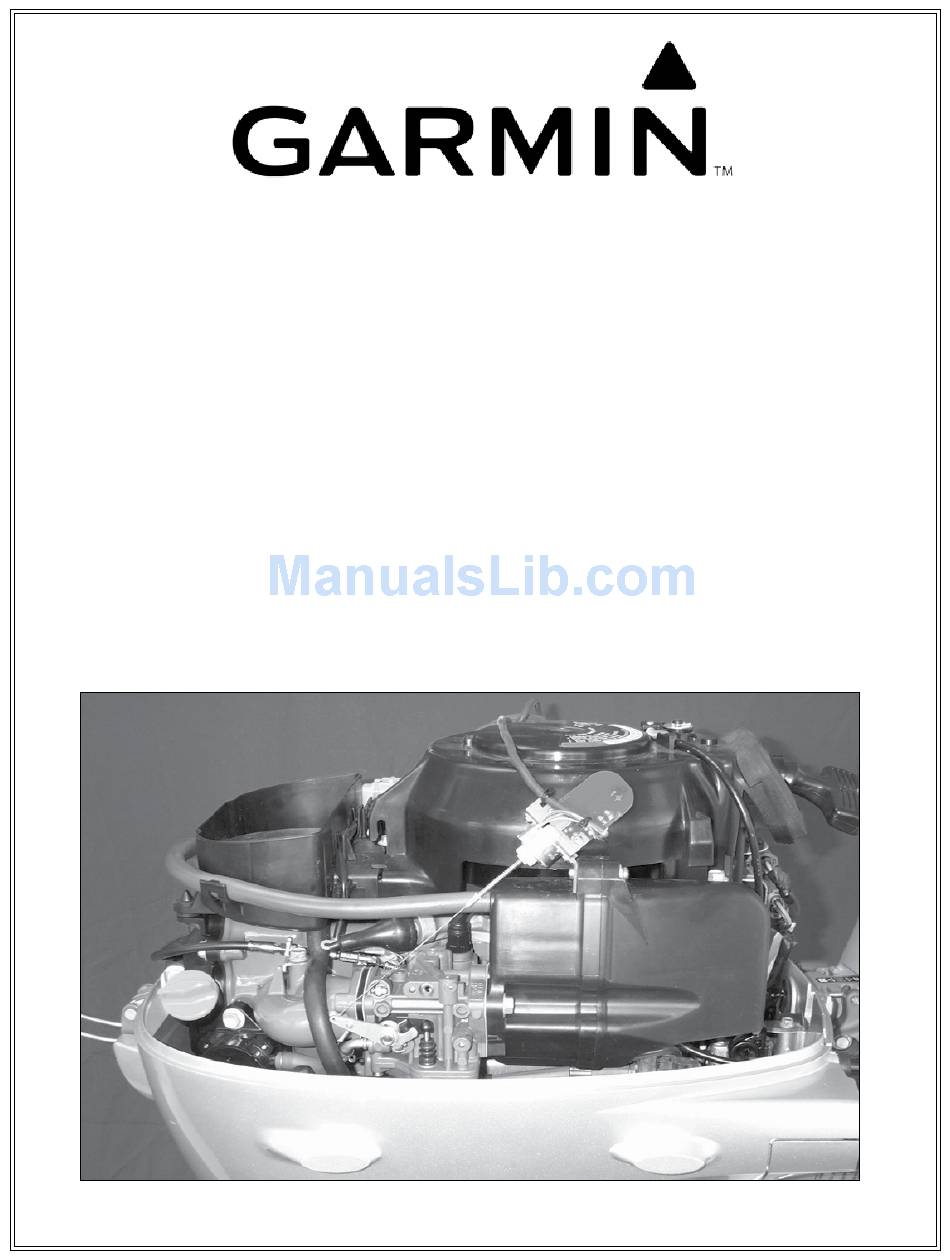

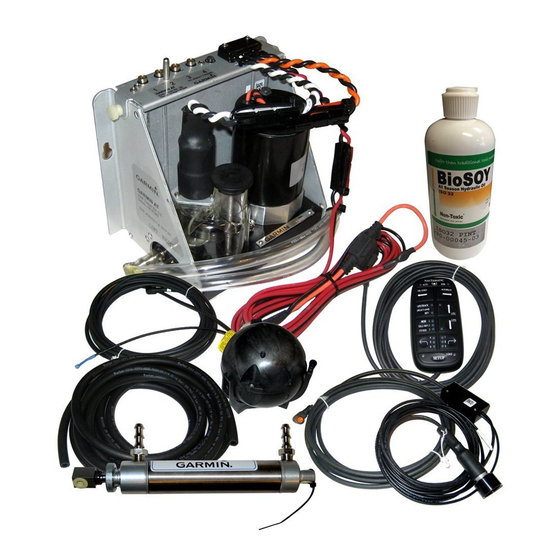

- Page 1 TR-1 Gold Throttle Actuator Installation Instructions Honda 8 HP: 2001 & Newer Honda 9.9 HP: 2001 & Newer Honda 15 HP: 2003 & Newer Honda 20 HP: 2003 & Newer PN 906-1070-00...
- Page 2 ITEM PART NUMBER NAME Parts 120-1055-01 THROTTLE ASSEMBLY Tools Required: One; #1 (small) Phillips Screw Driver One; #2 (regular) Phillips Screw Driver One; Wrench 8 MM One; Wrench 10 MM Thread lock (Loctite or similar (not shown) II. Installing the Throttle Actuator. Step One: Due to the restricted space around the carburetor and intake manifold the...
- Page 3 Step Two: Use the #10 screw provided with the actuator to replace the screw you just removed and attach the throttle actuator assembly (item 1) as shown. Keep both washers on the screw head side of the air horn. Apply a little thread lock to the screw and tighten it.
- Page 4 Step Six: Run the wire that is attached to the actuator out of the motor housing, to the TR-1 Gold E-H unit and plug it in to connector 2. Be sure to route the wire away from moving things around the motor. The best place for the wire exits the motor cowling will depend on many things.
