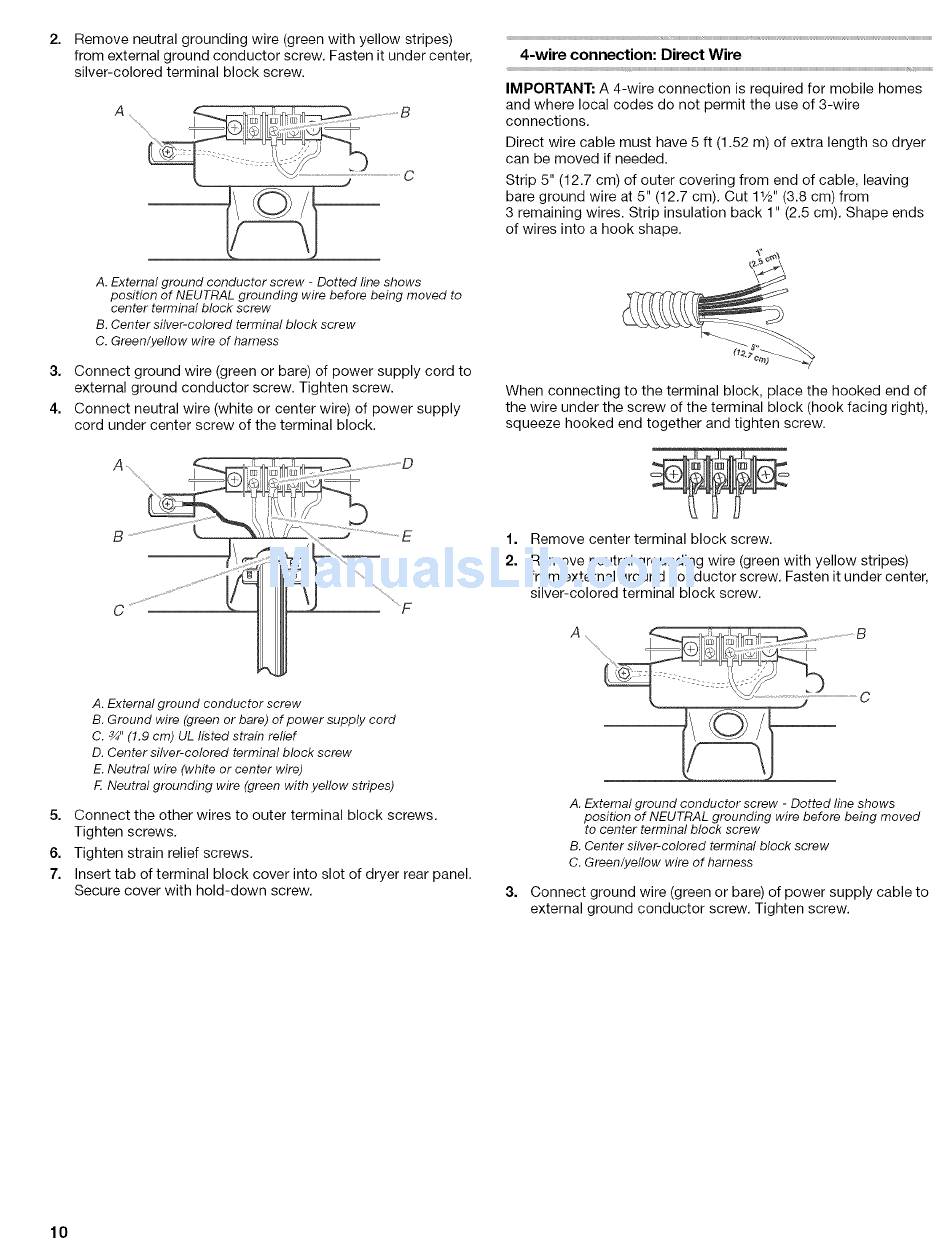

2=
Remove neutral grounding wire (green with yellow stripes)
from external ground conductor screw. Fasten it under center,
silver-colored
terminal block screw.
A
A. External ground conductor screw - Dotted line shows
position of NEUTRAL grounding
wire before being moved to
center terminal block screw
B. Center silver-colored
terminal block screw
C. Green/yeilow
wire of harness
3. Connect ground wire (green or bare) of power supply cord to
external ground conductor screw. Tighten screw.
4. Connect neutral wire (white or center wire) of power supply
cord under center screw of the terminal block.
A. External ground conductor screw
B. Ground wire (green or bare) of power supply cord
C. _" (1.9 cm) UL listed strain relief
D. Center silver-colored
terminal block screw
E. Neutral wire (white or center wire)
F. Neutral grounding
wire (green with yellow stripes)
5. Connect the other wires to outer terminal block screws.
Tighten screws.
6. Tighten strain relief screws.
7.
Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
4-wire connection:
Direct Wire
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5" (12.7 cm) of outer covering from end of cable, leaving
bare ground wire at 5" (12.7 cm). Cut 11/2 '' (3.8 cm) from
3 remaining wires. Strip insulation back 1" (2.5 cm). Shape ends
of wires into a hook shape.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw.
1=
2.
Remove center terminal block screw.
Remove neutral grounding
wire (green with yellow stripes)
from external ground conductor screw. Fasten it under center,
silver-colored
terminal block screw.
3=
A. External ground conductor screw - Dotted line shows
position of NEUTRAL grounding
wire before being moved
to center terminal block screw
B. Center silver-colored
terminal block screw
C. Green/yellow
wire of harness
Connect ground wire (green or bare) of power supply cable to
external ground conductor
screw. Tighten screw.
Page 10
