Front & Rear Panels

Front Panel

(North American models)
(Australian models)

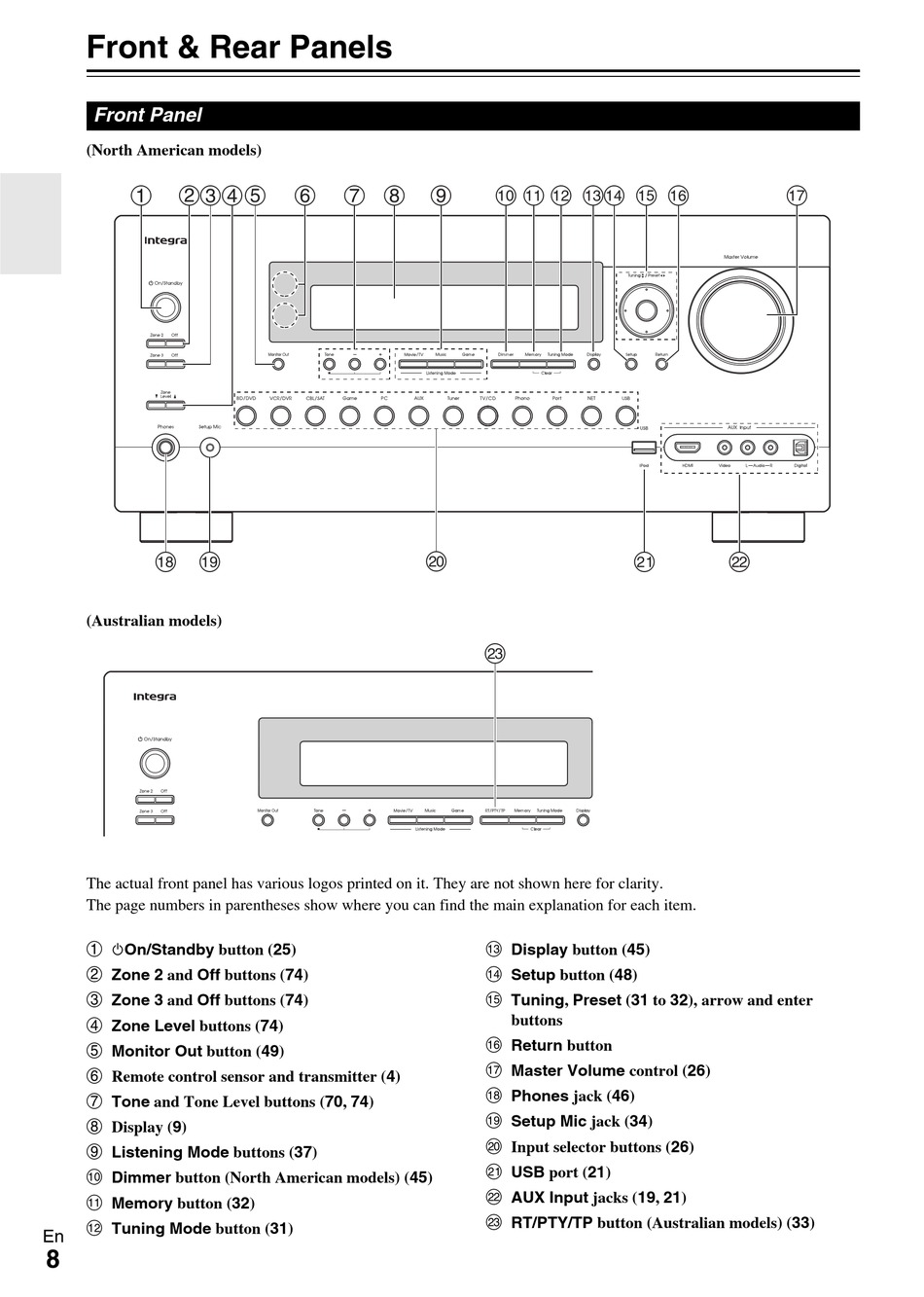

The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
On/Standby button (25)
Zone 2 and Off buttons (74)
Zone 3 and Off buttons (74)
Zone Level buttons (74)
Monitor Out button (49)
Remote control sensor and transmitter (4)
Tone and Tone Level buttons (70, 74)
Display (9)
Listening Mode buttons (37)
Dimmer button (North American models) (45)
Memory button (32)
Tuning Mode button (31)
En
8
Display button (45)
Setup button (48)
Tuning, Preset (31 to 32), arrow and enter
buttons
Return button
Master Volume control (26)
Phones jack (46)
Setup Mic jack (34)
Input selector buttons (26)
USB port (21)
AUX Input jacks (19, 21)
RT/PTY/TP button (Australian models) (33)
