1. Introduction
HEAT MASTER is exclusively designed for electronically controlled boilers and home heaters that contains
electronic control circuitry and electric water pump. Featuring with dynamic voltage regulator, this device can
ensure stable power to connected loads as utility. Equipped with LCD digital display, it provides real-time system
vitals to users. The built-in DC start function enables the HEAT MASTER to be started up without a supply of AC
power. The main features of this HEAT MASTER are listed below:
Microprocessor control guarantees high reliability.
⚫
Built-in enhanced boost & buck AVR
⚫
Fast charger
⚫
Green power function for energy saving
⚫
Auto restart during AC recovery
⚫
Comprehensive LCD display
⚫
External battery connection available for long-term operation
⚫

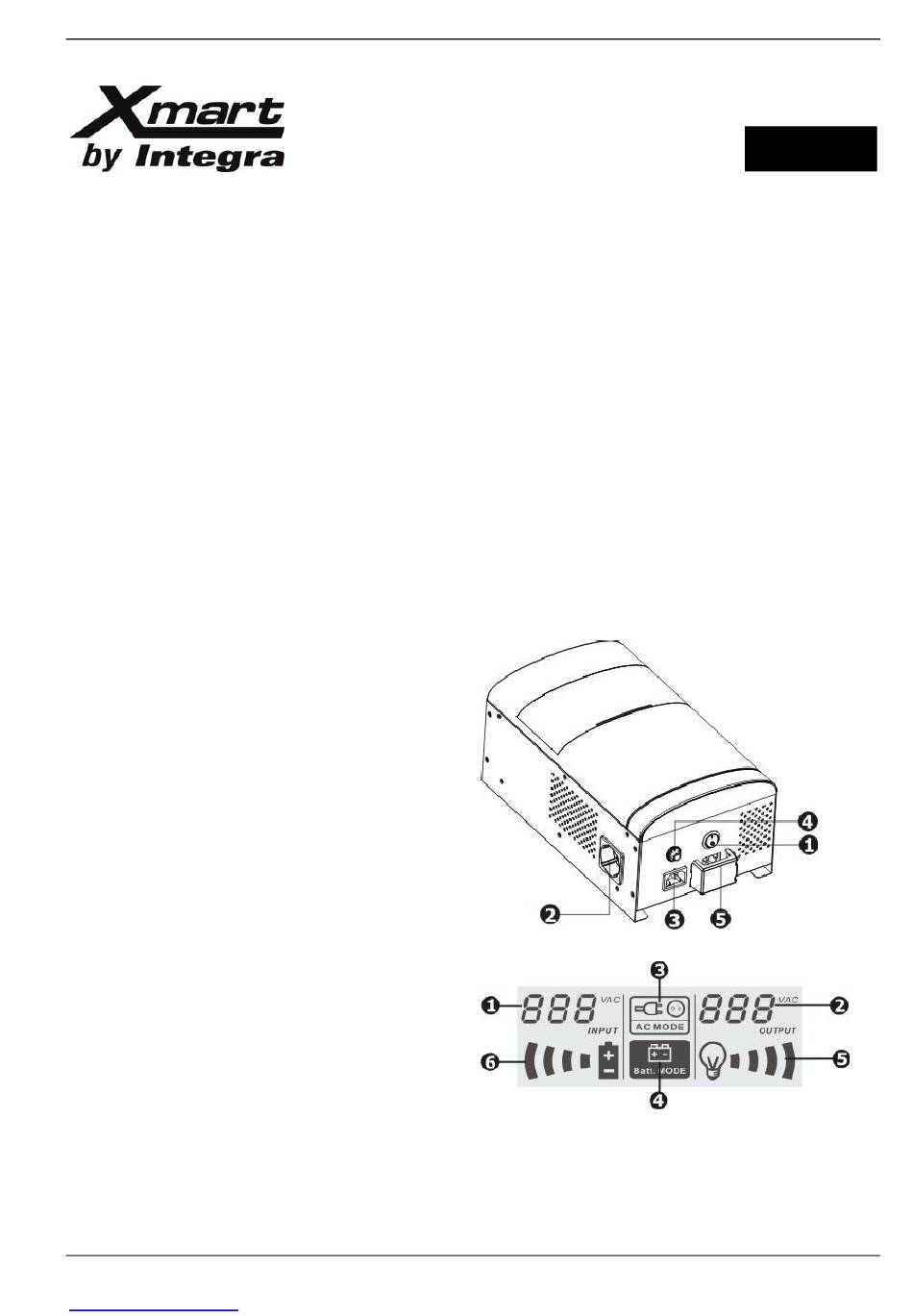

2. Product Overview
Power switch
Output receptacles
AC input
Circuit breaker
External battery connector
LCD Panel:
1 Input voltage
2 Output voltage
3 AC mode indicator
www.xmart-ups.com
4 Battery mode indicator
5 Load level indicator, flashing indicates overload
6 Battery capacity indicator, flashing indicates low battery
Ver 2404.16
HEAT MASTER
ENGLISH
2404.16
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Integra Xmart HEAT MASTER
Summary of Contents for Integra Xmart HEAT MASTER
- Page 1 HEAT MASTER ENGLISH 2404.16 1. Introduction HEAT MASTER is exclusively designed for electronically controlled boilers and home heaters that contains electronic control circuitry and electric water pump. Featuring with dynamic voltage regulator, this device can ensure stable power to connected loads as utility. Equipped with LCD digital display, it provides real-time system vitals to users.
- Page 2 3. Important Safety Warning (SAVE THESE INSTRUCTIONS) CAUTION To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.) To reduce the risk of overheating the HEAT MASTER, do not cover the HEAT MASTER cooling vents and avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.
- Page 3 Chart 1 Chart 2 Connection to External Battery Bank If additional runtime is required connect Heat Master to external battery pack. WARNING!!!!: Battery connection does not accept reverse polarity. ▪ Left terminal (+) in Heat Master must be connected to left terminal (+) in Ext. Battery ▪...
- Page 4 5. Trouble Shooting Problem Possible Cause Solutions Low battery. Charge at least 4-6 hours. HEAT MASTER cannot be turned on after pressing the power switch. Battery fault. Replace the battery with the same type Remove some loads first. Before reconnecting equipment, verify that the HEAT MASTER is overloaded.
