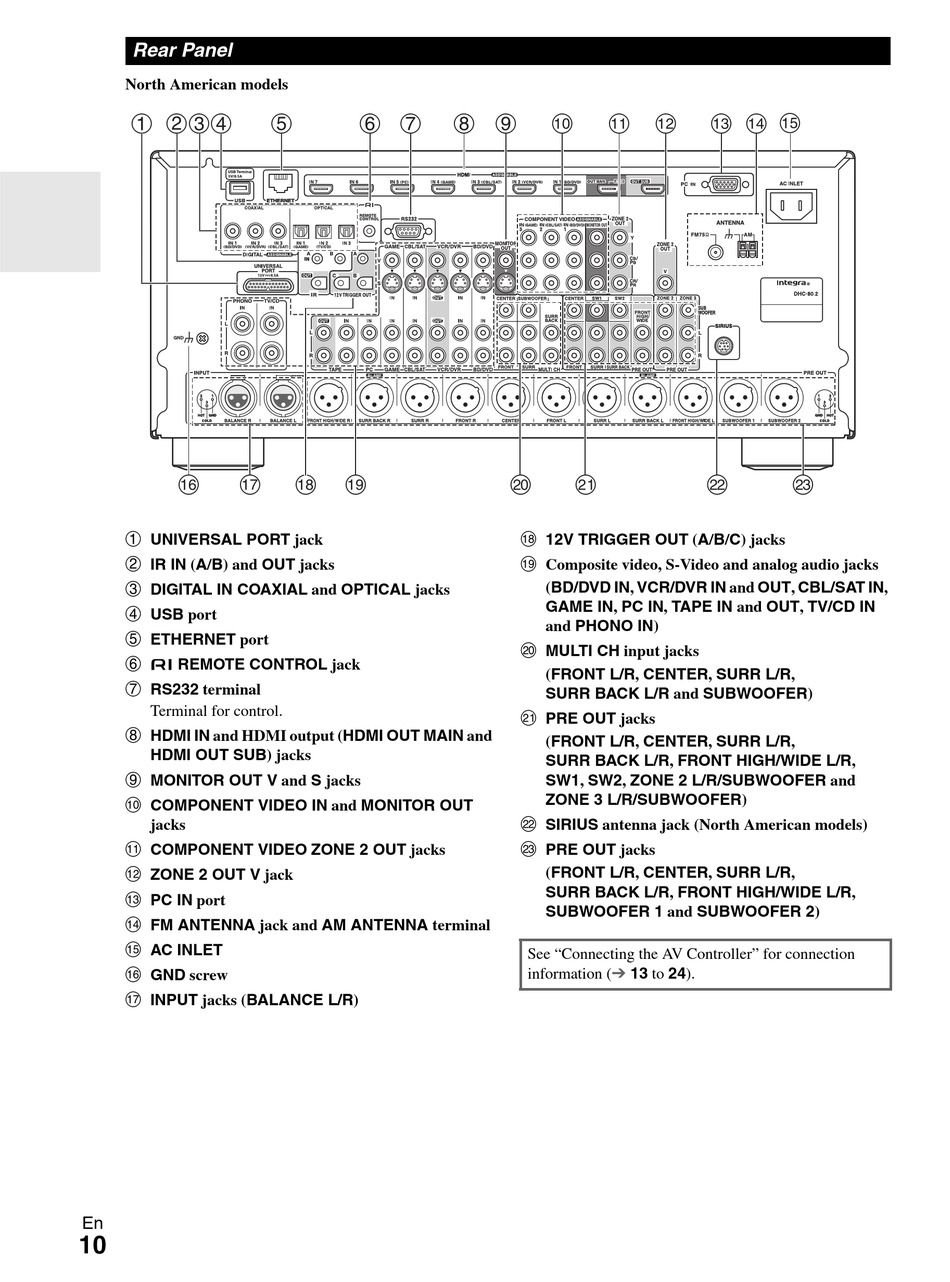

Rear Panel

North American models
UNIVERSAL PORT jack
IR IN (A/B) and OUT jacks
DIGITAL IN COAXIAL and OPTICAL jacks
USB port
ETHERNET port
REMOTE CONTROL jack
RS232 terminal
Terminal for control.
HDMI IN and HDMI output (HDMI OUT MAIN and
HDMI OUT SUB) jacks
MONITOR OUT V and S jacks
COMPONENT VIDEO IN and MONITOR OUT
jacks
COMPONENT VIDEO ZONE 2 OUT jacks
ZONE 2 OUT V jack
PC IN port
FM ANTENNA jack and AM ANTENNA terminal
AC INLET
GND screw
INPUT jacks (BALANCE L/R)
En
10
12V TRIGGER OUT (A/B/C) jacks
Composite video, S-Video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TAPE IN and OUT, TV/CD IN
and PHONO IN)
MULTI CH input jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R and SUBWOOFER)
PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2, ZONE 2 L/R/SUBWOOFER and
ZONE 3 L/R/SUBWOOFER)
SIRIUS antenna jack (North American models)
PRE OUT jacks
(FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SUBWOOFER 1 and SUBWOOFER 2)
See "Connecting the AV Controller" for connection
information (➔ 13 to 24).
