Installing The Range; Installing The Bracket In Wood Or Concrete - GE JSP47, JSP57, JS968 Installation Instructions Manual

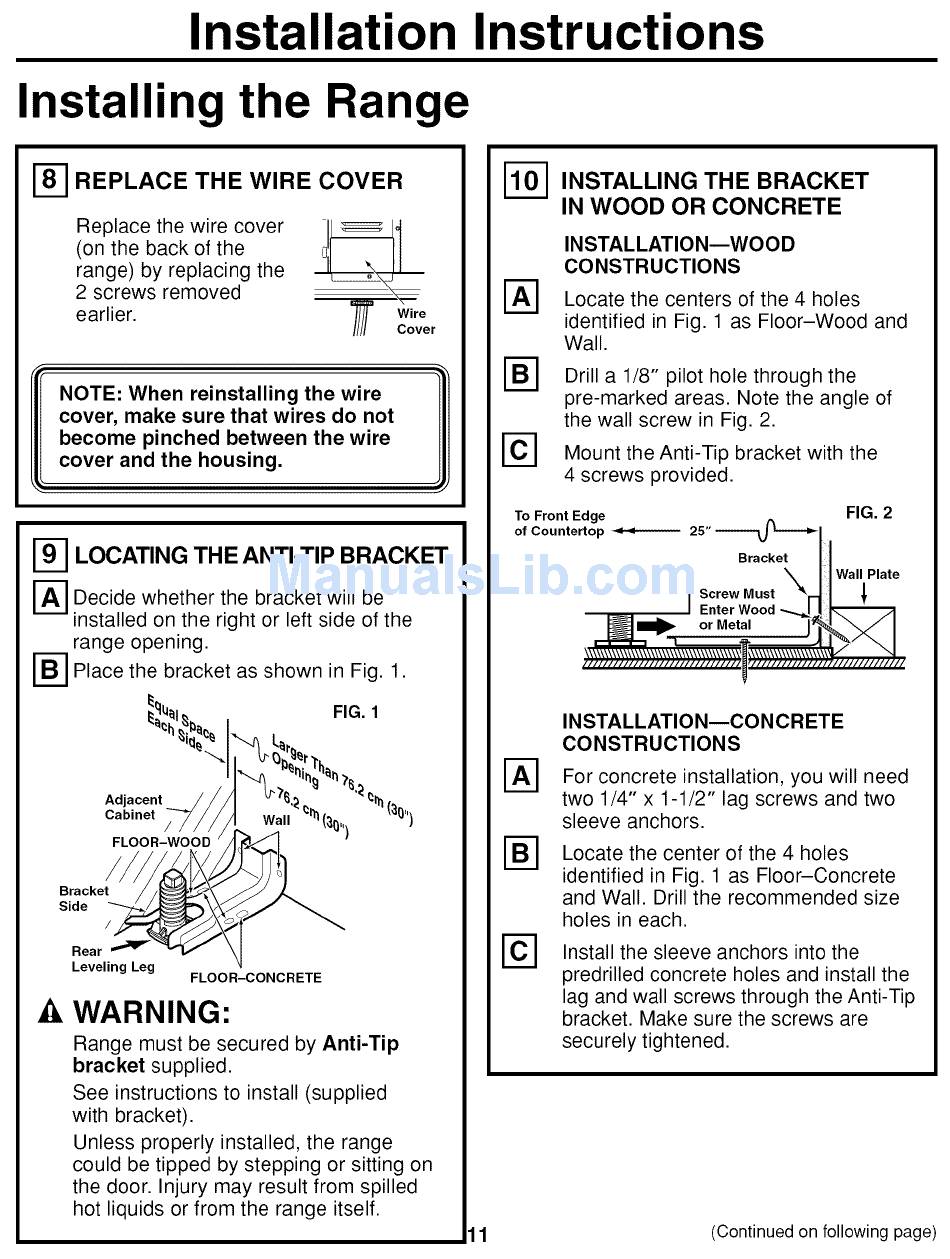

Installation Instructions
Installing the Range
r-_ REPLACE THE WIRE COVER
Replace the wire cover
(on the back of the
range) by replacing the
2 screws removed
earlier.
=_ Wire
I//I Cover
NOTE: When reinstalling the wire
cover, make sure that wires do not
become pinched between the wire
cover and the housing.
m i
r_ LOCATING THE ANTI-TIP BRACKET
[-_ Decide whether the bracket will be
installed on the right or left side of the
range opening.
I-B] Place the bracket as shown in Fig. 1.
_%_1 FIG. 1
"-_ _ V'_l_r" r-
Adjacent //A "__ }_,_ (_. _'_ (:1_ (_0"
Cabinet /_//_ Wall "(_,,) )
FLOOR-WOOD
Bracket
Side
/
Rear
Leveling Leg
FLOOR-CONCRETE
WARNING:
Range must be secured by Anti-Tip
bracket supplied.
See instructions to install (supplied
with bracket).
Unless properly installed, the range
could be tipped by stepping or sitting on
the door. Injury may result from spilled
hot liquids or from the range itself.
11
[_-_ INSTALLING THE BRACKET
IN WOOD OR CONCRETE
@
INSTALLATION_WOOD
CONSTRUCTIONS
Locate the centers of the 4 holes
identified in Fig. 1 as Floor-Wood and
Wall.
Drill a 1/8" pilot hole through the
pre-marked areas. Note the angle of
the wall screw in Fig. 2.
Mount the Anti-Tip bracket with the
4 screws provided.
To Front Edge
of Countertop _ 25" ------_ _---_
Bracket
Screw Must X
Enter Wood
or Metal
FIG. 2
Wall Plate
N
N
@
INSTALLATION_CONCRETE
CONSTRUCTIONS
For concrete installation, you will need
two 1/4" x 1-1/2" lag screws and two
sleeve anchors.
Locate the center of the 4 holes
identified in Fig. 1 as Floor-Concrete
and Wall. Drill the recommended size
holes in each.
Install the sleeve anchors into the
predrilled concrete holes and install the
lag and wall screws through the Anti-Tip
bracket. Make sure the screws are
securely tightened.
(Continued on following page)
