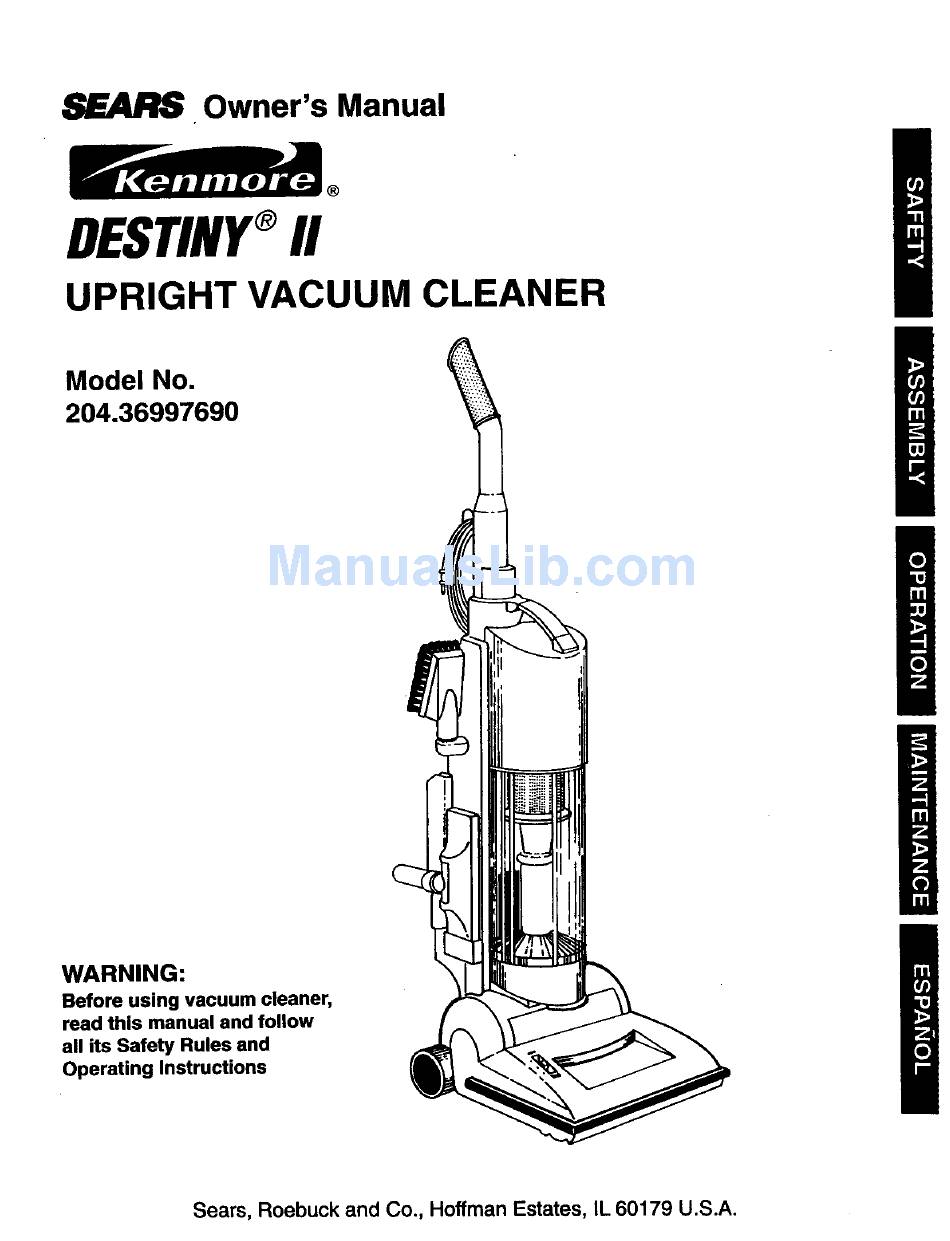

Owner's Manual
®
DES TINY®II
UPRIGHT VACUUM CLEANER
Model No.
204.36997690
WARNING:
Before using vacuum cleaner,
read this manual and follow
all its Safety Rules and
Operating
Instructions
Sears, Roebuck
and Co., Hoffman Estates, IL 60179 U.S.A.

Advertisement

loading

  Summary of Contents for Kenmore Sears Destiny II 204.36997690

  • Page 1 Owner's Manual ® DES TINY®II UPRIGHT VACUUM CLEANER Model No. 204.36997690 WARNING: Before using vacuum cleaner, read this manual and follow all its Safety Rules and Operating Instructions Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
  • Page 2: Table Of Contents

    • Important Safety Instructions ....................• Storage Position ........................• Assembly • Connecting the Handle ......................• Attachments ........................• Operation: • Power Cord Use & Storage ....................• Upright Release ........................• Switch ..........................• Carpet Height Adjustment ....................•...
  • Page 3: Important Safety Instructions

    When using an electrical appliance, basic precautions should be followed, including the following: READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS APPLIANCE. WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when it is plugged in.
  • Page 4: Storage Position

    DearKenmoreDESTINY _ II Vacuum Owner: Congratulations! You are now the proud owner of one of the finest vacuum cleaners made in North America. The DESTINY II vacuum represents a remarkable advance in household cleaning. It all began when its originators challenged the traditional standards...
  • Page 5: Assembly

    ASSEMBLY Dusting Brush Crevice Tool The Handle/Wand Assembly has been packed separately with the main unit. To assemble the Wand into the Hose: • Hold the Hose Collar tightly in one hand. • Insert the Wand end into the Hose Collar and push firmly until the Wand enters and slides easily into FIGURE Floor Nozzle...
  • Page 6: Upright Release

    OPERATION • With the machine "Off" and in the upright position, push the Slide to the top for low pile (_), to the Upright Release center for medium pile, and to the bottom for high • To release the machine from its Upright Storage pile ( _ ).
  • Page 7: Activating The Cleaning Wand

    OPERATION Helpful Hints: • When using the Cleaning Wand, to ensure Activating the Cleaning Wand maximum performance and convenience, fully (For Bare Floor and Above Floor Cleaning) extend the Wand from the Hose and then grip The DESTINY II vacuum cleaner's handle is able to either the Wand or Hose Cuff.
  • Page 8: Attachments To Hose

    OPERATION • Before returning the Bin to the machine: - Make sure all the dirt has been removed Attachments to Hose from the Collection Bin. The attachments can be fitted onto the end of the Cleaning - Remove any dirt or lint that may have Wand as per Figure 11 on page 5, or for added versatility, accumulated...
  • Page 9: Overload Protection

    OPERATION • Press the Reset Button if the Ovedoad Protection System has again shut the machine down. Overload Protection (Figure The DESTINY II vacuum has an ovedoad protection If you do not find any blockage in this area, and/or system that is designed to shut the motor off if it is the machine shuts itself off or the loss of suction subjected to an excessive load.
  • Page 10: Replacing A Broken Belt

    MAINTENANCE For a replacement belt, contact your nearest authorized Sears Service Center. • Replace Cover by hooking all 3 Cover lock tabs Pull the Brush Assembly toward you, and insert into the 3 tab slots of the Base Assembly. the right hand metal plate into the base slot from (Figure 23) which it was previously removed.
  • Page 11: Removing A Used Hepa Filter Cartridge

    MAINTENANCE Removing a Used Filter Cartridge Replace filter when the button pops out of the back of the air duct and shows red when vacuuming. (Figure 25) The Filter cartddge should last for more than a year when the machine is used for normal household purposes.
  • Page 12: Service Contact Numbers

    Forthe repairorreplacement p artsyouneed delivereddirectly to yourhome Call7 am - 7 pm, 7 daysa week 1-8OO-366-PART (1-800-366-7278) Forin-homemajorbrandrepairservice Call24 hoursa day,7 daysa week 1-8OO-4-REPAIR (1-800-473-7247) Forthe locationofa SearsPartsandRepairCenterin yourarea Call24 hoursa day,7 daysa week mmmmmm mmmmmm 1-800-488-1222 Maintenance Agreement o rto inquire aboutan existing Agreement call9 am - 5 pro, Monday-Saturday Forinformation onpurchasing a Sears...

This manual is also suitable for:

Destiny ii 204.36997690
