SEARS
OWNER'S
MANUAL
DESTINY _ PLUS
THE UPRIGHT
WITH
CANISTER
POWER
MODEL NO.
204.36999690
CAUTION
Before using this product,
read this manual and
follow all Safety Rules and
Operating Instructions
SAVE THIS
MANUAL FOR
FUTURE REFERENCE
Kenmore"
DESTINY° PLUS
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Advertisement

loading

  Summary of Contents for Kenmore DESTINY PLUS 204.3699969

  • Page 1 WITH CANISTER POWER MODEL NO. 204.36999690 CAUTION Before using this product, read this manual and follow all Safety Rules and Operating Instructions SAVE THIS MANUAL FOR FUTURE REFERENCE Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Kenmore" DESTINY° PLUS...
  • Page 2 DESTINY°PLUS THE UPRIGHT WITH CANISTER POWER...
  • Page 3: Table Of Contents

    When used for private household purposes, if within one year from the date of purchase, this vacuum cleaner fails due to a defect in material or workmanship, RETURN IT TO THE NEAREST SEARS SERVICE CENTER DEPARTMENT IN THE UNITED STATES and Sears will repair it free of charge.
  • Page 4: Important Safety Instructions

    Do not use with damaged cord or plug. If the appliance is not working as it should, if it has been dropped, damaged, left outdoors, or has been dropped into water, return it to an authorized Sears Service Center for inspection.
  • Page 5: Introduction

    Dear DESTINY e Plus Owner: Congratulations! You are now the proud owner of one of the finest vacuum cleaners made in North America. The DESTINY e Plus vacuum represents a remarkable advance in household cleaning. It all began when its originators challenged the traditional standards of vacuuming performance. They sought to improve upon existing technology by harnessing the force of two cyclones in sequence.
  • Page 6: Connecting The Handle

    CONNECTING The Handle/Wand Assembly has been packed separately with the main unit. To assemble the Wand into the Hose: a) Hold the Hose Collar tightly in one hand. b) Insert the Wand end into the Hose Collar and push firmly until the Wand enters and slides easily into the full length of the Hose, Make sure the Wand reaches the bottom of the Hose.
  • Page 7: Updght Release

    B. UPRIGHT RELEASE 1, To release the machine from its Upright Storage Position, simply press down on the Upright Release Pedal with your foot. (Figure 6) 2. Lower the Handle to your normal operating position. The DESTINY _ PLUS vacuum cleaner will work at any angle you are comfortable with.
  • Page 8: Activating The Cleaning Wand

    G. ACTIVATING THE CLEANING WAND The DESTINY e PLUS vacuum cleaner's Handle is able to turn itself into a Cleaning Wand with 10 feet of reach. 1. To activate the Cleaning Wand, first put the machine in its upright position. 2.

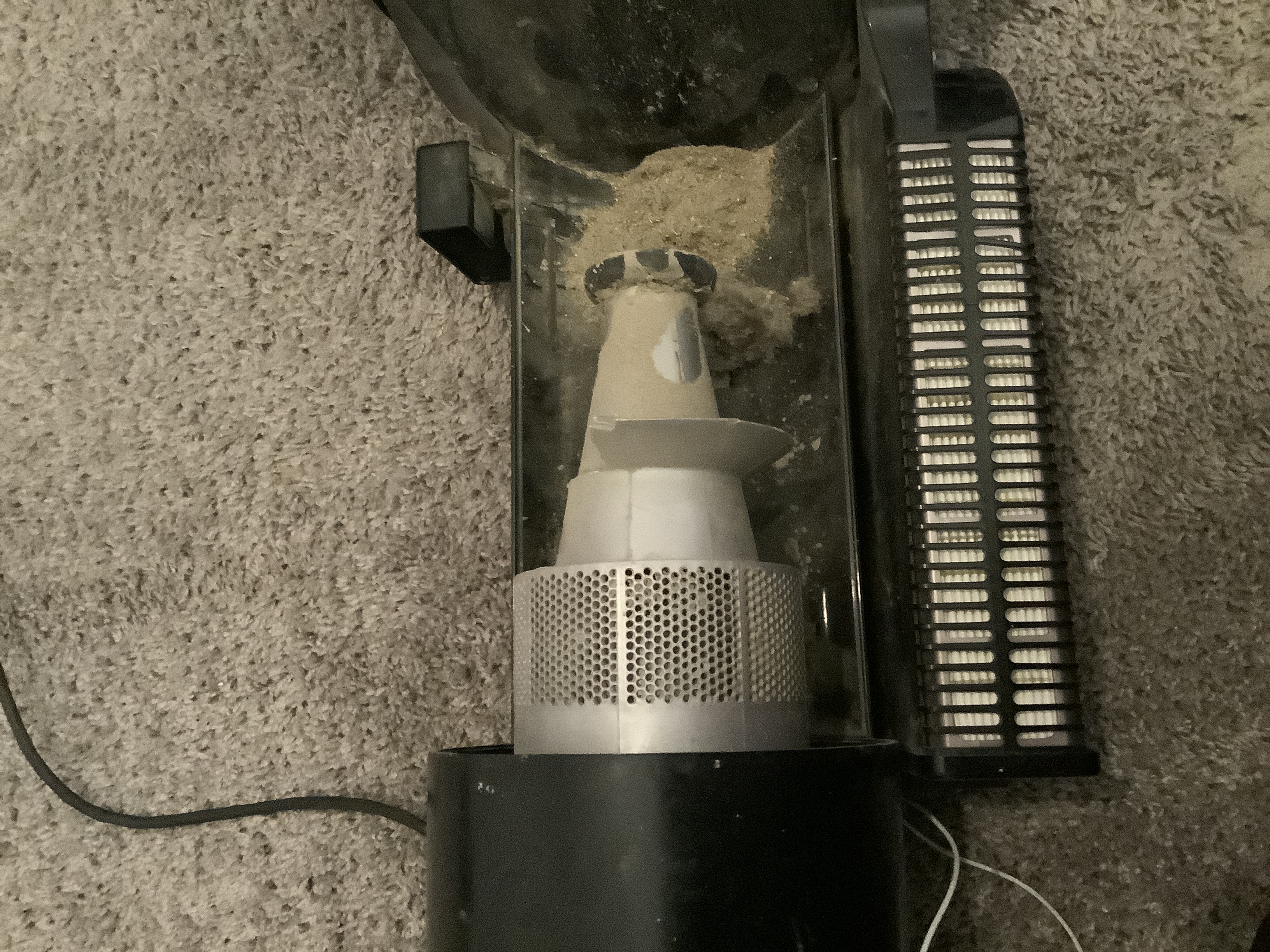

  • Page 9: Emptying The Collection Bin

    3. Hold the Hose Collar in one hand and with thumb and finger press in both latches on the Hose Collar. (figure 14) With the latches pressed in, use the other hand to pull the Wand out of the Hose Collar. (Figure 14) Helpful Hint For easier remova/ of the Wand, rotate it as you puff it out of the Hose Co//ar.
  • Page 10: Maintenance

    A. BLOCKAGE ALARM When the air intake of the machine is substantially restricted or blocked, a whistling sound will be heard at the top of the machine. If this occurs, check for a blockage. (see "REMOVING A BLOCKAGE") B. REMOVING A BLOCKAGE If the DESTINY °...
  • Page 11 5 tabs are still engaged. Refasten the screws. Do not over tighten. If the machine still does not start, or if you still experience a loss of suction power, then take it to an authorized Sears Service Center for repair by an Authorized Service Technician.
  • Page 12: Replacing A Broken Belt

    C. REPLACING A BROKEN BELT 1. Unplug the machine. 2. Remove the Lower Base Cover (as described previously in Removing a Blockage). 3, Lift the Brush Assembly up and out of the slots of the base that retain the metal plates on each end of the Brush Assembly.
  • Page 13: Removing A Used Hepa Filter Cartridge

    E. REMOVING A USED HEPA FILTER CARTRIDGE. Replace filter when button pops up and shows red while vacuuming. (Fig. 25) The Filter Cartridge should last for more than a year when the machine is used for normal household purposes. 1. Unplug the machine. 2.
  • Page 14: Replacement Of Filter Housing

    G. REPLACEMENT OF FILTER HOUSING 1. Unplug the machine. 2. If dis-assembly of the Filter Housing is required, press in the Filter Housing Latch Button and slide the Filter Housing upward until free. (Figure 29) 3. To re-assemble, locate the Filter Housing Post Pocket over the Bottom Post of the vacuum cleaner while also positioning the Filter Housing Tab above the Vacuum Cleaner Housing Tab.
  • Page 15 DESTINY ° PLUS THE UPRIGHT WITH CANISTER POWER...
  • Page 16 For the repair For in-home Sears Parts and Service Center For more information Sears or to inquire PT. NO. 71510-1" or replacement Call 7 am-7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) major brand Call 24 hours a day, 7 days a week 1-800-4-MY-HOME"...
