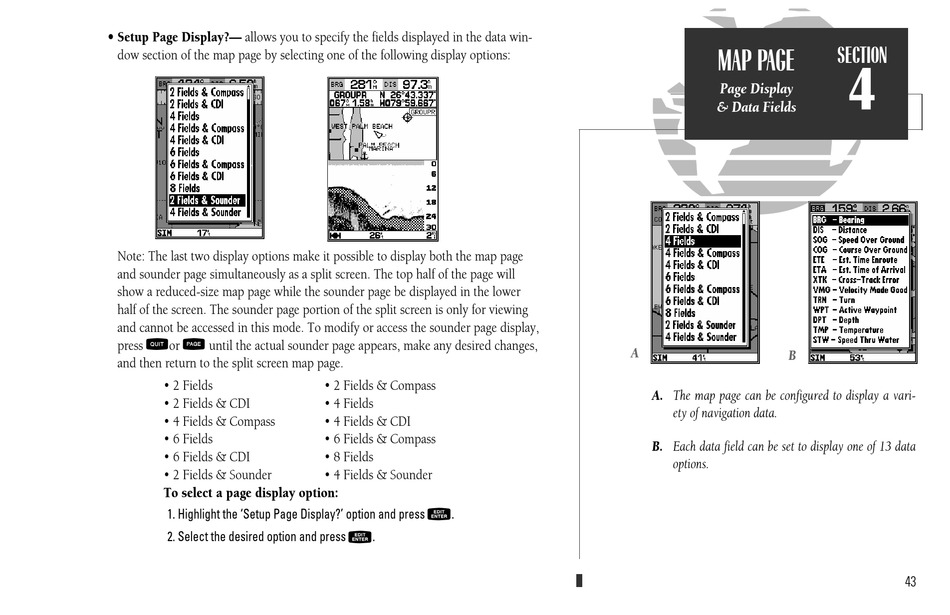

• Setup Page Display?— allows you to specify the fields displayed in the data win-
dow section of the map page by selecting one of the following display options:
Note: The last two display options make it possible to display both the map page
and sounder page simultaneously as a split screen. The top half of the page will
show a reduced-size map page while the sounder page be displayed in the lower
half of the screen. The sounder page portion of the split screen is only for viewing
and cannot be accessed in this mode. To modify or access the sounder page display,
press Qor J until the actual sounder page appears, make any desired changes,
and then return to the split screen map page.
• 2 Fields
• 2 Fields & CDI
• 4 Fields & Compass
• 6 Fields
• 6 Fields & CDI
• 2 Fields & Sounder
To select a page display option:
1. Highlight the 'Setup Page Display?' option and press
2. Select the desired option and press
• 2 Fields & Compass
• 4 Fields
• 4 Fields & CDI
• 6 Fields & Compass
• 8 Fields
• 4 Fields & Sounder
T
.
T
.
MAP PAGE
Page Display
& Data Fields
A
B
A. The map page can be configured to display a vari-
ety of navigation data.
B. Each data field can be set to display one of 13 data
options.
SECTION
4
43
