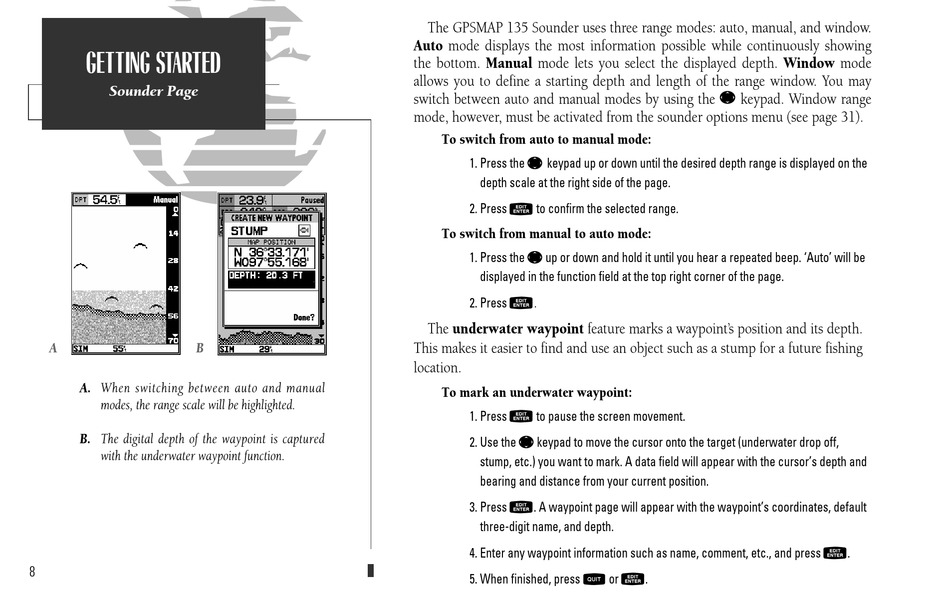

GETTING STARTED
Sounder Page
A B
A. When switching between auto and manual
modes, the range scale will be highlighted.
B. The digital depth of the waypoint is captured
with the underwater waypoint function.
8
The GPSMAP 135 Sounder uses three range modes: auto, manual, and window.
Auto mode displays the most information possible while continuously showing
the bottom. Manual mode lets you select the displayed depth. Window mode
allows you to define a starting depth and length of the range window. You may
switch between auto and manual modes by using the R keypad. Window range
mode, however, must be activated from the sounder options menu (see page 31).
To switch from auto to manual mode:
R
1. Press the keypad up or down until the desired depth range is displayed on the
depth scale at the right side of the page.
T
2. Press to confirm the selected range.
To switch from manual to auto mode:
R
1. Press the up or down and hold it until you hear a repeated beep. 'Auto' will be
displayed in the function field at the top right corner of the page.
T .
2. Press
The underwater waypoint feature marks a waypoint' s position and its depth.
This makes it easier to find and use an object such as a stump for a future fishing
location.
To mark an underwater waypoint:
T
1. Press to pause the screen movement.
R
2. Use the keypad to move the cursor onto the target (underwater drop off,
stump, etc.) you want to mark. A data field will appear with the cursor's depth and
bearing and distance from your current position.
T
3. Press . A waypoint page will appear with the waypoint's coordinates, default
three-digit name, and depth.
4. Enter any waypoint information such as name, comment, etc., and press
Q
5. When finished, press
T
or .
T
.
