Overview
A B

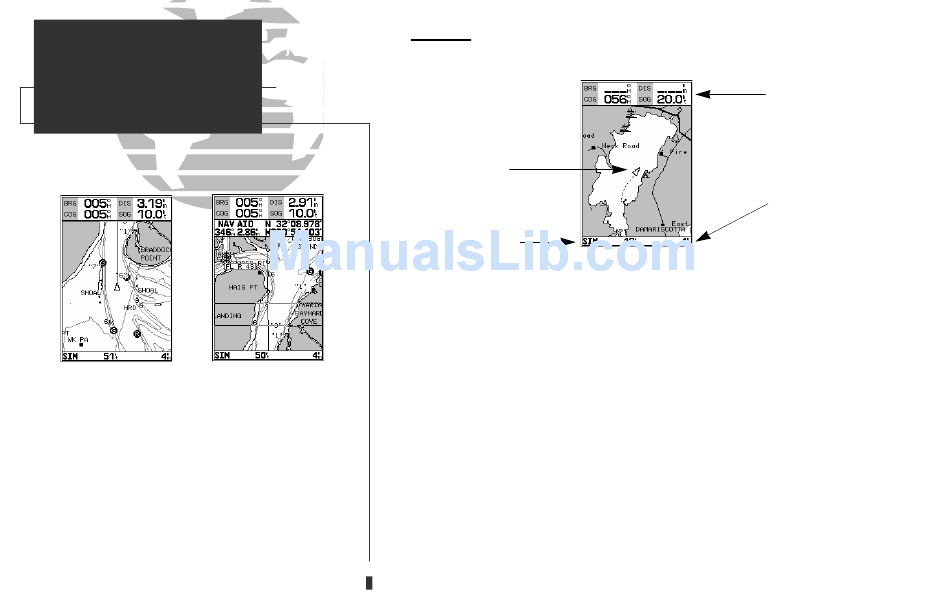

A. Use the cursor to pan ahead to other map areas.
The map display will automatically scroll for-
ward when you reach the edge of the map.
B. To select or 'highlight' an on-screen navaid or
waypoint, simply move the cursor over the way-
point symbol. The cursor will 'snap' to the way-
point, and display its name and position in the
data field.
36
Map Page
Boat
Icon
Status
Bar
The GPSMAP 135 Sounder' s map page provides a comprehensive display of
electronic cartography, plotting and navigational data. The map display shows
your boat on a digital chart, complete with geographic names, navaids, depth con-
tours and a host of other chart features. It also plots your track and displays any
routes and waypoints you create. An on-screen cursor lets you pan and scroll to
other map areas, determine the distance and bearing to a position, and perform
various route and waypoint functions.
The data window, located at the top of the page, provides a user-selectable
display of your current course and speed over ground, along with the bearing and
distance to a destination waypoint. Whenever the cursor is active, an additional
data window will appear below to indicate the position, range and bearing to the
cursor or a selected waypoint or navaid. Each data field may be configured to dis-
play any one of thirteen data options. The data window may also be changed to
display additional data fields, a compass tape, or a CDI scale. The status bar at
the bottom of the page displays the map scale currently in use.
Data
Window
Map
Scale
