Drobo B1200i Manual

Deploy with microsoft hyper-v clustering
Hide thumbs Also See for B1200i:

Advertisement

Quick Links

Download this manual See also: Manual

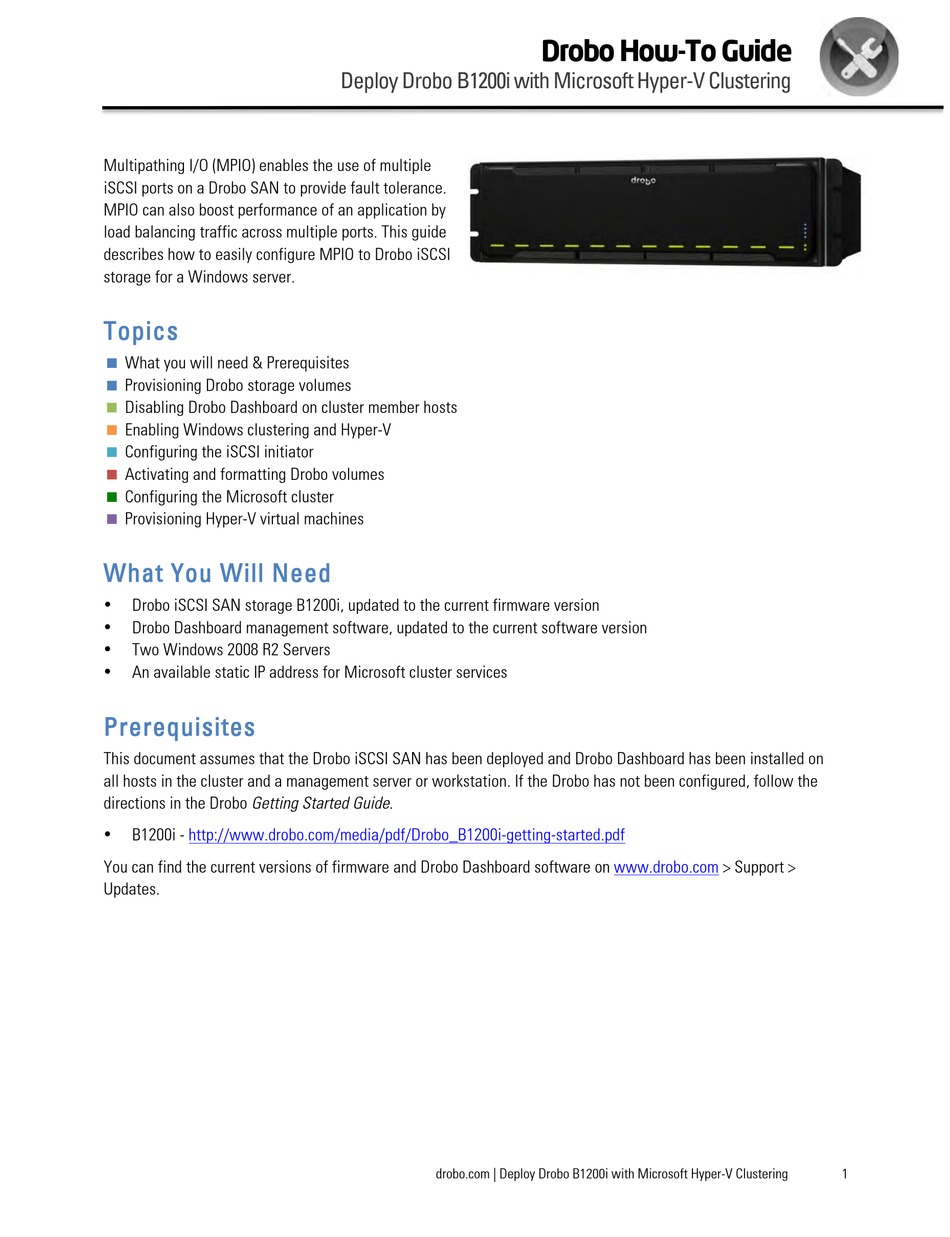

Multipathing I/O (MPIO) enables the use of multiple
iSCSI ports on a Drobo SAN to provide fault tolerance.
MPIO can also boost performance of an application by
load balancing traffic across multiple ports. This guide
describes how to easily configure MPIO to Drobo iSCSI
storage for a Windows server.
Topics
What you will need & Prerequisites
Provisioning Drobo storage volumes
Disabling Drobo Dashboard on cluster member hosts
Enabling Windows clustering and Hyper-V
Configuring the iSCSI initiator
Activating and formatting Drobo volumes
Configuring the Microsoft cluster
Provisioning Hyper-V virtual machines

What You Will Need

Drobo iSCSI SAN storage B1200i, updated to the current firmware version
•
•
Drobo Dashboard management software, updated to the current software version
•
Two Windows 2008 R2 Servers
An available static IP address for Microsoft cluster services
•
Prerequisites
This document assumes that the Drobo iSCSI SAN has been deployed and Drobo Dashboard has been installed on
all hosts in the cluster and a management server or workstation. If the Drobo has not been configured, follow the
directions in the Drobo Getting Started Guide.
B1200i -
http://www.drobo.com/media/pdf/Drobo_B1200i-getting-started.pdf
•
You can find the current versions of firmware and Drobo Dashboard software on
Updates.
Deploy Drobo B1200i with Microsoft Hyper-V Clustering
drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering
Drobo How-To Guide
www.drobo.com
> Support >
1

Advertisement

loading

Related Manuals for Drobo B1200i

Summary of Contents for Drobo B1200i

  • Page 1: What You Will Need

    This document assumes that the Drobo iSCSI SAN has been deployed and Drobo Dashboard has been installed on all hosts in the cluster and a management server or workstation. If the Drobo has not been configured, follow the directions in the Drobo Getting Started Guide.
  • Page 2 Add Volume to launch the volume creation wizard. STEP 2 Select Cluster (Multi- Host) as the format type and click Next. The multi-host format type permits multiple hosts to connect to the same storage volume. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 3 Click Finish to complete the wizard. STEP 4 The second volume will be used to store Hyper-V virtual machines hard disks. Repeat steps 1 - 4 to create a 16TB for virtual machine storage. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 4 Windows Clustering is an advanced application and requires manual configuration of the iSCSI settings. The newly created volumes will not be mounted from the Drobo Dashboard. STEP 6 Click on Device Settings > Network to view the Drobo’s network...
  • Page 5 Drobo Dashboard typically handles all aspects of provisioning and mapping storage on Windows hosts. During installation it also modifies a number of registry settings to optimize iSCSI performance with the Drobo SAN. In a clustered environment, the Dashboard’s fault monitoring can interfere with disk migration between hosts. To provide the best performance while ensuring disk failover performs seamlessly, the Dashboard must be installed and then disabled on all cluster members.
  • Page 6 Repeat steps 1 – 3 on all remaining cluster hosts. Management of the Drobo must now be performed from a management server, workstation, or any non-clustered host. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 7 Start > All Programs > Administrator Tools > Server Manager. To launch the Add Features wizard, select Action > Add Features. To launch the Server Manager from the run command, enter ServerManagerCmd.exe and press enter. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 8 Step 1 to load the Server Manager. Select Action > Add Roles to launch the Add Roles Wizard. Select the Hyper-V role and click Next to continue. Click Next on the Introduction to Hyper-V screen. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 9 OK. STEP 5 Repeat all the steps in this section on the secondary server to be used in the cluster to enable the required roles and features. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...

  • Page 10: Configuring The Iscsi Initiator

    Deploy Drobo B1200i with Microsoft Hyper-V Clustering Configuring the iSCSI Initiator The iSCSI initiator maps Drobo SAN storage to the server and is normally automatically configured by Drobo Dashboard. Windows clustering, however, is an advanced topic and requires steps that are not supported by Drobo Dashboard.
  • Page 11 If the target is not listed, click Refresh to rescan for available targets. If the target still does not appear, verify that the discovery portals were entered correctly in steps 1 – 3. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 12 Drobo iSCSI IP. Click OK to exit the Advanced Settings. Click OK on the Connect to Target menu and OK again on the iSCSI Initiator Properties to add connection to the Drobo. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 13 OK. STEP 9 Repeat all the steps in this section on the secondary server in the cluster to establish redundant connectivity to the cluster volumes on the Drobo SAN. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 14 Disk Management. Click Cancel to abort any disk initialization popups that are displayed. STEP 2 Under Disk Management, scroll through the available disks to find the quorum and Hyper-V cluster disks. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 15 GPT (GUID Partition Table). Click OK to initialize the disk. STEP 5 Right-click in the Unallocated partition box and choose New Simple Volume from the menu. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 16 Next. STEP 7 In the Assign Drive Letter or Path screen, select Do not assign a drive letter or path and click Next. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 17 Repeat steps 1 – 8 to initialize and format the Hyper-V cluster disk. STEP 10 Verify that both cluster volumes display healthy NTFS partitions with no drive letters assigned. NOTE: No additional operations are required on the second server. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 18 Once both servers have been added, click Next at the bottom right. On the next screen select All Tests and click Next. STEP 3 In the Testing Options screen, select All Tests and click Next. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 19 Report to obtain details on the subsystem(s) that failed. Drobo Dashboard and SAN firmware must be updated to the latest firmware. If the warnings or failures are iSCSI related, begin by verifying the Drobo SAN has been updated. For assistance in diagnosing validation failures, consult this Microsoft technet article: http://technet.microsoft.com/en-us/library/cc772055(v=ws.10).aspx...
  • Page 20 Enter a cluster name and an available static IP address. Click Next to continue. Verify that the configuration settings are correct on the summary page and click Next to create the cluster. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 21 Failover Cluster Manager to expand the menu. In the Actions pane on the right, select Enable Cluster Shared Volumes and click OK to accept the notice and enable the feature. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 22 The cluster is now provisioned and is ready to deploy virtual machines. STEP 11 Select the Hyper-V cluster disk and click OK. The cluster is now provisioned and is ready to deploy virtual machines. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 23 For more information on Cluster Shared Volumes, consult this Microsoft technet article: http://technet.microsoft.com/en-us/library/dd630633(v=ws.10).aspx STEP 3 Click Assign Memory in the left navigation, enter the amount of RAM to allocate to this virtual machine, and click Next. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
  • Page 24 Next. STEP 6 Cllick Installer Options in the left navigation, select the Operating System installation media, and click Finish. drobo.com | Deploy Drobo B1200i with Microsoft Hyper-V Clustering...
