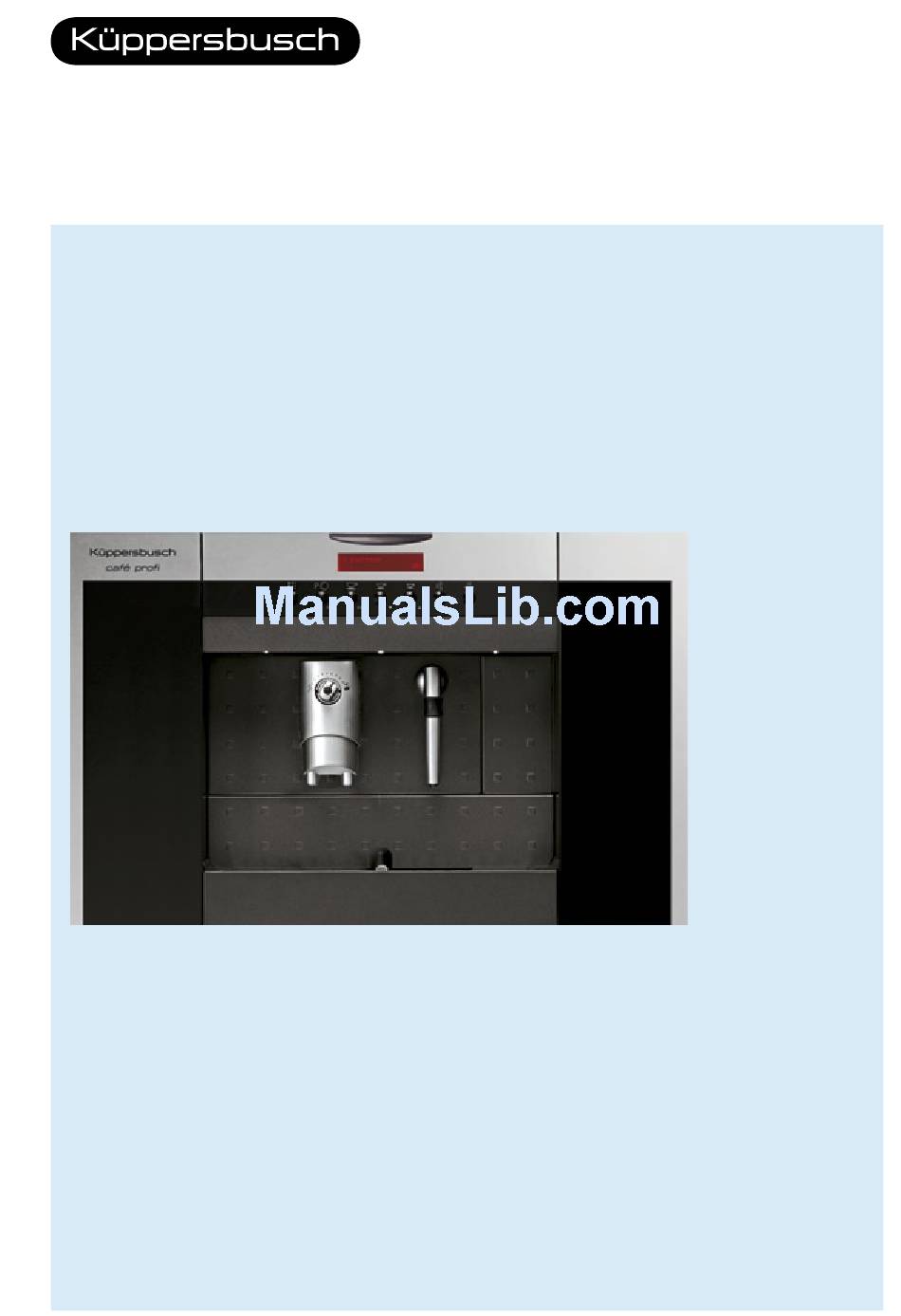

- Page 1 café profi Operating instructions...
-
Page 2: Symbols Used
Ñ Denotes steps that must be taken in sequence Denotes a listing Denotes useful tips Scope These operating instructions apply to the following models: Model ID code EKVW6600 702927 Variations in the model are referred to in the text. -
Page 3: Table Of Contents
Contents Safety instructions ..........Description of appliance Operating- and display elements . - Page 4 Safety instructions The appliance is designed in accordance with acknowledged rules applicable to engineering and the relevant safety regulations. To prevent damage and accidents however, proper handling of the appliance is a precondition. Please observe these operating instructions. They must be kept safely and passed on to future owners.
- Page 5 Safety instructions Dangers The appliance must not be used by children and persons not trained in the use of the appliance. The appliance is dangerous to children. Keep children away from the appliance. Switch off the appliance when unattended. Keep packaging material out of the reach of children. Do not point the steam-/hot water nozzle at yourself or others (danger of scalding).
-
Page 6: Operating- And Display Elements
Description of appliance Operating- and display elements To open panel, press rod handle Select product Ready for use Rod handle Operating panel (can be folded out) AromaControl Nozzle Coffee spout Service door Drip tray Coffee-grounds container Drip mesh Display «Drip tray» Operating panel (can be folded out) Select product Ready for use... -
Page 7: Behind The Operating Panel
Description of appliance Behind the operating panel Bean container Connection to water tank Connection to direct water supply Main switch Water tank Behind the service door Grinder setting Brewing group Accessories Brush Drip guard Water filter Water-hardness Coffee-oil test strip solvent Further accessories required can be obtained from Customer Services. -
Page 8: Water Hardness
Initial Operation Water hardness Range/User settings Degree of hardness 1 Degree of hardness 2 Degree of hardness 3 Degree of hardness 4 Water-hardness test strip 0–7 7–14 14–21 above 21 corresponds to German degree of hardness [˚dH] corresponds to French degree of hardness [˚fH] 0–12.5 12.5–25 25–37 .5... -
Page 9: Filling Coffee Beans
Initial Operation Filling coffee beans Ñ Ñ Ñ Remove bean container Fill with coffee beans Insert bean container (max. 300 g) Switching on the appliance Ñ Ñ Switch on appliance at Close operating panel. «Ventilate» main switch appears on plain text display For language settings, see User Settings/Programming. - Page 10 User Settings/Programming symbol blinking on the plain text display denotes the user setting selected. Start Function Settings Ñ Ñ Ñ Cancel by pressing «ESC» Select Confi rm Select Confi rm Cancel Standby Energy saving The appliance switches over to energy-saving mode. Rinsing On - Off Rinsing...
-
Page 11: Factory Settings
User Settings/Programming Ñ Ñ Ñ Start Function Settings Cancel by pressing «ESC» Select Confi rm Select Confi rm Cancel Aroma of espresso Aroma espresso Mild - Normal - Strong Selecting the amount of ground coffee for espresso. Aroma of coffee Aroma coffee Mild - Normal - Strong Selecting the amount of ground coffee for coffee. -
Page 12: Aromacontrol
Preparing coffee Espresso Energy saving Can be cancelled by Hot water and steam can scald! Point nozzle at drip tray! pressing key Place 1 or 2 cups below spout Espresso Ñ Preheat cups Ñ For large cups: push coffee spout up Select pr Ready fo AromaControl... -
Page 13: Cappuccino
Cappuccino After starting the steam operation, some condensed water will be produced at fi rst. Put the milk into a suitable vessel. Cappuccino Cold milk froths better ■ Fill vessel no more than one third ■ Steam Start steam Dispensing... roduct or use Caution: steam spray! -
Page 14: Hot Water
Drawing hot water/steam Danger: hot water and steam can scald. Point nozzle at drip tray. Place cup under nozzle Ñ Hot water Drawing hot water Hot water Dispensing... Ñ Press key As soon as the required quantity has been reached Ñ... -
Page 15: Water Tank/Bean Container
Care and maintenance Clean appliance, brewing group and accessories weekly without detergent under the tap. Never wash appliance parts in the dishwasher, and never dry them in the oven or in the microwave. Water tank/Bean container Ñ Switch off appliance Ñ... -
Page 16: Coffee Spout
Care and maintenance Coffee spout Ñ Push back coffee spout, Ñ Open service door (push Ñ Push top button and pull push drip guard to button is behind cover). coffee spout forwards. AromaControl position. Clean without detergent under the tap. Ñ... - Page 17 Descaling Whenever plain text display shows Decalcify or as required. Suitable descaling agents Under no circumstances use vinegar, as appliance will otherwise be damaged. Use commercially available descaling agents that are suitable for this appliance. If the appliance is switched off during descaling, then descaling will continue after the appliance is switched on again.
- Page 18 Descaling Rinsing Press key to cancel and continue the procedure Rinse machine Press water key Rinsing is complete as soon as the plain text display indicates Rinsing finished Press water key Ñ Press key Ñ Thoroughly rinse water Ñ Press key Rinsing begins tank Ñ...
- Page 19 Cleaning cycle Before starting cleaning cycle, empty drip tray and have a spare vessel handy. Large amounts of water will be produced (approx. 8.5 dl), therefore watch vessel closely. Clean your appliance every fortnight or after every 250 cups to ensure trouble-free operation.
-
Page 20: Energy Saving
Rectifying faults yourself Problem Remedy Page Ñ Turn on main switch Appliance does not switch ■ Ñ Check power connection Ñ Check fuse in interior installation of building Ñ Preheat cups with hot water Coffee is not hot enough ■ Ñ... - Page 21 Rectifying faults yourself Message Remedy Brewunit blocked Ñ Insert brewing group correctly Dregdrawer missing Ñ Insert drip tray/coffee-grounds container correctly Close door Ñ Close service door Ventilate Ñ Vent system (during initial use). Press key Brewunit blocked Ñ Call Customer Service Grinder blocked Ñ...
- Page 22 Disposal Packaging The packaging material (card, polyethylene plastic film and expanded polystyrene) is labelled, and if possible should be recycled and disposed of in an environmentally friendly manner. Uninstalling Isolate appliance from mains. Where the appliance is immovably fixed, this must be under taken by a certified electrician! Safety To prevent accidents through improper use, especially where children are playing, the...
- Page 23 Küppersbusch Customer Service Please note: For our Customer Service to be able to make careful preparation for repairs and to provide the necessary spares, we will require the following information should you have any claim on Customer Services: 1. Your full address 2.
- Page 24 Household appliances Headquarters for requesting customer services and spares Germany We are open Küppersbusch Hausgeräte AG Monday to Thursday from 7 .30 to 18.00 Küppersbuschstrasse 16 Friday from 7 .30 to 17.00 D-45883 Gelsenkirchen Saturday from 9.00 to 13.00 Phone: 01 80 - 5 25 65 65 Outside office hours please forward your Fax: (02 09) 4 01 - 7 14/7 15...
