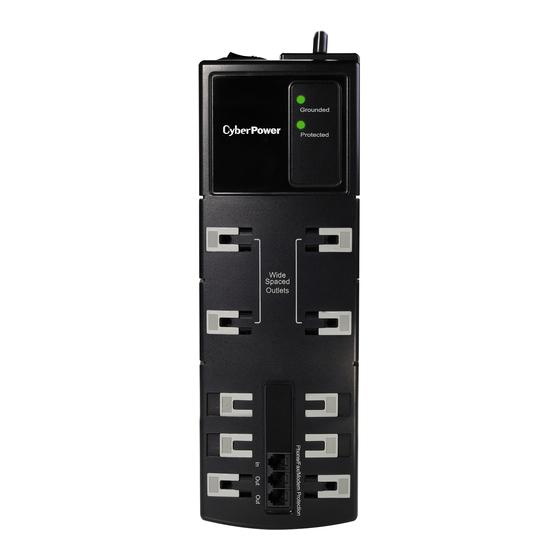

CyberPower B1006T User Manual

10-Outlet Surge Protector
B1006T
1
User Manual
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower B1006T Surge
Protector. The information contained in this brochure explains
the features and operation of the B1006T. Please take a few
moments to read this manual.
FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15A breaker.
When an overload occurs, it will automatically switch off. To
resume operation, ensure the overload condition is removed
2
and reset the surge protector by switching the unit ON.
2. Grounded LED Indicator
3
Illuminated when a properly grounded AC outlet is detected.
3. Surge Protected Indicator
Illuminated when the surge protection feature is
working properly.
4. Safety Covers
All outlets on this surge protector include safety covers. To
ensure the safety of children and to avoid electric shock and
damage from a high-dust environment, slide the plastic outlet
cover over outlets that are not used.
4
5. Four Wide-Spaced Outlets
Easily plug in large chargers without interfering with the
other outlets.
5
6. Protecting Phones/Fax/Modems
To protect your equipment from surge along phones/fax/
modems lines.
A. Connect the phone line from wall outlet into the "In" port.
B. Connect the phones/fax/modems line(s) in the "Out" ports.
SPECIFICATIONS
• Model Number: B1006T
• Outlets: 10 – 4 Transformer Spaced
• Surge Protection: 2850 Joules
• Communication Protection: RJ11 1-In / 2-Out
• Electrical Rating: 125V/15A/1875W
• Maximum Peak Current: 135,000A
• UL Clamping Voltage: UL 1449 3
400V (L-G, N-G)
6
• EMI/RFI Filtration: 150 kHz to 100 MHz
CAUTION
TO REDUCE RISK ELECTRIC SHOCK - Use only in dry
locations and only indoors. DO NOT plug into another relocat-
able power tap. DO NOT "daisy chain" surge protectors. DO
NOT use with any aquarium equipment. DO NOT use if properly
grounded outlets are not available. DO NOT install this device if
there is not at least 10 meters (30 feet) or more of wire between
the electrical outlet and electrical service panel. This device
features an internal protection that will disconnect the surge
protective component at the end of its useful life, but will
maintain power to the load – now unprotected.
TROUBLESHOOTING
If the ON/OFF is switched off, the 15 AMP circuit breaker may
have tripped. Examine your connected equipment and remove
the device that is overloading the circuit. Then, the ON/OFF
switch back to RESET.
If the Grounded indicator does not light when you plug in the
surge protector, move the surge protector to a different
grounded three-prong AC outlet. If it still does not light, return
the product to the dealer for assistance. If the surge protector
proves to be working properly, your outlets may not be properly
grounded and need to be repaired by a professional electrician.
If the Grounded indicator turns off after a period of use, the
surge protection has been depleted. Replace your
surge protector.
If the Protected indicator does not light, the surge protector's
AC line is no longer protected from surges. Replace the surge
protector. The surge protector may have received a power
surge or spike beyond its specified limits that might overload
the protection circuitry and make it inactive. The surge
protector absorbed enough of the surge to protect your
connected equipment, but it will not protect against future
surges and spikes.
TECHNICAL SUPPORT
rd /330V (L-N),
Please contact our Tech Support department with installation,
troubleshooting, or general product questions.
• Phone: 1-877-297-6937
• Email: tech@cpsww.com
• Hours of Operation: Monday – Friday, 8:00am – 5:00pm CST
